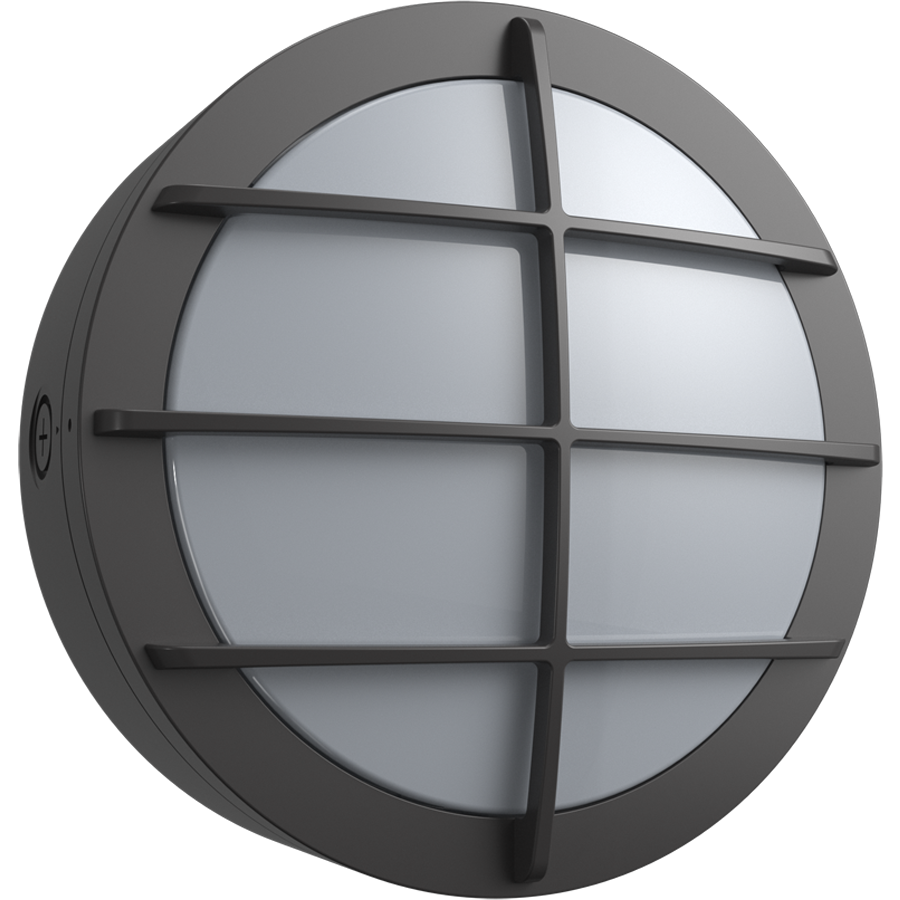

BULKH40R/E

40W 3000K/4000K/5000K

100,000-hour LED Life

On/Off photocell

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	40/32/24W
Color Temp	3000K/4000K/5000K
Lumens	2305-3875 lm
Efficacy	88.4-107.9 lm/W
Color Accuracy	84-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.33A/0.26A/0.20A
208V	0.21A/0.17A/0.14A
240V	0.18A/0.15A/0.12A
277V	0.15A/0.13A/0.11A
Input Watts	23.4-40W

EZ-Layout

Create Custom Lighting Layout

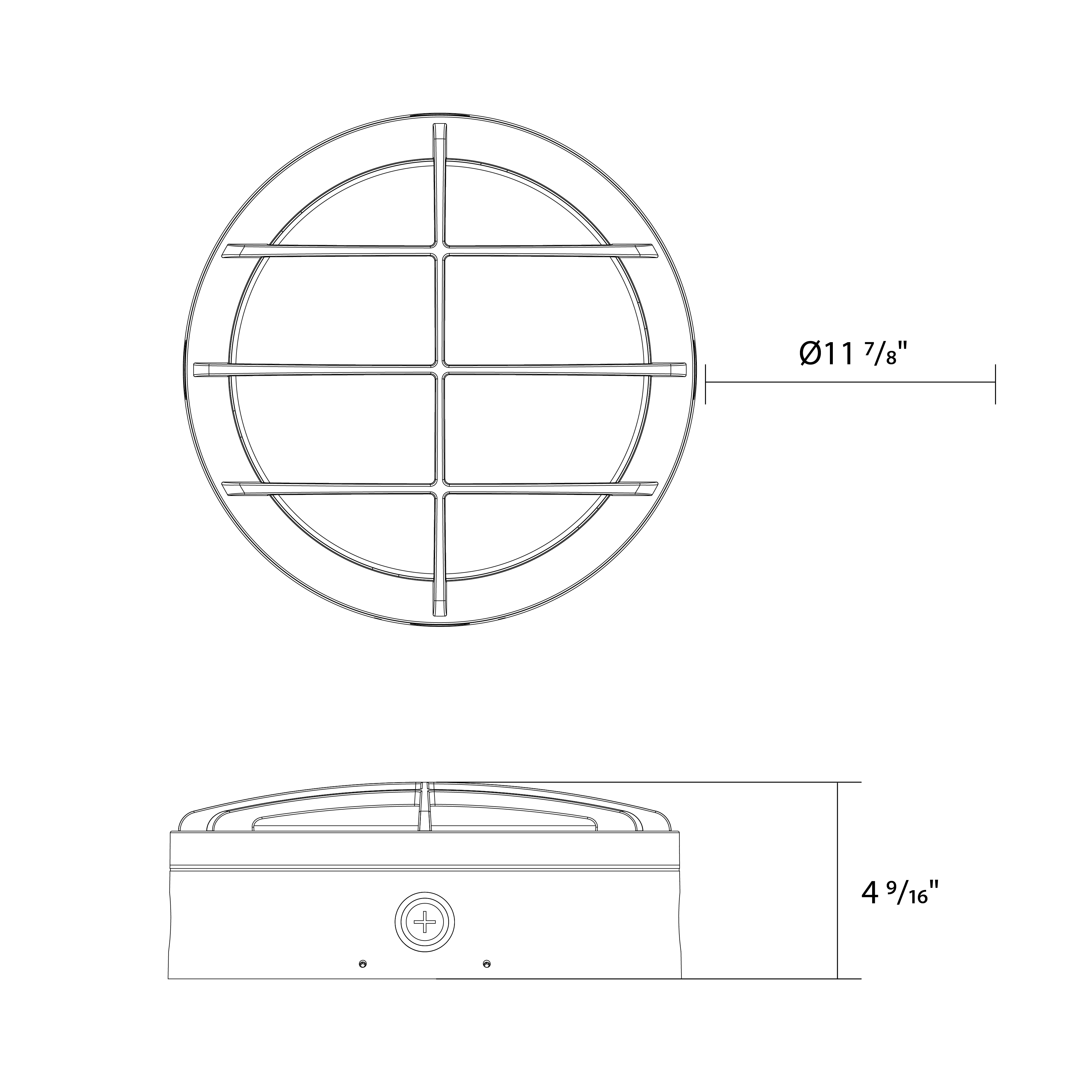

Dimensions

Weight: 7.5 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
40W/32W/24W (factory default 40W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 5000K)
On/Off Photocell (factory default "On")

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Dim to Off

Photocell

120-277V selectable photocell that can be turned on and off.

Surge Protection

2 kV

Emergency Characteristics

Cold Weather Starting w/Battery Backup

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature w/Battery Backup

Suitable for use in up to 113°F (45°C)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Construction

Housing

Die-cast aluminum

Lens

Glass

Gaskets

High-temperature silicone

Shape

Round

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Wall mount

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
