• Easy, secure floodlight mounting
  • Double Reinforced weld joints
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 34.9 lbs

Technical Specifications
Construction
Finish
Formulated for high durability and long-lasting color

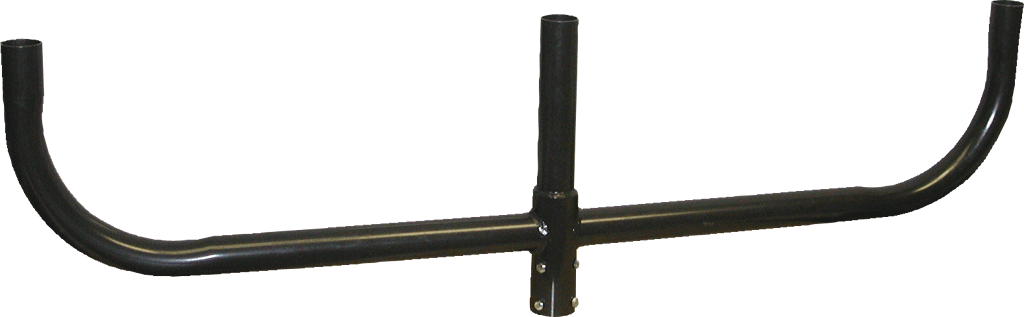

Bullhorns
3 tenons for slip fitters. Bullhorns fit 2 3/8" (6cm) O.D. tenons and accommodate 2 3/8" (6cm) slip fitters. Steel tubing.150" and.200" thick welded with (4) 3/8" bolts for securing to pole.
Slipfitters & Wall Brackets
3/16" thick steel with 1/2" nuts and bolts
Bracket EPA
2.0.
Weight
25.6 lbs
Maximum Weight Capacity
90 lbs per arm.
EPA Maximum Capacity
4.0 per arm
Other
Patents
The designs of fixtures are protected under U.S. and international intellectual property laws.
