• Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
  • Easy to install on compatible 5-Pin Sensor Port HID Replacement lamps
  • Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more.
  • Plug in aux sensors allow for simple Bluetooth Mesh wireless-networked controls like occupancy and daylight harvesting
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 0.1 lbs

Technical Specifications
Performance
Product Type
Bluetooth-enabled Controller
Description
Plug in aux controller with integrated sensor allow for simple Bluetooth Mesh wireless-networked control via the Lightcloud Blue mobile app.
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Up to 60 ft between standard building materials. Up to 200 ft clear line of sight.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp flashes 3x, then resets to 100% brightness at the default CCT.
Electrical
Max Mounting Height
39 ft
Detection Range
32 ft diameter mounted at 39 ft
Input Voltage
12V
Sensor Settings
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off

Commissioned State:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off
Sensing Type
Occupancy or Vacancy
Occupied Actions
On or On at a Dim Level
Vacant Options
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.
Daylight Threshold
150 lux to 1500 lux
Construction
Finish
White
Bulb Shape
Round
Enclosure Material
Polycarbonate
Compliance
Listings
UL Listed
DLC NLC Listed
This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Not Compliant
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Compatible Products
Any HID replacement lamp with a 5-Pin Auxilary Sensor Port
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Recently Viewed Products

 This is a link to the product CONTROL/W/AUX/5SP/LCBS/MVS CONTROL/W/AUX/5SP/LCBS/MVS
Lc Blue 5-Pin Plug-In Controller + Mvs + Pc Sensor
 This is a link to the product ALED3T125SFYK/480/D10/WS4 ALED3T125SFYK/480/D10/WS4

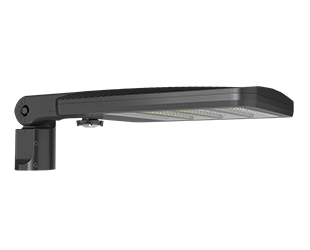

Arealights 14218 Lumens Aled Type Iii Slipfitter 3000K 125W 480V 0-10V Dimming Multi-Level Sensor With 40 Feet Lens Black
