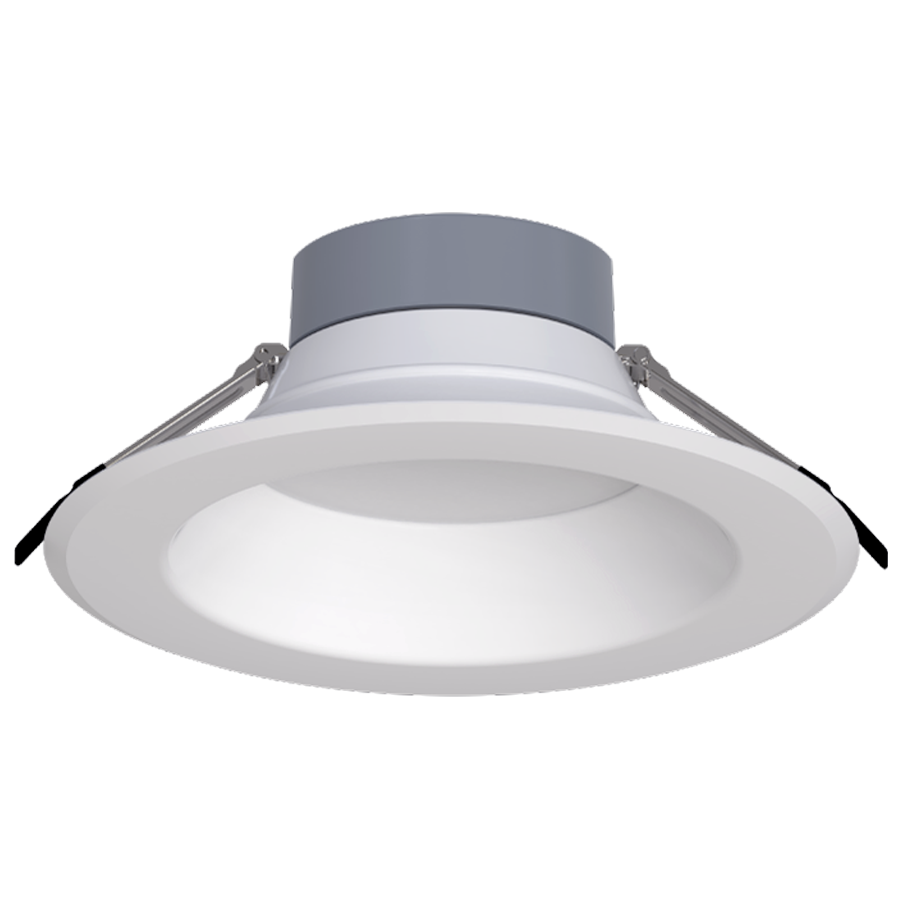

CR10

Universal dimming technology allows for both 120V TRIAC/ELV dimming and 0-10V dimming in 1 SKU for incredible design flexibility

3 selectable brightness levels & 5 selectable CCTs (2700/3000/3500/4000/5000K)

Suitable for new construction & remodel installations

Deep regress lens for optimal glare control

Multiple accessories available, including color trims and new construction mounting plates

View Technical Specs

View Price & Availability

Performance

Watts	37/30/24W
Color Temp	2700/3000/3500/4000/5000K
Lumens	4,200/3,500/2,800 lm
Efficacy	129/133.4/136.9 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class A
120V	0.35A
208V
240V
277V	0.17A
Input Watts	37/30/24W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.6 lbs

Technical Specifications

Performance

Product Type

Commercial Downlight

Description

The CR commercial downlight offers best-in-class flexibility by adding universal dimming, which allows for both TRIAC & 0-10V dimming, making it a great choice for residential & commercial installations.

Wattage Equivalency

100W CFL

Input Wattage

37/30/24W

Lumens

24W
2,851lm @ 2700K; 2,929lm @ 3000K; 3,021lm @ 3500K; 3,075lm @ 4000K; 3,105lm @ 5000K

30W
3,582lm @ 2700K; 3,697lm @ 3000K; 3,827lm @ 3500K; 3,900lm @ 4000K; 3,908lm @ 5000K

37W
4,502lm @ 2700K; 4,665lm @ 3000K; 4,856lm @ 3500K; 4,954lm @ 4000K; 4,924lm @ 5000K

Efficacy

24W
122lm/W @ 2700K; 125lm/W @ 3000K; 130lm/W @ 3500K; 132lm/W @ 4000K; 133lm/W @ 5000K

30W
121lm/W @ 2700K; 124lm/W @ 3000K; 130lm/W @ 3500K; 132lm/W @ 4000K; 131lm/W @ 5000K

37W
123lm/W @ 2700K; 127lm/W @ 3000K; 134lm/W @ 3500K; 136lm/W @ 4000K; 134lm/W @ 5000K

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.35A, 277V: 0.17A

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV and 0-10V dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

350mA

Input Current @ 277V (mA)

170mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

85°±10°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed

Construction

Size

10"

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Housing certified Air Tight as per ASTM-E283

Energy Star Approved

This product is ENERGY STAR® Version 1.0 Certified.

Energy Star ID

3554280

DLC Listed

Certification Model Number

DLC1009(CR10)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

DRI-21-EMGR-DC-D10
Emergency driver T20

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
