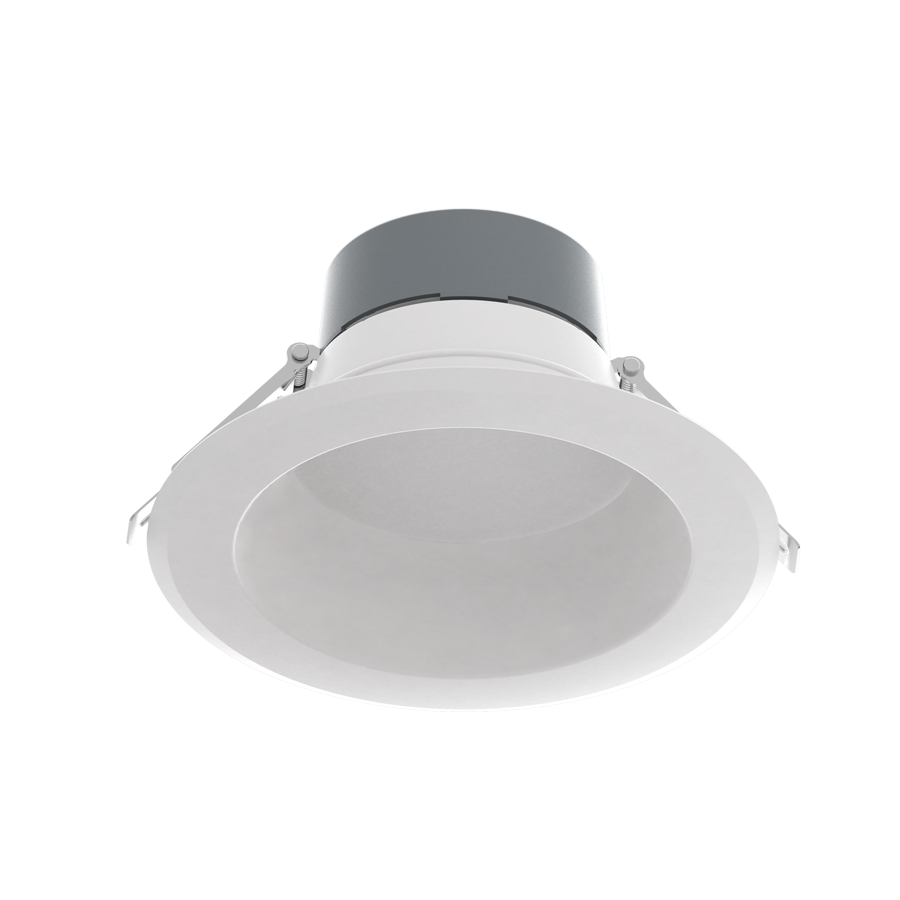

CRLEDFA-8R-33S-9CCT-UNV-WS

Spec Sheet IES File Dimmer Compatibility List Downlight Accessory Compatibility List LM79 Instructions Cut Out Template Spec Sheet EZ Layout

Mounts directly into ceiling, no housing required

Field-adjustable "set and forget" color temperature

High-performance LEDs for commercial applications

Meets air-tight requirements

0-10V dimming, see Dimmer Compatibility List

Suitable for wet and damp locations

Replacement for traditional compact fluorescent recessed downlights

View Technical Specs

View Price & Availability

Performance

Watts	33/29/25W
Color Temp	3000K/3500K/4000K/5000K
Lumens	3000/2700/2400 lm
Efficacy	91/93/96 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	.30A
208V	.16A
240V	.14A
277V	.13A
Input Watts	33/29/25W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.7 lbs

Technical Specifications

Performance

Product Type

Commercial Downlight

Description

Wattage and CCT selectable commercial downlights for new construction and retrofit applications.

Wattage Equivalency

2x23W CFL/2x17W CFL

Input Wattage

33/29/25W

Lumens

33W: 3000K @ 3,000lm; 3500K @ 3,080lm; 4000K @ 3,080lm; 5000K @ 3,040lm
29W: 3000K @ 2,700lm; 3500K @ 2,750lm; 4000K @ 2,750lm; 5000K @ 2,720lm
25W: 3000K @ 2,400lm; 3500K @ 2,460lm; 4000K @ 2,460lm; 5000K @ 2,430lm

Efficacy

33W: 3000K @ 91lm/W; 3500K @ 93lm/W; 4000K @ 93lm/W; 5000K @ 92lm/W
29W: 3000K @ 93lm/W; 3500K @ 95lm/W; 4000K @ 95lm/W; 5000K @ 94lm/W
25W: 3000K @ 96lm/W; 3500K @ 98lm/W; 4000K @ 98lm/W; 5000K @ 97lm'W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.30A, 277V: 0.13A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, 0-10V dims down to 10%. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

300mA

Input Current @ 208V (mA)

160mA

Input Current @ 240V (mA)

144mA

Input Current @ 277V (mA)

127mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

≤30%

Color Temperature

Field Adjustable via dip switch 3000/3500/4000/5000K

LED Characteristics

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than or equal to 50

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use in dry, damp, and wet environments.

IC Rated

Air Tight

Housing certified Air Tight as per ASTM E283

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified.

Energy Star ID

2389592

DLC Listed

No.
There is no product category on the Design Lights Consortium (DLC) Qualified Products List for this lamp to qualify under.

Certification Model Number

DLC0056(CRLEDFA-8R-33S-9CCT-UNV-WS)

T20 Compliant

Not compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Accessories

DLPLATE/C3468R/NB
DLPLATE/WFR3468/NB
Mounting Plate w/nailer bar

DL8-10GOOF/R/P/CRLEDFA
Commercial Downlight 8"-10" Goof Ring

DL8-12GOOF/R/P/CRLEDFA
6" Commercial Downlight 8"-12" Goof Ring

DLTRIM/CRLEDFA8R-BNS
8" Smooth Brushed Nickel Color Trim

DLTRIM/CRLEDFA8R-BRS
8" Smooth Bronze Color Trim

DLTRIM/CRLEDFA8R-BS
8" Smooth Black Color Trim

DRI-21-EMGR-DC-D10
Emergency backup driver

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
