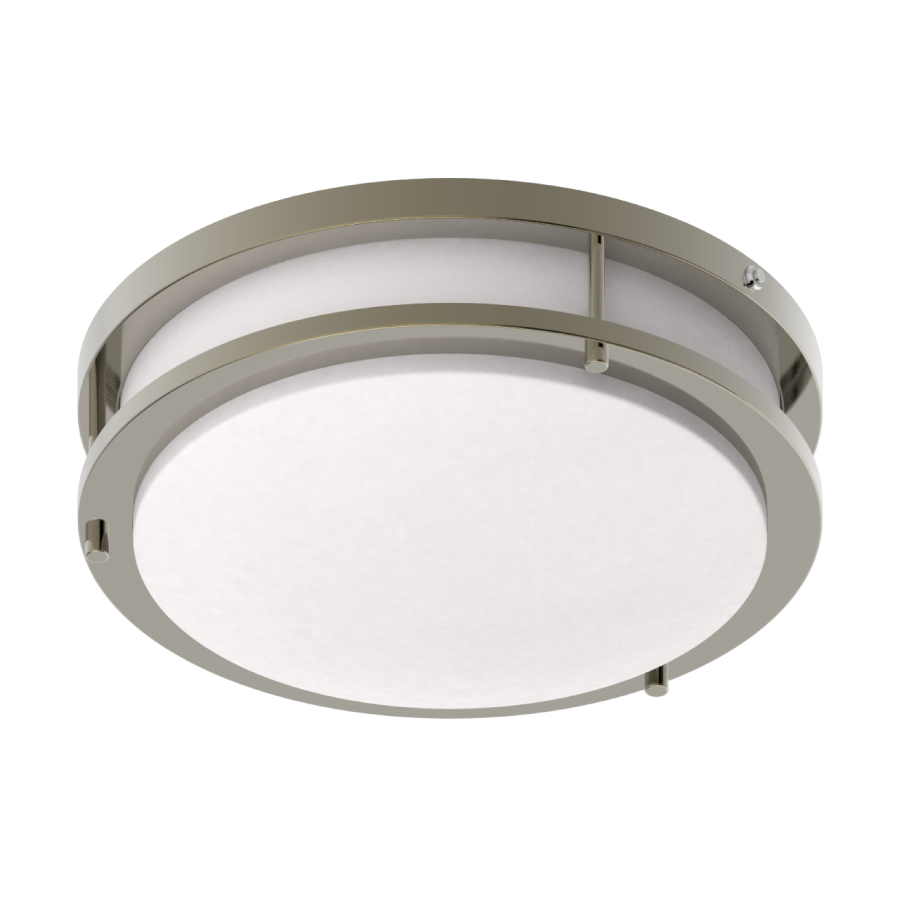

CRVFAD-12R-16-9CCT-UNVT-BN/EM
CRVFAD-12R-16-9CCT-UNVT-BN/EM
- Surface mount to ceiling or wall
- Field-adjustable "set and forget" color temperature
- Decorative twin-ring design makes fixture ideal for residential applications
- Ideal for hospitality and multi-family residential applications
- Suitable for wet and damp locations
Performance
| Watts | 16W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,120 lm |
| Efficacy | 70 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.15A |
| 208V | 0.09A |
| 240V | 0.07A |
| 277V | 0.06A |
| Input Watts | 16W |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Performance
Product Type
Flush Mount
Description
5-CCT selectable, back-lit LED retrofit fixture with decorative ring. Installs on standard junction boxes. Dimmable models available for 0-10V or TRIAC dimming systems with optional microwave sensor and/or integrated emergency battery backup.
Wattage Equivalency
75W Incandescent
Input Wattage
16W
Lumens (Nominal)
1,120lm
Efficacy
70lm/W
Lumens (Measured)
1159lm @ 2700K; 1290lm @ 3000K; 1347lm @ 3500K; 1357lm @ 4000K; 1289lm @ 5000K
Lifespan
50,000-Hour LED lifespan based on IESlm-70 results
Electrical
Driver
Constant Current, Class 2
THD
<20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
150mA
Input Current @ 208V (mA)
85mA
Input Current @ 240V (mA)
73mA
Input Current @ 277V (mA)
63mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Emergency Operation
90 minutes
LED Characteristics
Beam Angle
120°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface mount
Construction
Size
12"
Shape
Round
Finish
White w/brushed nickel ring
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
DLC Listed
No
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
CRVFA-CONVERTIBLE-KIT
Pendant mount kit for CRVFA
Pendant mount kit for CRVFA
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
