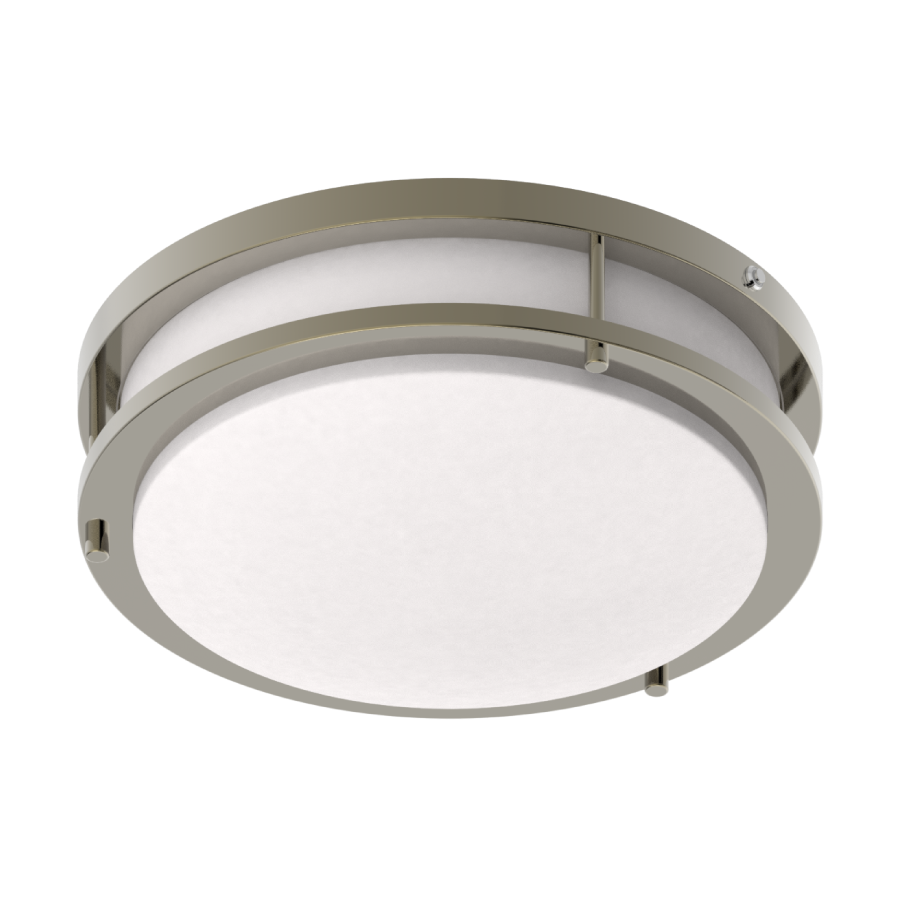

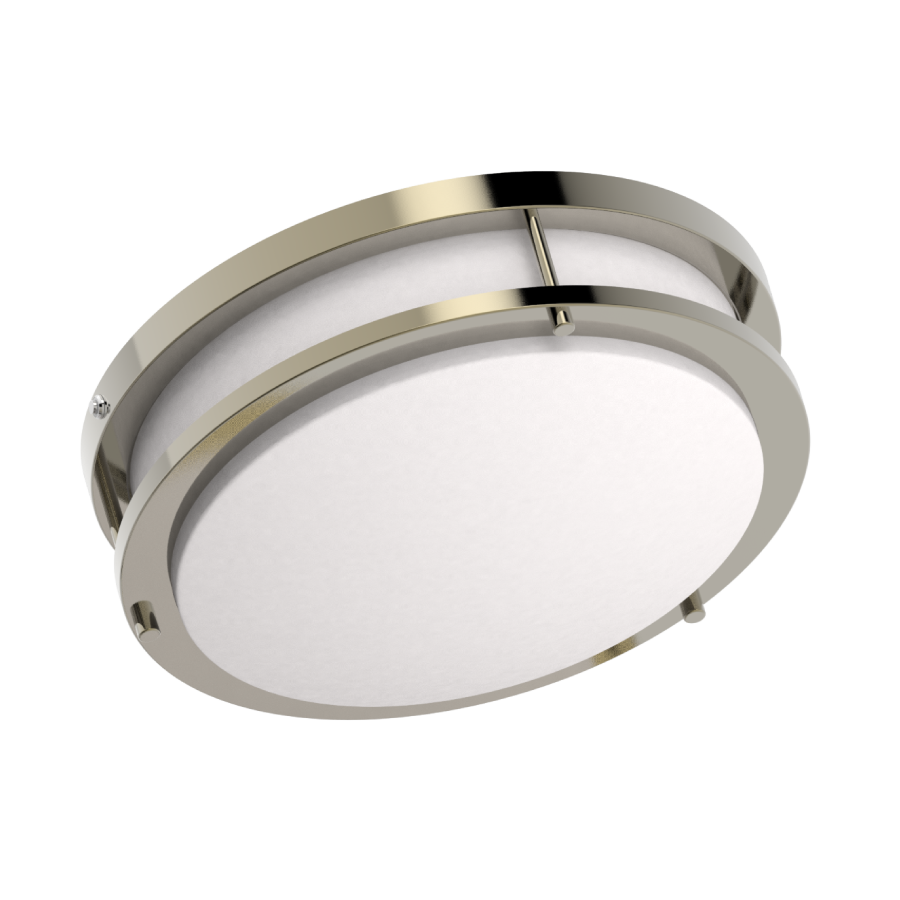

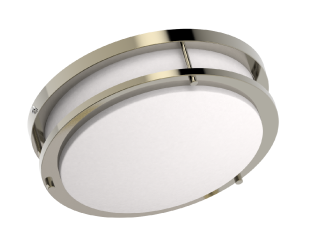

CRVFAD-12R/MVS/EM
CRVFAD-12R/MVS/EM
- Surface mount to ceiling or wall
- Field-adjustable "set and forget" color temperature
- Decorative twin-ring design makes fixture ideal for residential applications
- Ideal for hospitality and multi-family residential applications
- Suitable for wet and damp locations
Performance
| Watts | 17W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,150 lm |
| Efficacy | 55 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.18A |
| 208V | 0.11A |
| 240V | 0.10A |
| 277V | 0.09A |
| Input Watts | 17W |
Dimensions
Weight: 3.3 lbs
Technical Specifications
Performance
Product Type
Flush Mount
Description
5-CCT selectable, back-lit LED retrofit fixture with decorative ring. Installs on standard junction boxes. Dimmable models available for 0-10V or TRIAC dimming systems with optional microwave sensor and/or integrated emergency battery backup.
Wattage Equivalency
75W Incandescent
Input Wattage
17W
Nominal Lumens
1,150lm
Efficacy
55lm/W
Measured Lumens
1159lm @ 2700K; 1290lm @ 3000K; 1347lm @ 3500K; 1357lm @ 4000K; 1289lm @ 5000K
Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2
THD
20%
Power Factor
>0.9@120V
Dimmable
Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-277V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
180mA
Input Current @ 208V (mA)
105mA
Input Current @ 240V (mA)
95mA
Input Current @ 277V (mA)
85mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Emergency Operation
90 minutes
Battery Recharge Time
24 hours
Sensor Settings
Sensor Connection Type
Integrated, behind the lens
Max Mounting Height
9 ft
Detection Range
20 ft diameter at 9 ft mounting height
Sensor Technology
Microwave (MVS)
Default Setting
30 second timeout
Adjustable Sensor Settings?
Yes, using MSR1 remote.
Sensing Type
Occupancy, Vacancy
Occupied Actions
On at 100% dim level
Vacant Actions
Off
Occupancy Timeout
30 seconds
LED Characteristics
Beam Angle
120°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface mount
Construction
Size
12"
Shape
Round
Finish
White w/brushed nickel ring
Enclosure Material
Metal
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
No
DLC Listed
No
Certification Model Number
DLS0184(CRVFAD-12R/MVS/EM)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
CRVFA-CONVERTIBLE-KIT
Pendant mount kit for CRVFA
Pendant mount kit for CRVFA
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
