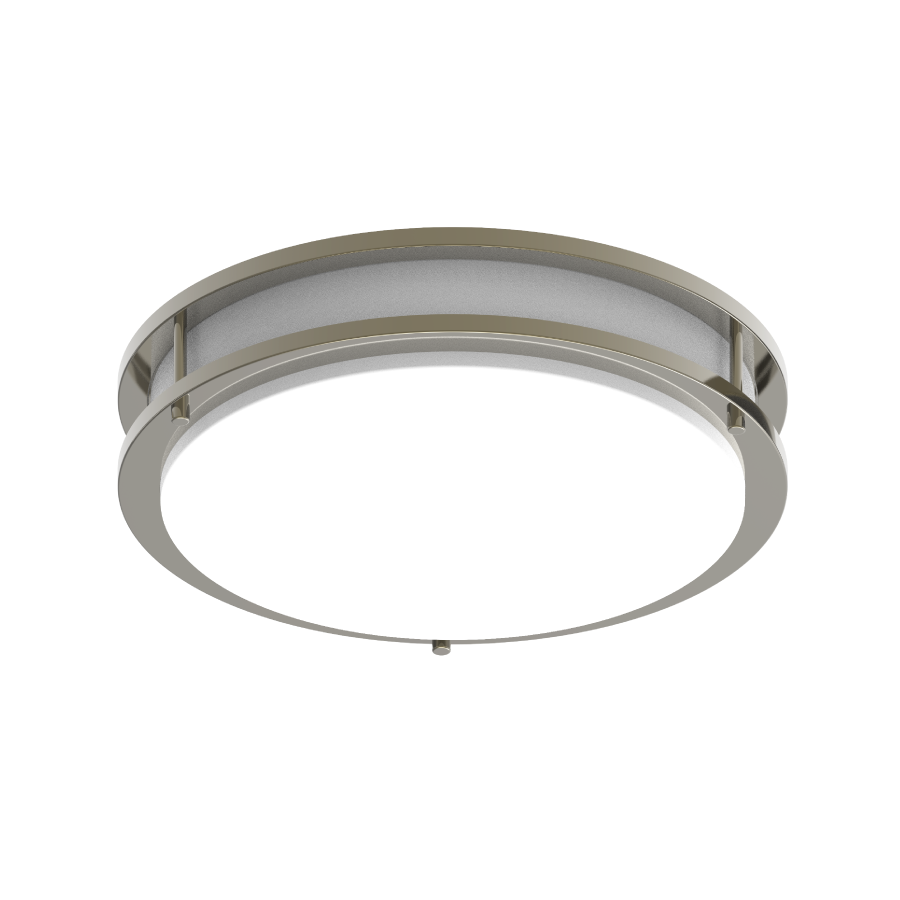

CRVFAD-14R-20-9CCT-UNV-BN/MVS

Spec Sheet IES File Dimmer Compatibility List Downlight Accessory Compatibility List LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

Surface mount to ceiling or wall

Field-adjustable "set and forget" color temperature

Decorative twin-ring design makes fixture ideal for residential applications

Ideal for hospitality and multi-family residential applications

Suitable for wet and damp locations

View Technical Specs

View Price & Availability

Performance

Watts	20W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,400 lm
Efficacy	70
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.19A
208V	0.11A
240V	0.09A
277V	0.08A
Input Watts	20W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.9 lbs

Technical Specifications

Performance

Product Type

Flush Mount

Description

5-CCT selectable, back-lit LED retrofit fixture with decorative ring. Installs on standard junction boxes. Dimmable models available for 0-10V or TRIAC dimming systems with optional microwave sensor and/or integrated emergency battery backup.

Wattage Equivalency

125W Incandescent

Input Wattage

20W

Nominal Lumens

1,400lm

Efficacy

70lm/W

Measured Lumens

1435lm @ 2700K; 1593lm @ 3000K; 1678lm @ 3500K; 1689lm @ 4000K; 1604lm @ 5000K

Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

185mA

Input Current @ 208V (mA)

107mA

Input Current @ 240V (mA)

90mA

Input Current @ 277V (mA)

78mA

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Sensor Settings

Sensor Connection Type

Integrated, behind the lens

Max Mounting Height

9 ft

Detection Range

20 ft diameter at 9 ft mounting height

Sensor Technology

Microwave (MVS)

Default Setting

30 second timeout

Adjustable Sensor Settings?

Yes, using MSR1 remote.

Sensing Type

Occupancy, Vacancy

Occupied Actions

On at 100% dim level

Vacant Actions

Off

Occupancy Timeout

30 seconds

LED Characteristics

Beam Angle

130°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Surface mount

Construction

Size

14"

Shape

Round

Finish

White w/brushed nickel ring

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

DLC Listed

Certification Model Number

DLS0106(CRVFAD-14R-20-9CCT-UNV-BN/MVS)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

CRVFA-CONVERTIBLE-KIT
Pendant mount kit for CRVFA

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
