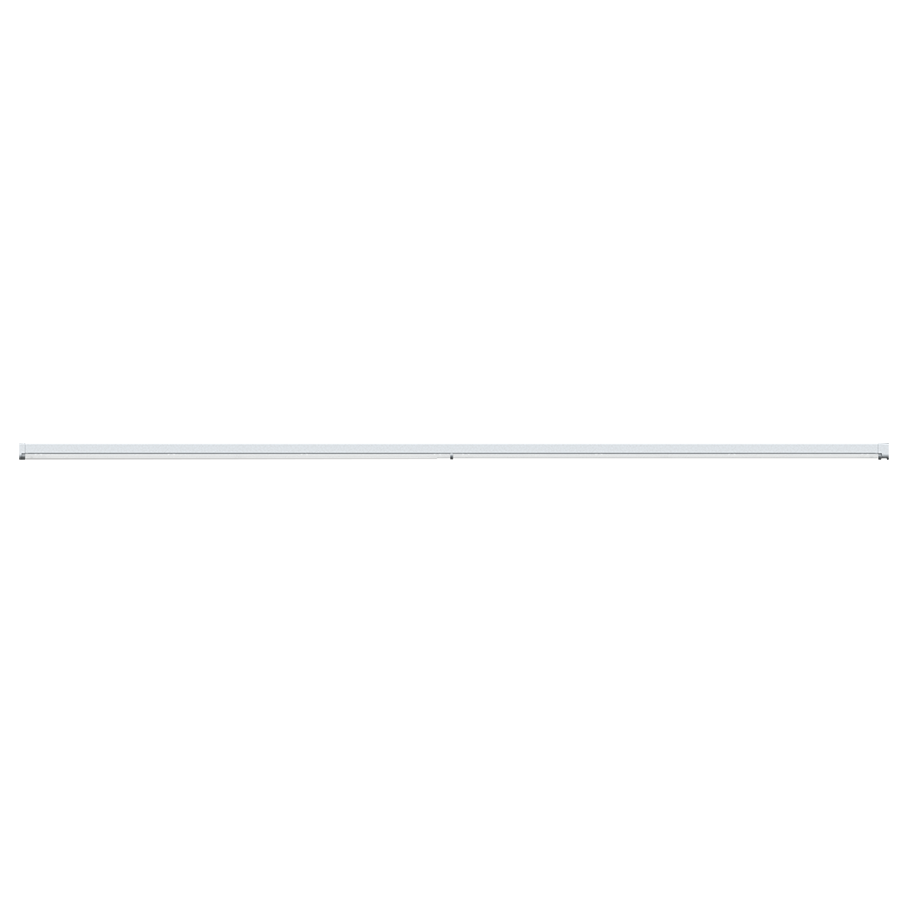

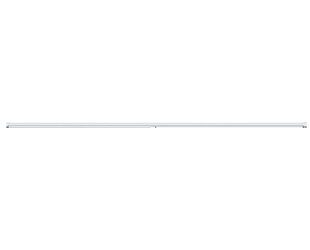

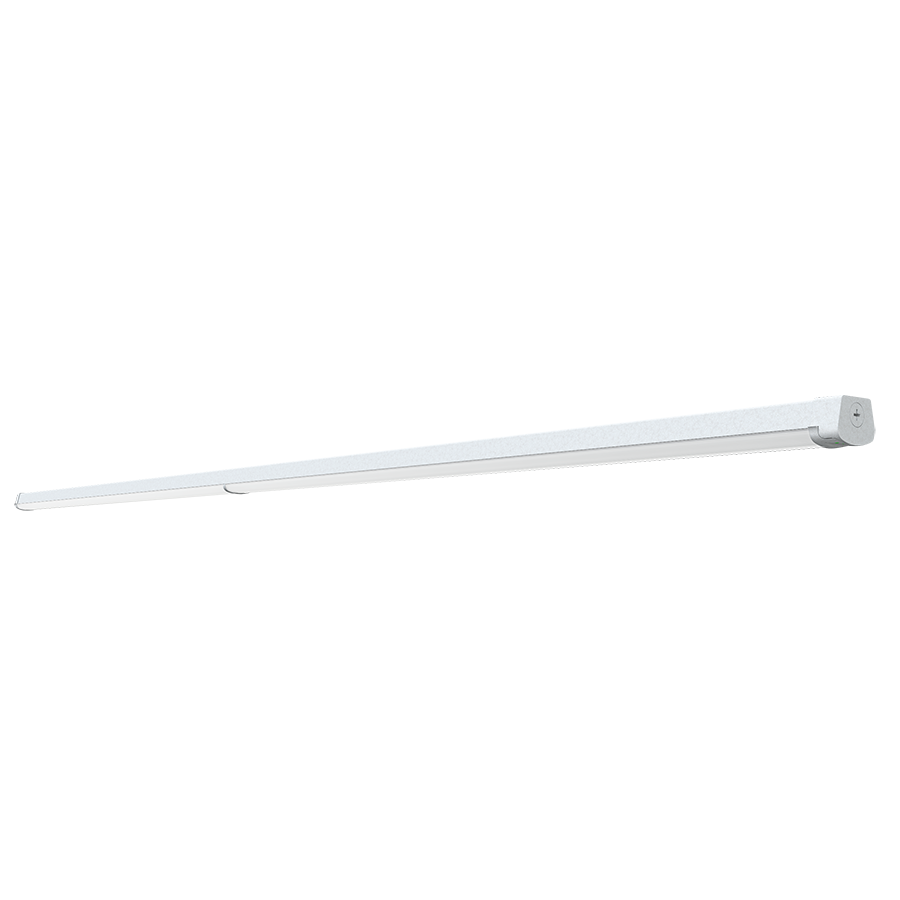

CS8/E

88W 3500/4000/5000K

0-10V Dimming, standard

100,000-hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	88/64/42W
Color Temp	3500/4000/5000K
Lumens	6,769-13,480 lm
Efficacy	145.4-158.9 lm/W
Color Accuracy	84-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.75A/0.54A/0.37A
208V	0.43A/0.31A/0.21A
240V	0.37A/0.27A/0.18A
277V	0.32A/0.24A/0.17A
Input Watts	43.3-89.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 7.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
8 ft: 88W/64W/42W (factory default 88W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

88W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.75A, 208V: 0.43A, 240V: 0.37A, 277V: 0.32A
64W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.54A, 208V: 0.31A, 240V: 0.27A, 277V: 0.24A
42W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.17A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.61% at 120V, 10.91% at 277V

Power Factor

99.8% at 120V, 97.9% at 277V

Surge Protection

DM: 1 kV
CM: 2 kV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

88W: 0.27
64W: 0.36
42W: 0.54

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

88W: Replaces up to (5) F32T8 or (3) F96T8
64W: Replaces up to (4) F32T8 or (2) F96T8
42W: Replaces up to (3) F32T8 or (1) F96T8

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Sustainable, biocomposite resin manufactured with coffee chaff, waste seashells, and recycled plastic.

Lens

Acrylic lens

Finish

Naturally occurring, beige, speckled pattern

Green Technology

Mercury free. Made with RoHS-compliant components and biorenewable components.

Installation

Mounting

Surface and suspended mount standard. End-to-end connections require conduit wiring.

Optical

BUG Rating

CS8 100%: B3 U3 G2
CS8 75%: B3 U3 G2
CS8 50%: B3 U3 G1

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
