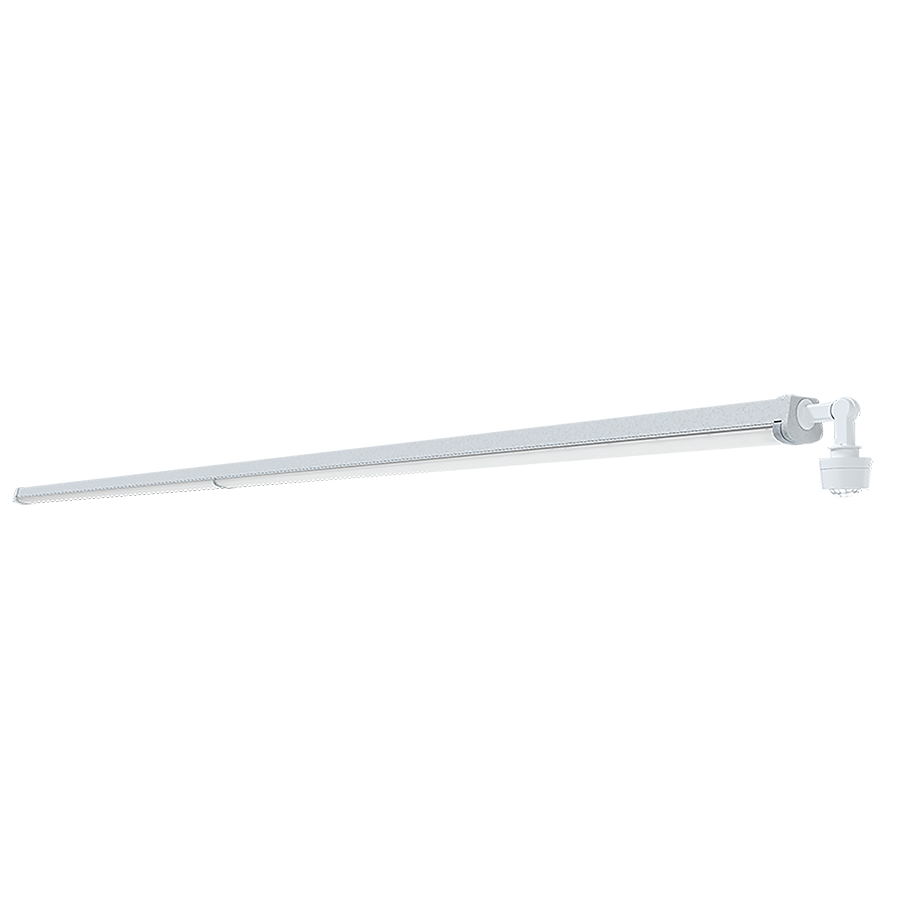

CS8/LCBS
CS8/LCBS
88W 3500/4000/5000K
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 88/64/42W |
| Color Temp | 3500/4000/5000K |
| Lumens | 6,769-13,480 lm |
| Efficacy | 145.4-158.9 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.75A/0.54A/0.37A |
| 208V | 0.43A/0.31A/0.21A |
| 240V | 0.37A/0.27A/0.18A |
| 277V | 0.32A/0.24A/0.17A |
| Input Watts | 43.3-89.6W |
Dimensions
Weight: 7.9 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
8 ft: 88W/64W/42W (factory default 88W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
8 ft: 88W/64W/42W (factory default 88W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Lightcloud
Lightcloud Blue Sensor Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete from Site'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete from Site'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Sensor Settings
Sensor Connection Type
Pogo pin
Max Mounting Height
40 ft
Detection Range
40 ft diameter mounted at 40 ft
Sensor Technology
Passive Infrared (PIR)
Sensor Mounting
Externally mounted to fixture using Right Angle Arm Support (RAAS[B}).
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Adjustable Sensor Settings?
Yes, using the Lightcloud Blue mobile app
Sensing Type
Occupancy or Vacancy (option to disable or set as an independent sensor)
Occupied Actions
On or On at a Dim Level
Vacant Actions
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.
Daylight Threshold
150 lux to 1500 lux
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-S98R2B (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-P7PZWS (Direct Linear Ambient Luminaires)
DLC Product Code: S-S98R2B (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-P7PZWS (Direct Linear Ambient Luminaires)
Electrical
Driver
88W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.75A, 208V: 0.43A, 240V: 0.37A, 277V: 0.32A
64W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.54A, 208V: 0.31A, 240V: 0.27A, 277V: 0.24A
42W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.17A
64W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.54A, 208V: 0.31A, 240V: 0.27A, 277V: 0.24A
42W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.17A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.61% at 120V, 10.91% at 277V
Power Factor
99.8% at 120V, 97.9% at 277V
Surge Protection
DM: 1Kv
CM: 2Kv
CM: 2Kv
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
88W: Replaces up to (5) F32T8 or (3) F96T8
64W: Replaces up to (4) F32T8 or (2) F96T8
42W: Replaces up to (3) F32T8 or (1) F96T8
64W: Replaces up to (4) F32T8 or (2) F96T8
42W: Replaces up to (3) F32T8 or (1) F96T8
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 50°C (122°F)
Housing
Sustainable, biocomposite resin manufactured with coffee chaff, waste seashells, and recycled plastic.
Lens
Acrylic lens
Finish
Naturally occurring, beige, speckled pattern
Green Technology
Mercury free. Made with RoHS-compliant components and biorenewable components.
Installation
Mounting
Surface mount and VHOOKs standard. Fixtures designed for end to end connection. Through wiring kit not included.
Optical
BUG Rating
CS8 100%: B3 U3 G2
CS8 75%: B3 U3 G2
CS8 50%: B3 U3 G1
CS8 75%: B3 U3 G2
CS8 50%: B3 U3 G1
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
