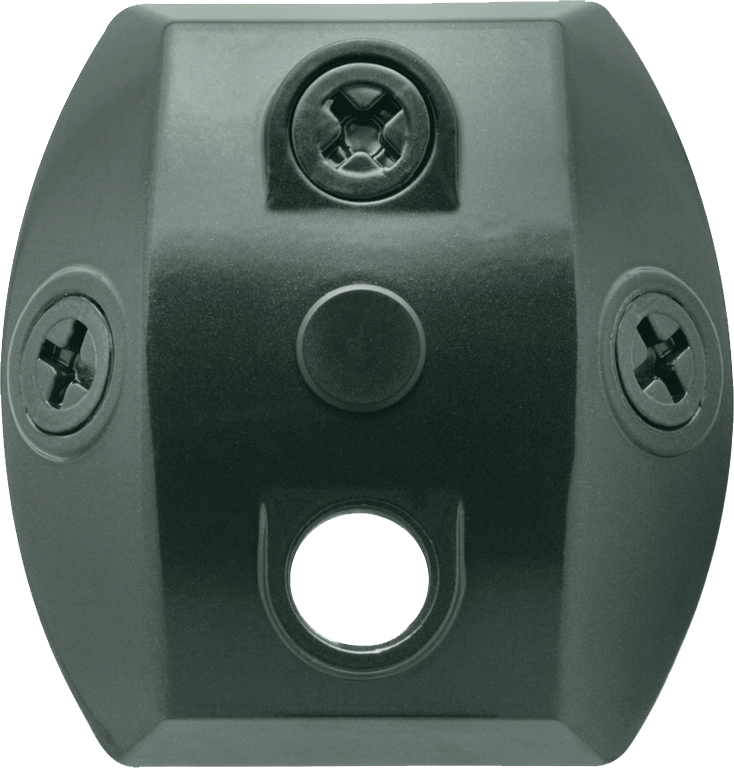

CU4VG
CU4VG large main
  • 1/8" thick weather seal gasket is closed cell foam rubber for long lasting seal that won't break
  • Stainless steel screws provided
  • Die cast aluminum covers are color matched
  • Close-up plugs allow Phillips or slotted screwdrivers for easy installation
 View Technical Specs
View Price & Availability
Dimensions
Link to Dimension Drawing

Weight: 0.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Construction
Covers
Precision die cast aluminum or molded polycarbonate plastic with 1/2" threaded holes
Screws
10-24 Brass Round Head Phillips/slotted
Gaskets
1/8" thick closed cell silicone rubber for long lasting seal won't crumple or break
Hole Count
4 Hole
Other
Replacement Plugs
Available for round and rectangular covers and boxes
Patents
Pat. D520,465.
