DLTRIM/CRLEDFA10R-BS - RAB Lighting

DLTRIM/CRLEDFA10R-BS

Spec Sheet Spec Sheet

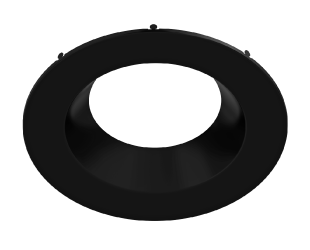

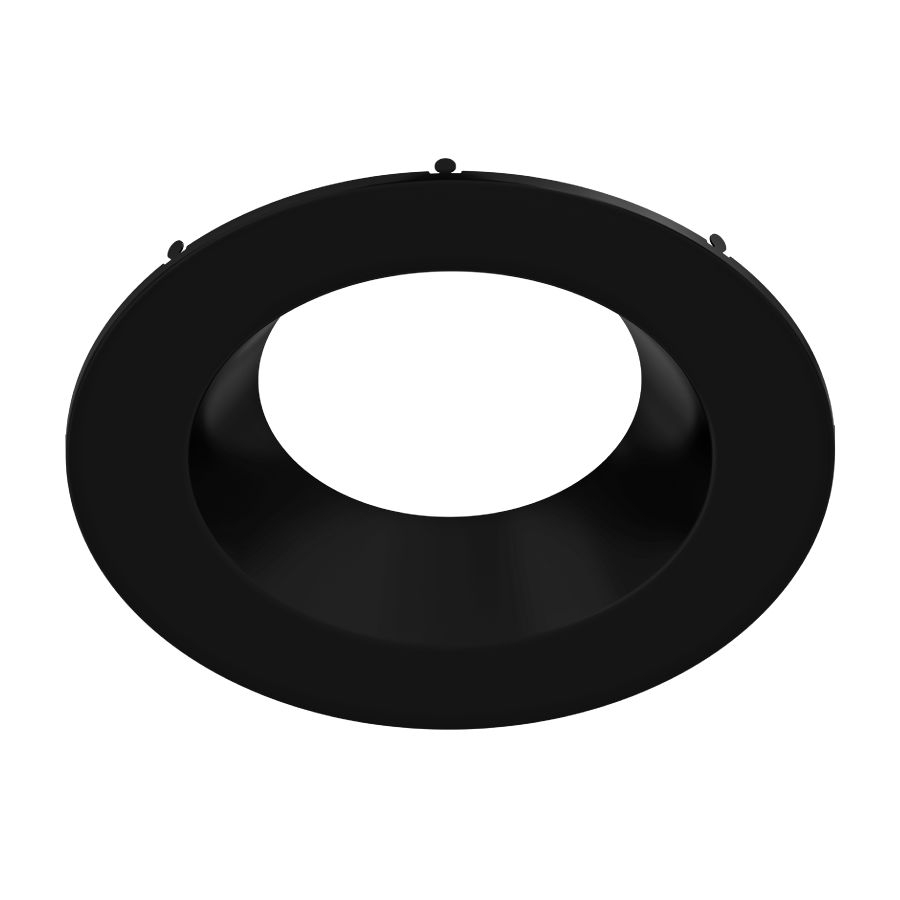

DLTRIM/CRLEDFA10R-BS large main

DLTRIM/CRLEDFA10R-BS

View Technical Specs

View Price & Availability

Dimensions

Link to Dimension Drawing

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Color Trim

Description

Field installable color trim overlays for commercial downlights

Installation

Mounting

Field installable with integrated mountiing tabs

Construction

Finish

Black

Trim Material

Aluminum

Trim Style

Smooth

UV Protection

No

Compliance

Listings

None

Environment

Suitable for use indoors in dry and damp environments.

T20 Compliant

Not compliant

California Title 24 JA8 Compliant

Not Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

Other

Compatible Products

Compatible with select 10-inch Field Adjustable Commercial Downlights (CRLEDFA), see complete Trim Compatibility List.
