DROPB

15W 3500/4000/5000K

3 Selectable color temperatures - 3000/4000/5000K_

Anti-corrosion, die-cast housing_

Integrated selectable photocell_

Available in AC-only & battery backup versions_ with integrated test switch

UL924, DLC 5.1, IP65 Rated

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	3500/4000/5000K
Lumens	1740-1814 lm
Efficacy	130.3-138.5 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.11A
208V	0.07A
240V	0.06A
277V	0.06A
Input Watts	13.1-13.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.0 lbs

Technical Specifications

Performance

Product Type

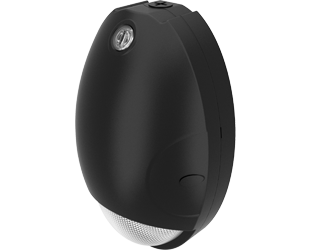

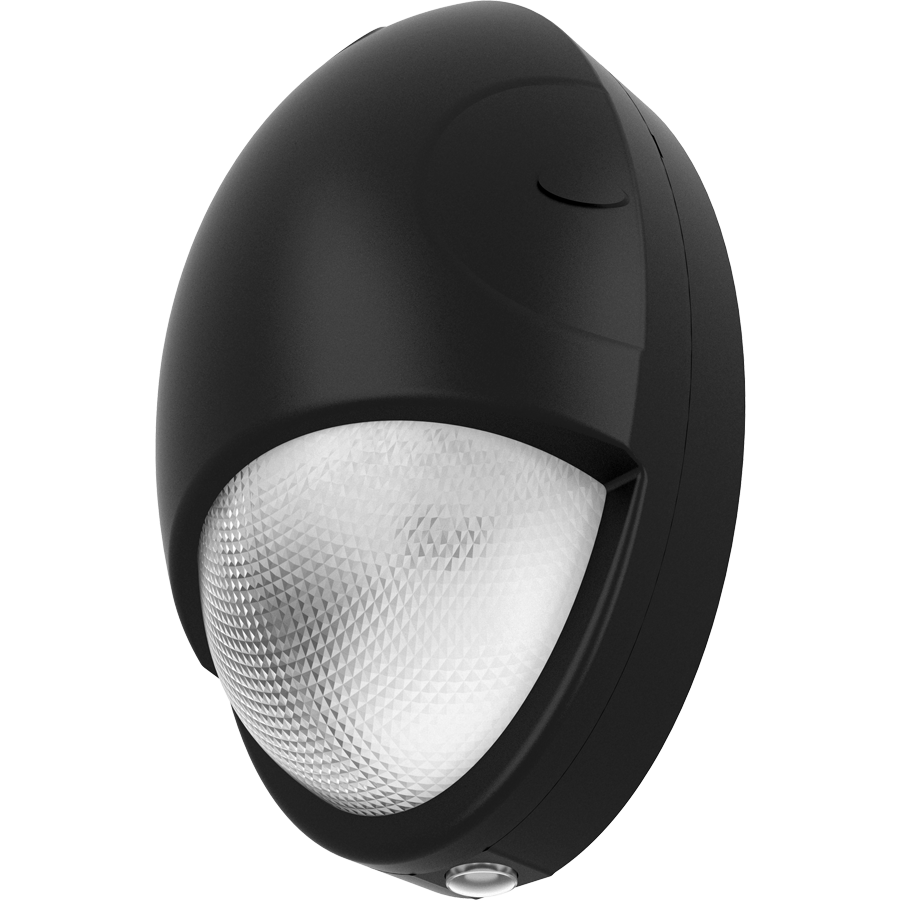

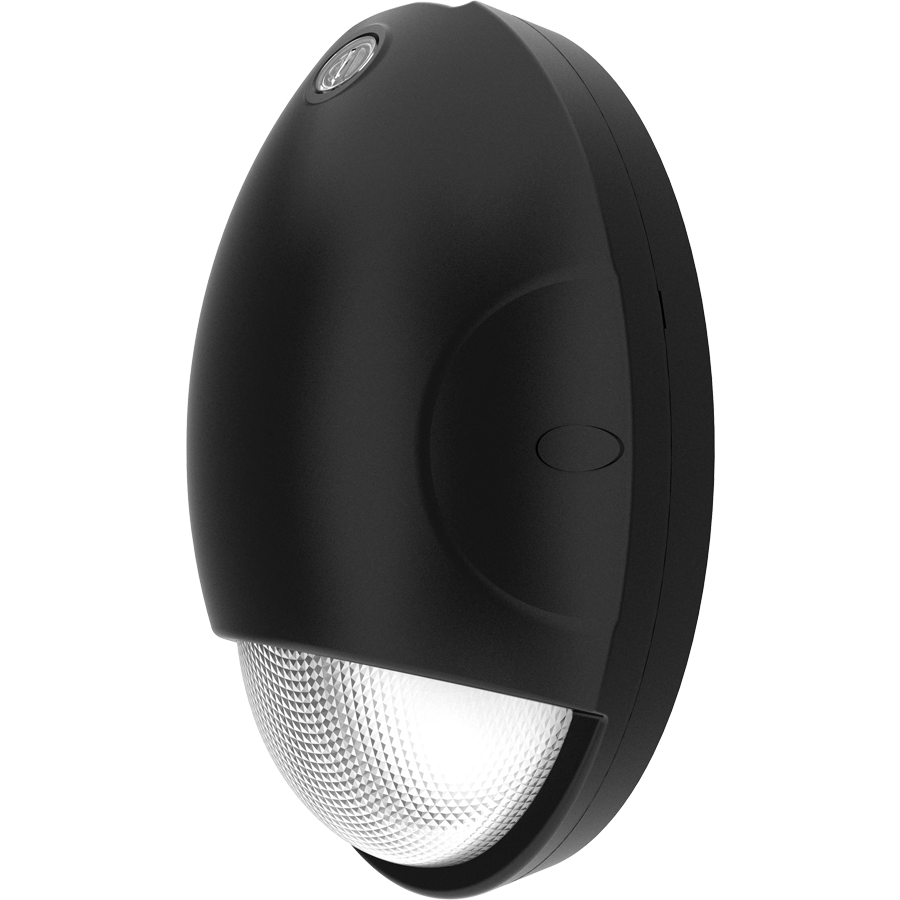

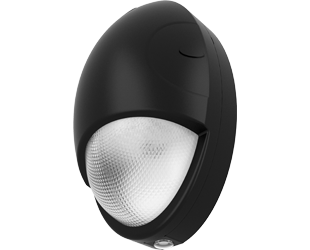

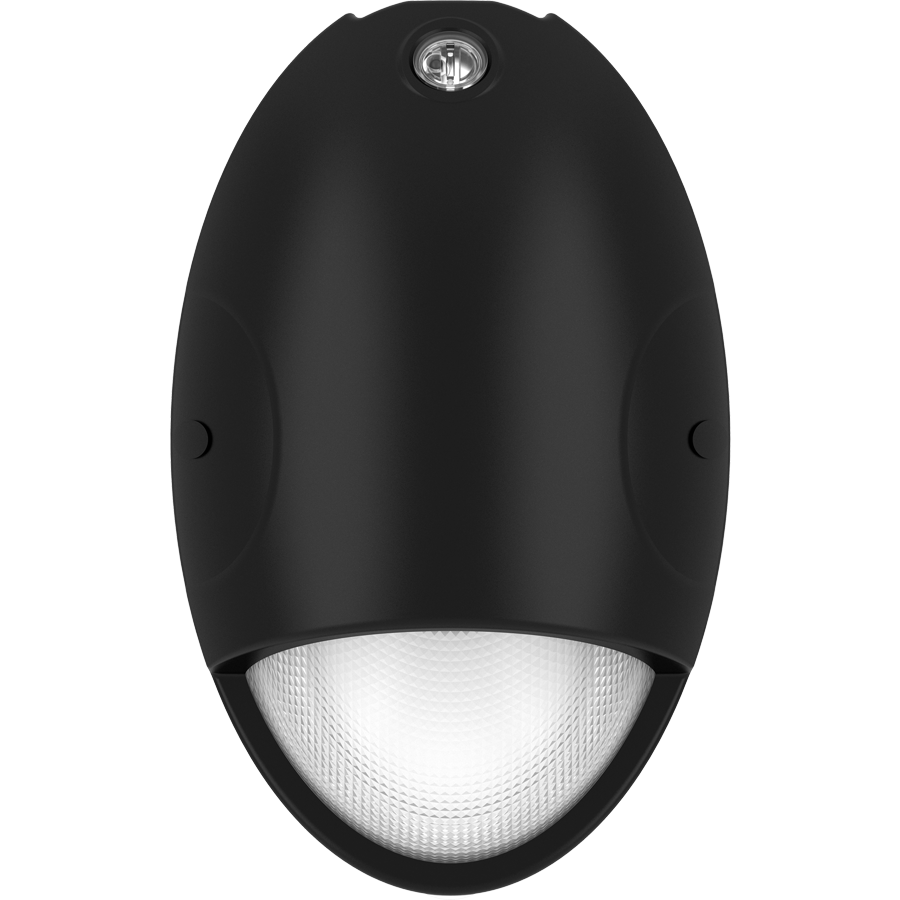

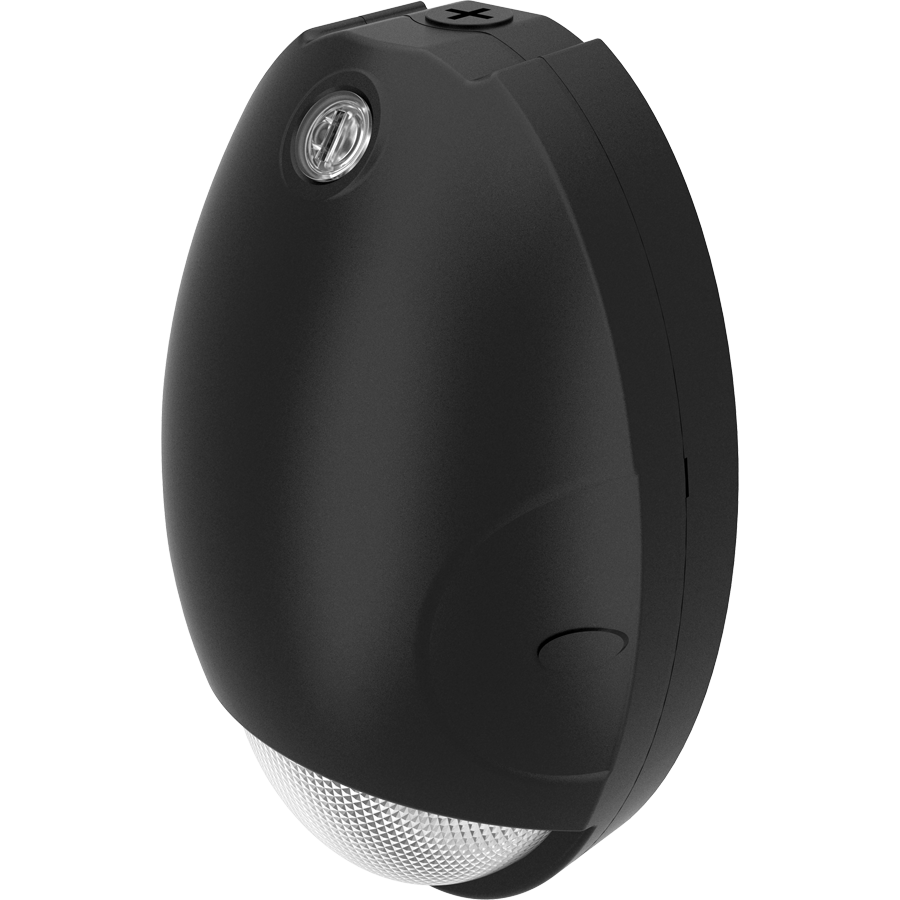

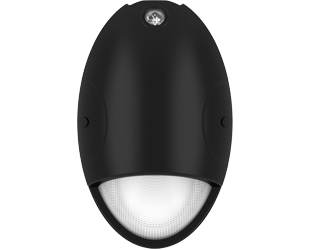

Teardrop Mini Wall Pack

Description

Teardrop style mini wall pack made of anti-corrosion, die-cast housing with selectable photocell. Available in AC-only & battery back up versions_ with integrated test switch.

Wattage Equivalency

50W CFL

Input Wattage

15W

Lumens (Nominal)

1,740/1,814/1,775lm

Lumens (Measured)

1,740lm @ 3500K
1,814lm @ 4000K
1,775lm @ 5000K

Efficacy

130/138/133lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Driver

Constant Current, Class 2 120-277 50/60 Hz; 120V: 130mA; 208V: 75mA; 240V: 65mA; 277V: 60mA

Electrical

THD

<20%

Power Factor

0.9

Dimmable

Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.

Operating Temperature

-40°F to 122°F (-40°C to 50°C)

Flicker

<70%

Surge Protection

2.5 kV

Sensor Settings

Photocell

Yes, selectable dipswitch

LED Characteristics

Beam Angle

100°

Color Temperature

Field adjustable via dip switch 3000/4000/5000K

Color Accuracy (CRI)

>80 CRI

R9 Value

4/6/-2

Color Consistency

<6-step (3500K/5000K) <7-step (4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

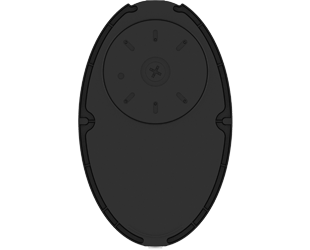

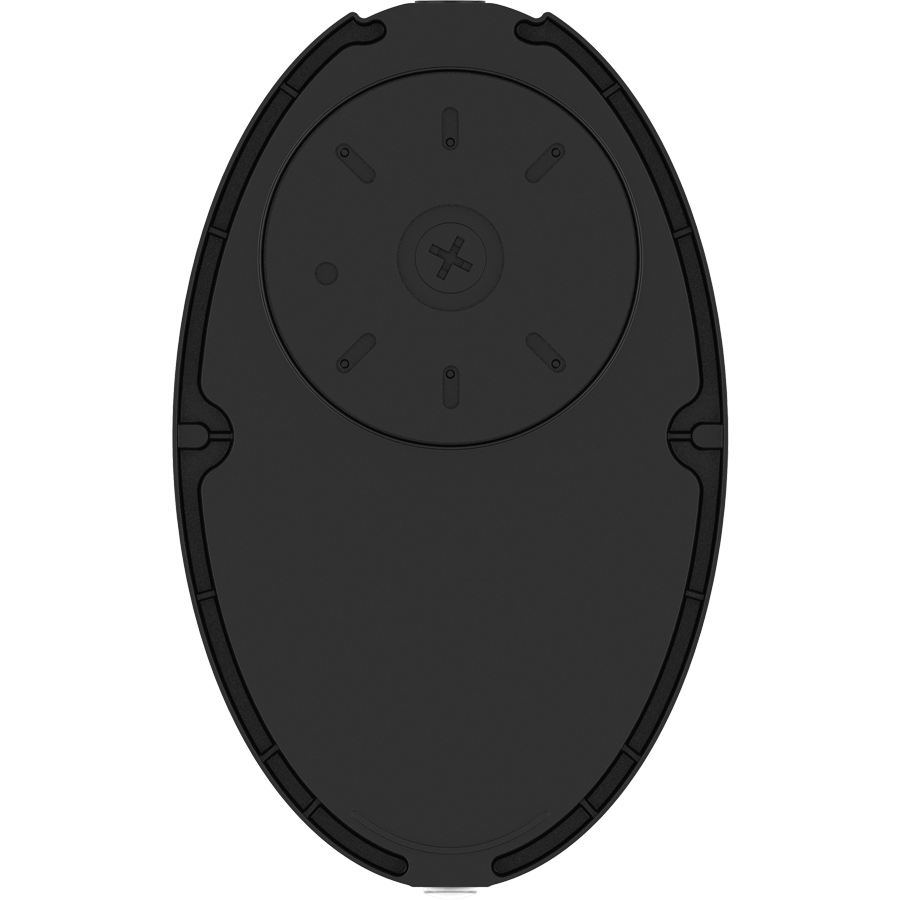

Wall mounted

Construction

Shape

Round

Finish

Black

Enclosure Material

Aluminum

Air Tight

Housing certified Air Tight as per ASTM-E283

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP65

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
