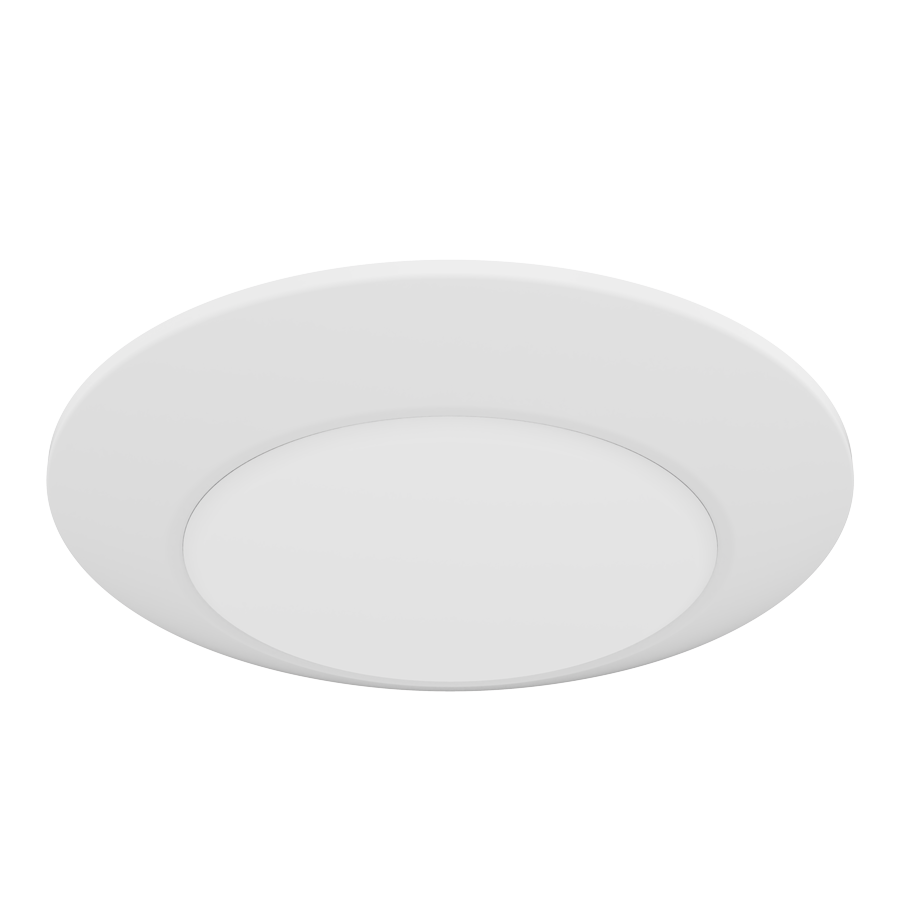

DSK34-6R16.5940120WS
DSK34-6R16.5940120WS
- Super low profile backlit LED with driverless design
- Stamped aluminum housing
- New construction or retrofit applications
- Simple and quick installation from below the ceiling
- Installs on standard 4" and 6" junction boxes
- Can be retrofitted to existing downlight housings with option accessory
- Suitable for Damp locations
- Dimmable down to 5% on compatible dimmers
- 5-Year, limited warranty
Performance
| Watts | 16W |
| Color Temp | 4000K |
| Lumens | 1,221 lm |
| Efficacy | |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.18A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 16.5W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Description
The DISK34 is an ultra low profile surface-mount, ideal solution for new construction and retrofit applications. IC rated for direct contact with insulation, air tight, suitable for indoor applications in dry and damp environments. Mounting kit for recessed housing sold separately.
Product Type
Surface & Flush Mounts
Input Wattage
16.5W
Lumens
1,200lm
Efficacy
72.7lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for damp locations
UL Classified
Yes
Fixture Rating
Open
IC Rated
Suitable for direct contact with insulation
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 5%
Power Factor
0.9
Flicker
<30%
Input Voltage
120V
Operating Frequency
60Hz
Construction
Material
Aluminum
Trim Style
Smooth Trim
Shape
Round
Operating Temperature
-22°F (-30°C) to 104°F (40°C )
LED Characteristics
Beam Angle
110°
R9 Value
High color performance with R9 greater than 50
Installation
Mounting
Surface mount
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
