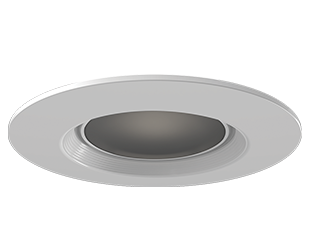

ECLPS6B
ECLPS6B
- Smooth and baffle trim cones available in a white finish
- 5CCT field adjustable (2700/3000/3500/4000/5000K)
- 2000K amber white nightlight ring located on the inside of the trim cone
- Dimmable on TRIAC/ELV @ 120V
- 50,000 hrs, 5-year no-compromise warranty
Performance
| Watts | 9.5 W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 900 lm |
| Efficacy | 94 |
| Color Accuracy | 90 CRI |
| L70 Lifespan |
| Type | Constant Current, Class 2 |
| 120V | 91A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9.5 W |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Retrofit Downlight w/Nightlight
Description
Recessed lighting retrofits with a nightlight mode to provide 2000K amber color temperature alone. Creates comfort, warmth, soft lighting and extra ambiance to help you fall asleep at night.
Wattage Equivalency
60W Incandescent
Input Wattage
9.5W
Nominal Lumens
900lm (mainlight)
20lm (nightlight)
20lm (nightlight)
Actual Lumens
Mainlight:
908lm @ 2700K;
915lm @ 3000K;
932lm @ 3500K;
938lm @ 4000K;
960lm @ 5000K
Nightlight:
30lm @ 2000K
908lm @ 2700K;
915lm @ 3000K;
932lm @ 3500K;
938lm @ 4000K;
960lm @ 5000K
Nightlight:
30lm @ 2000K
Efficacy
Mainlight:
98lm/W @ 2700K;
98lm/W @ 3000K;
99lm/W @ 3500K;
100lm/W @ 4000K;
103lm/W @ 5000K
Nightlight:
6lm/W @ 2000K
98lm/W @ 2700K;
98lm/W @ 3000K;
99lm/W @ 3500K;
100lm/W @ 4000K;
103lm/W @ 5000K
Nightlight:
6lm/W @ 2000K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
20%
Power Factor
>0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
0.09mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
30%
LED Characteristics
Beam Angle
90°
Color Temperature
Mainlight:
Field adjustable via dip switch 2700/3000/3500/4000/5000
Nightlight:
2000
Field adjustable via dip switch 2700/3000/3500/4000/5000
Nightlight:
2000
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Base Type
E26 socket adapter Included
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Plastic
Trim Style
Baffle
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Classified, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified.
DLC Listed
No
Certification Model Number
DLR0156(ECLPS6B)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
NDCANIC6R
6" New construction recessed housing IC rated
RDCANIC6R
6" Remodeler recessed housing IC rated
RFLED-RETROBAND
Retrofit band with friction clips for 5"/6" downlight
6" New construction recessed housing IC rated
RDCANIC6R
6" Remodeler recessed housing IC rated
RFLED-RETROBAND
Retrofit band with friction clips for 5"/6" downlight
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
