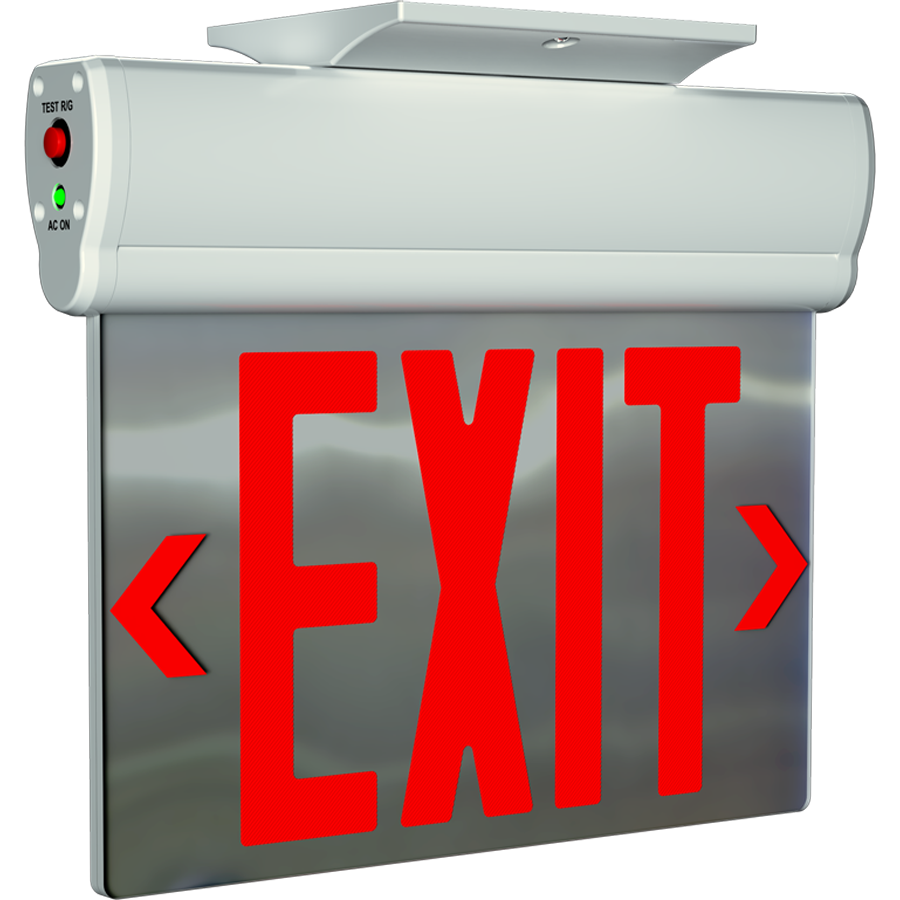

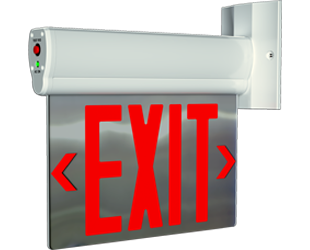

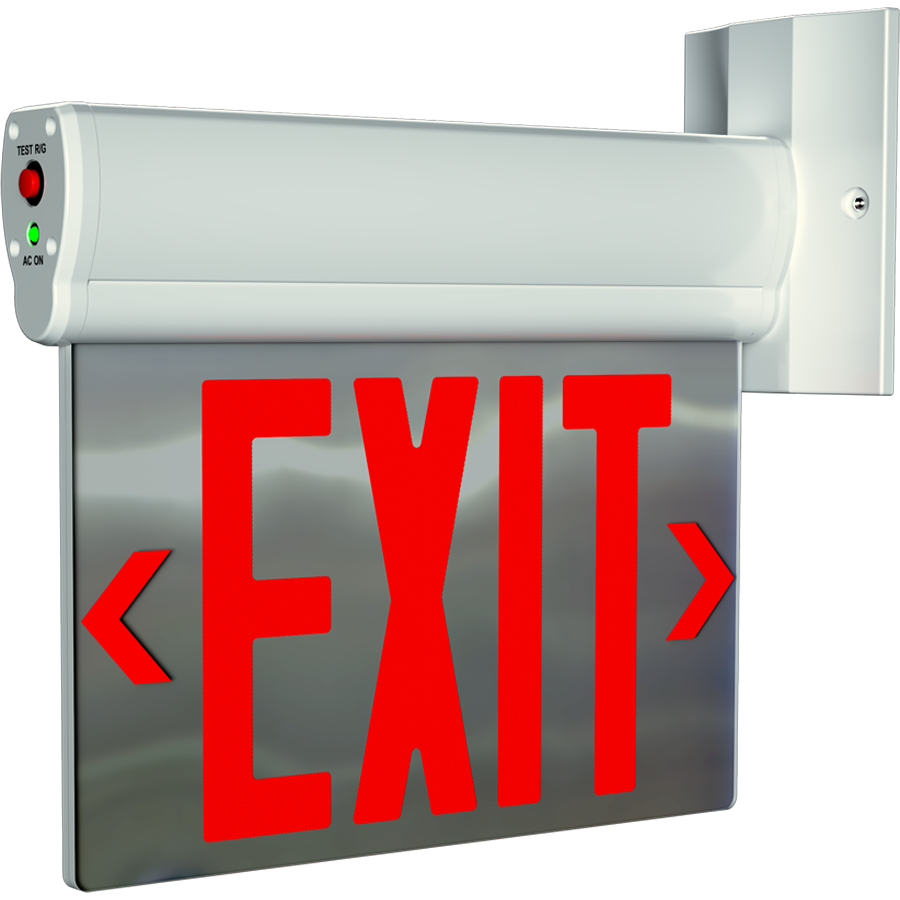

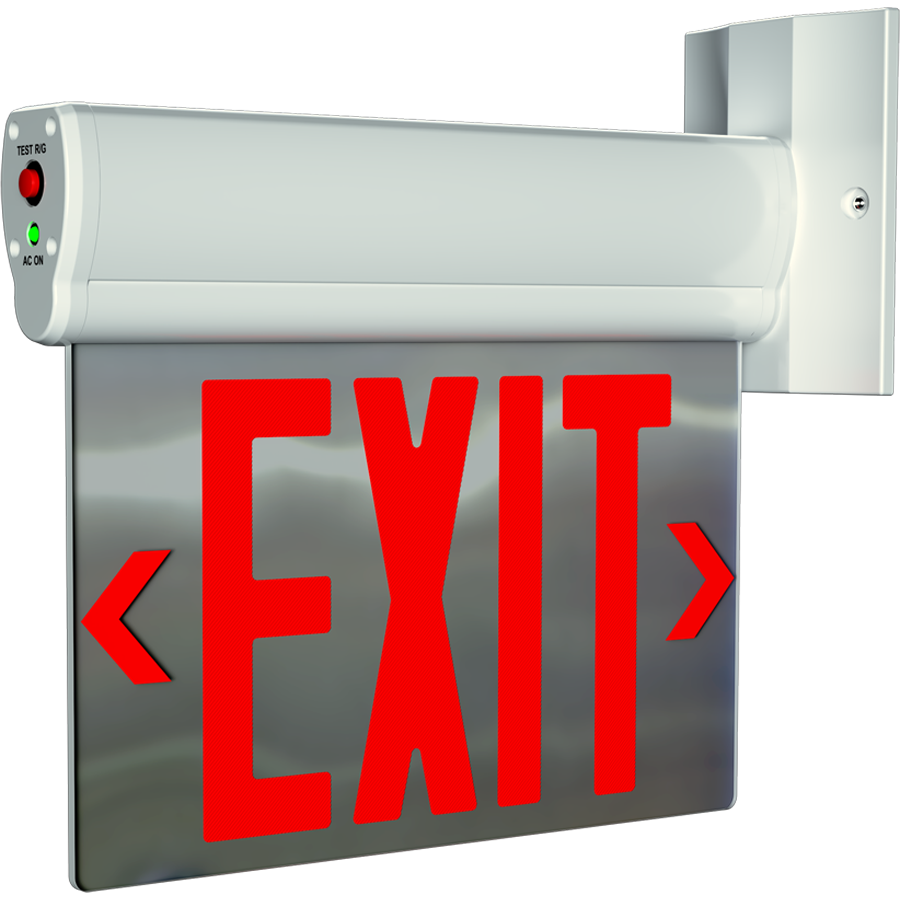

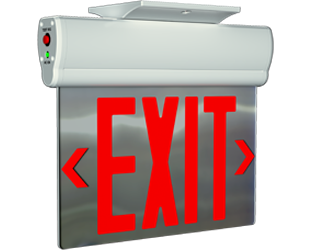

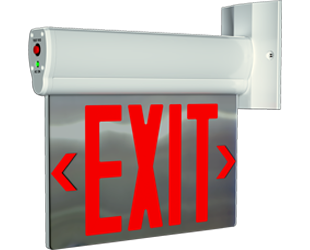

ELS-MP
- Single-face edge-lit exit sign with clear acrylic panel
- White thermoplastic housing, 5VA flame rating, impact- and scratch-resistant
- Red or green letters, selectable by dip switch
- Surface mounting: wall, ceiling or end; panel swivels 0-180°
- 90-minute battery backup with integrated test switch and charge indicator
Dimensions
Weight: 2.3 lbs
Technical Specifications
Performance
Product Type
Universal Mounting Edge-Lit Exit Sign
Product Series
ELS & ELX Universal Mounting
Edge-Lit Exit Sign
Description
These edge-lit exit signs provide a high-end aesthetic while still being economical. The exit sign panel tilts 0-180°, fitting many moutnting orientations, and comes with surface and recessed mounting hardware in the box.
Maximum Output Wattage (W)
0.8W
Construction
Housing Material
Thermoplastic Housing 5VA Flame Rating
Housing Finish
White Housing
Lens Panel
Mirror backing acrylic exit panel
Lettering
Standard with Red/Green Color Selection
Face Configuration
Double face
Arrow Configuration
Field-installable, removable chevron directional indicators for all configurations
Illumination Source
Long-life LEDs provide diffuse illumination of exit face
Electrical
Power Factor
0.4
Input Voltage (V)
Universal 120-277 Voltage
Operating Frequency
50/60Hz
Input Current @ 120V (A)
.029A
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Characteristics
Battery Backup
Yes
Emergency Illumination
90 minutes
Battery
Nickel-Metal Hydride
Battery Voltage
Battery Voltage
Recharge Time
Maximum 24 hours for full recharge time
Battery Operating Temperature
32°F to 122°F (0°C to 50°C)
Testing Method
Integrated Test Switch & Charge Indicator
Installation
Mounting
Can be mounted on top, side or end mount
Application
Compatible with drywall or drop ceiling mount installations
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
