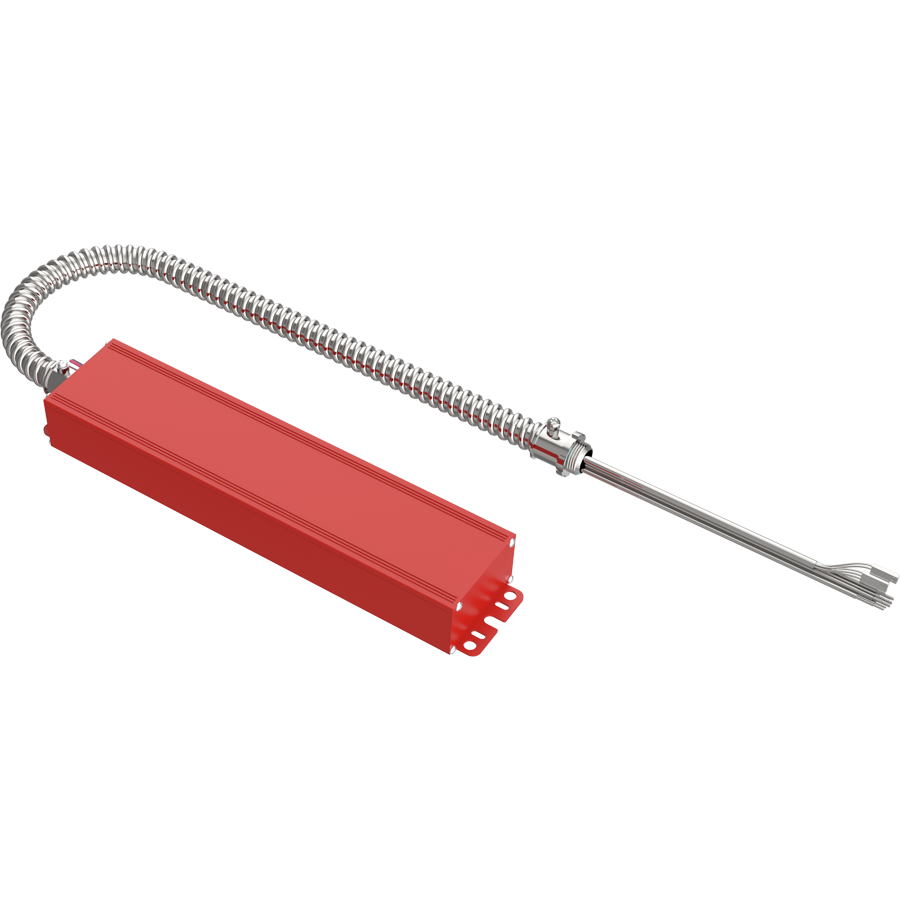

EMB-25
- Constant power, AC solution emergency battery
- UL Listed for field or factory installation
- Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
- CEC Title 20 Compliant
- Overcharge, over-discharge, output overload, short-circuit, and open load protection
- 5-Year Limited Warranty

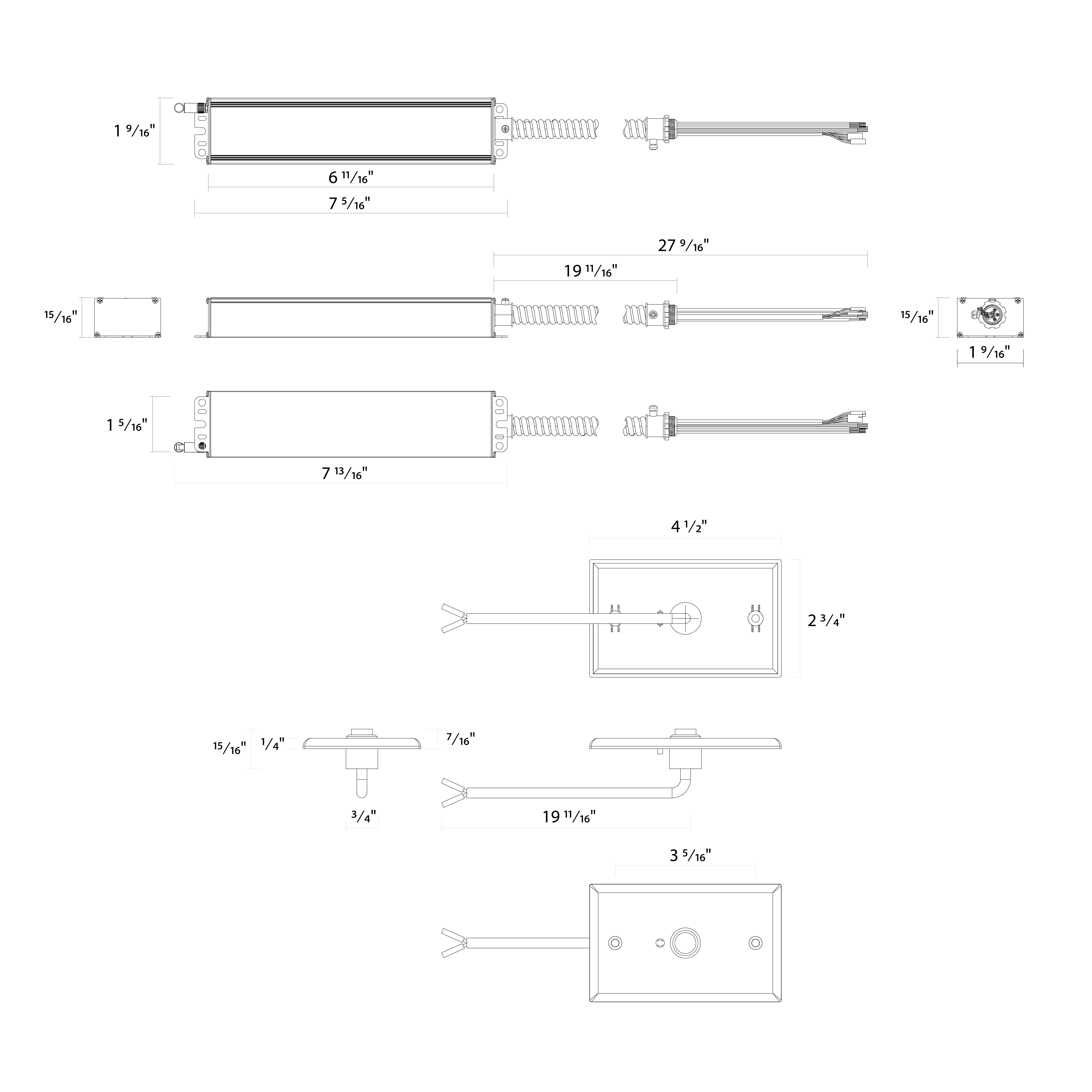

Dimensions
Weight: 2.4 lbs
Technical Specifications
Performance
Product Type
Emergency Driver
Description
AC Constant power emergency LED drivers for use with many fixture applications. Can be factory and field installed, simple to wire, and ideal for various kinds of 0-10V dimmable indoor LED luminaires.
Input Power (W)
10W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V-347V 50/60 Hz; 120V: 0.0553mA; 208V: 0.033mA; 240V: 0.0304mA; 277V: 0.0286mA
Power Factor
0.84
Dimmable
Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-347V
Operating Frequency
50/60Hz
Operating Temperature
0°F to 122°F (0°C to 50°C)
Protections
Battery overcharge protection
Battery over-discharge protection
Output overload protection
Short-circuit protection
Open load protection
Battery over-discharge protection
Output overload protection
Short-circuit protection
Open load protection
Battery
Lithium Ion 14.8V/180mAh
Emergency Operation
90 minutes
Emergency Power
25W
Installation
Mounting
Easy wiring: directly connect to AC INPUT OF LED Lights
Construction
Finish
Red
Enclosure Material
Steel
Compliance
Listings
Listed to UL924. For field or factory Installation (Indoor and Damp)
NFPA Approved
Compliance with American National Fire Protection Association (NFPA) 101 life Safety Code
Environment
Suitable for use indoors in dry and damp environments.
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
This emergency driver is compatible with 25-200W LED with 0-10V dimming or LED less than 25W without 0-10V dimming.
Panels & Troffers:
T34FA-[1X4][2X2][2X4]
Back-lit flat panel (non-LCB models only)
EZP-[1X4][2X2][2X4]
Edge-lit flat panel (non-LCB models only)
SWISHFA-[1X4][2X2][2X4]
Center basket troffer, field-adjustable (non-LCB models only)
C-SWISH-[1X4][2X2][2X4]
Eco-friendly center basket troffer, field-adjustable (non-LCB models only)
SWISH[AIR]-[1X4][2X2][2X4]
Center basket troffer, field-adjustable (non-LCB models only)
SWISH34-[1X4][2X2][2X4]
Center basket troffer, field-adjustable (non-LCB models only)
Panels & Troffers:
T34FA-[1X4][2X2][2X4]
Back-lit flat panel (non-LCB models only)
EZP-[1X4][2X2][2X4]
Edge-lit flat panel (non-LCB models only)
SWISHFA-[1X4][2X2][2X4]
Center basket troffer, field-adjustable (non-LCB models only)
C-SWISH-[1X4][2X2][2X4]
Eco-friendly center basket troffer, field-adjustable (non-LCB models only)
SWISH[AIR]-[1X4][2X2][2X4]
Center basket troffer, field-adjustable (non-LCB models only)
SWISH34-[1X4][2X2][2X4]
Center basket troffer, field-adjustable (non-LCB models only)
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
