Dimensions
Link to Dimension Drawing
Technical Specifications
Performance
Description

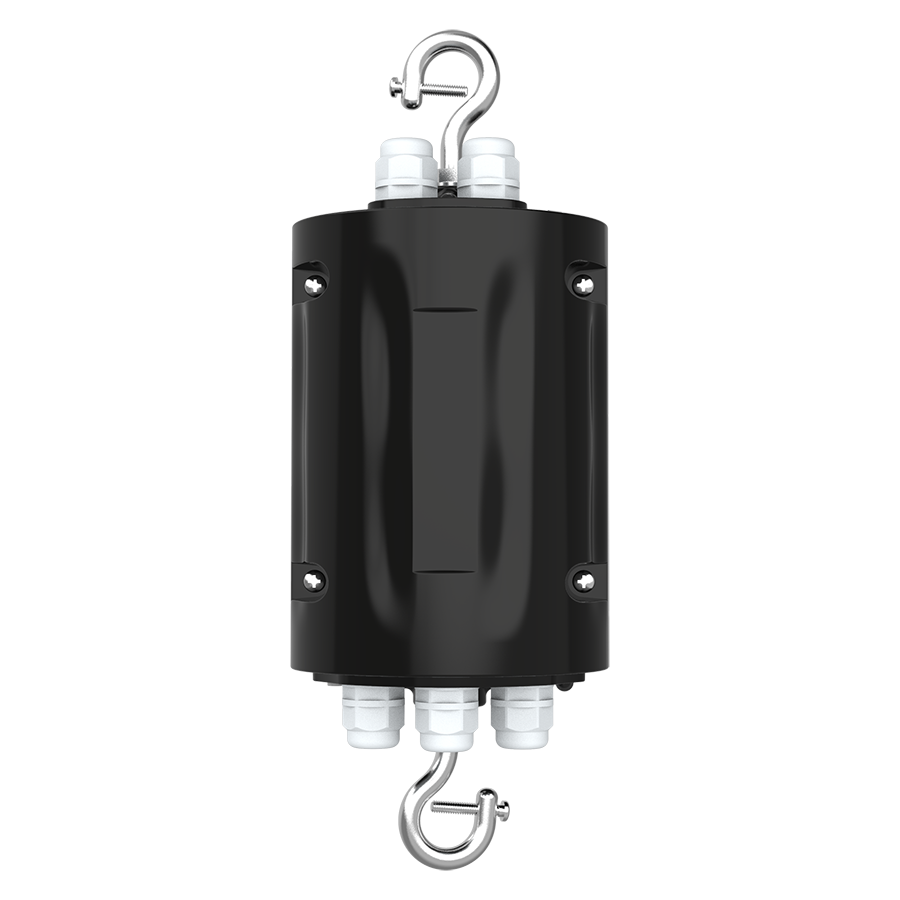

Battery backup kit
Input Power (W)
12W max
Compliance
UL Listed
UL Listed
California Energy Commission (CEC) Status
CEC Title 20
Construction
Finish
Formulated for high durability and long-lasting color
Electrical
Power Factor
0.6@100Vac_0.5@347Vac
Emergency Wattage
60W
Input Voltage
100-347VAC,50/60Hz
Input Current
0.15A max
Output Voltage
120-200Vdc 250V MAx
Battery Backup
Rechargeable Lithium Ion
Ambient Temperature
32°F to 122°F (0°C to 50°C)
Battery Capacity
14.8V/9600mAh
Other
Compatible Products
H17XXL
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
The EMHB is not compatible with all of the PIR40 Series, the MVS20 Series or the MVS50 Series.
