• Single-face panel with red letters
  • Steel housing
  • Approved for use in the city of Chicago
  • Compliant with California Title 20
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 4.9 lbs

Technical Specifications
Performance
Product Type
Chicago-Approved Steel Exit/Stair Sign
Description
Chicago-approved exit sign with a single face and red letters.
Input Wattage
5W @120V and 277V
Electrical
Power Factor
≥0.4
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
10mA
Input Current @ 277V (mA)
50mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Battery Backup
No, AC only
Battery Operating Temperature
32°C to 122°C (0°F to 50°F)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Steel Sheet
Panel Material
Glass
Panel Color
White
Letter Color
Red
Housing Color
White
Number of Faces
Single Face
Arrow Direction
No Arrow
Sign Format
Panel
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CAXTEU1RW-NA
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
Chicago Approved
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Recently Viewed Products

 This is a link to the product EXIT-1CH EXIT-1CH
Exit Sign 1-Face No Arrows Red Letters Chicago
 This is a link to the product HALVS10L927-FG1-W/LC HALVS10L927-FG1-W/LC
Architectural 785 Lumens Halvs Forward & Up/Down Light 14W 90Cri 2700K Frosted Lens With Grill Style 1 White Finish Lightcloud Controller
 This is a link to the product RDLED2AR8-40YHC-TS RDLED2AR8-40YHC-TS
Recessed Downlights 570 Lumens Rdled2Ar8 2 Inch Adjustable Round 8W 40 Degree Beam Spread 90Cri 3000K 1/2 Inch Trim Matte Silver Trim Ring
 This is a link to the product BLEDR12YK-180 BLEDR12YK-180
Bollard Round 42" 12W Led Warm 180 Degrees Black
 This is a link to the product IVAT3-75LWM740ZH/WSLC IVAT3-75LWM740ZH/WSLC
Ivelot T3 70W 7500L Wall 4000K 70 Cri Bronze 347-480V Dim Ws Lc

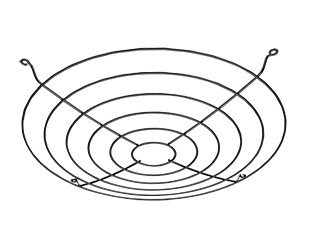

 This is a link to the product H17XXLB-WG H17XXLB-WG
