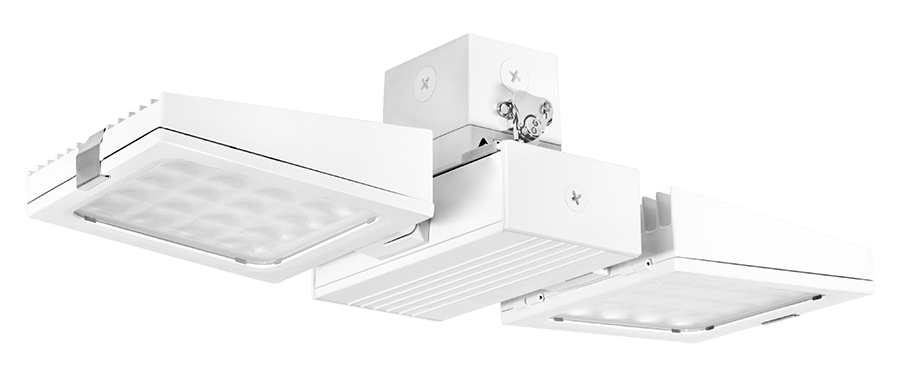

FALCOR80NW/D10
FALCOR80NW/D10
- High-output, high performance industrial high bay
- High ambient temperature rating of 55°C
- Diffusion lens reduces glare
- Multiple mounting options: pendant, surface or chain
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 80W |
| Color Temp | 4000K (Neutral) |
| Lumens | 6,745 lm |
| Efficacy | 83 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.68A |
| 208V | 0.42A |
| 240V | 0.36A |
| 277V | 0.30A |
| Input Watts | 81.3W |
Dimensions
Weight: 23.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Optical
Optics
120° downlight
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 131°F (55°C)
Electrical
Driver
Constant Current, Class 2, 100-277VAC, 50-60Hz, 120V: 0.68A, 208V: 0.42A, 240V: 0.36A, 277V: 0.30A, 4kV surge protection
THD
4.6% at 120V, 9.7% at 277V
Power Factor
99.7% at 120V, 94.7% at 277V
