• Ultra-efficient LED and optical design
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • "Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty and 10-Year, No-Compromise Lightcloud Warranty
View Technical Specs
Performance
Watts 120W
Color Temp 3000K (Warm)
Lumens 13,792 lm
Efficacy 116.3 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 118.6W

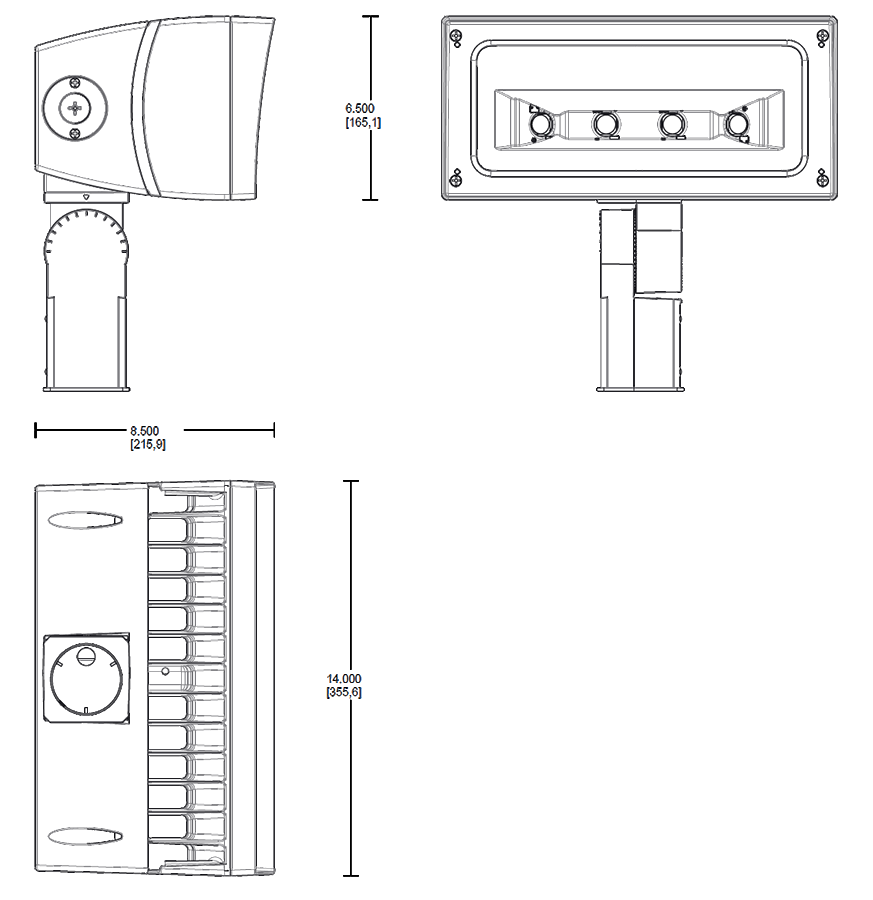

Dimensions
Link to Dimension Drawing

Weight: 20.6 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more about Lightcloud.
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4ft (1.2m) of the ground.
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Other
Note
All values are typical (tolerance +/- 10%)
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
Optical
NEMA Type
NEMA Beam Spread of 4H x 4V
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Thermal Management Housing
Superior heat sinking with external Air-Flow fins
Housing
Die-cast aluminum housing, lens frame and mounting arm
Mounting
Heavy-duty slipfitter for 2 3/8"OD pipe
Lens
Clear glass lens
Reflector
Specular vacuum-metalized polycarbonate
Effective Projected Area
EPA = 1.3
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Tilt Increment
Rotates in 6 degree increments
Electrical
Driver
Constant Current, Class 1, 480V, 50/60 Hz, 480V: 0.27A
THD
9.5% at 480V
Power Factor
92.8% at 480V
Surge Protection
6kV
