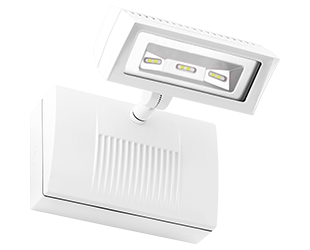

FFLED18W/E
FFLED18W/E
- Ultra-efficient LED and optical design
- Replaces 70W MH floodlights
- 100,000-hour life based on LM-80 results and TM-21 calculations
- NEMA type - 7H x 6V
- "Air-Flow" technology heatsink
- 5-Year, No-Compromise Warranty
Performance
| Watts | 18W |
| Color Temp | 5000K (Cool) |
| Lumens | 2,429 lm |
| Efficacy | 123.3 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.2A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.11A |
| Input Watts | 19.7W |
Dimensions
Weight: 3.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Wall Mount Only. Battery Backup UL 924 Listed Emergency Lighting Power Supply.
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-ZL2GY0
DLC Product Code: S-ZL2GY0
Electrical
Driver
Constant Current, Class 2, 120-277V, 50 - 60 Hz, 120V: 0.2A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
THD
11.89% at 120V, 17.78% at 277V
Power Factor
98.7% at 120V, 91% at 277V
Surge Protection
6kV
Battery Backup
Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries
Battery Backup Light Loss Factor
0.55
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 70W Metal Halide
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Construction
Thermal Management
Optimized using computational fluid dynamics software to ensure long LED and driver lifespan
Gaskets
High-temperature silicone
Housing
Precision die-cast aluminum housing, lens frame and mounting arm
Airflow
Airflow technology heat sink for superior cooling
Thermal Management Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Semi-specular anodized aluminum
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
NEMA Type
NEMA Beam Spread 7H x 6V
Installation
Mounting
Heavy-duty mounting arm with "O" ring seal & stainless steel screw
\
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
