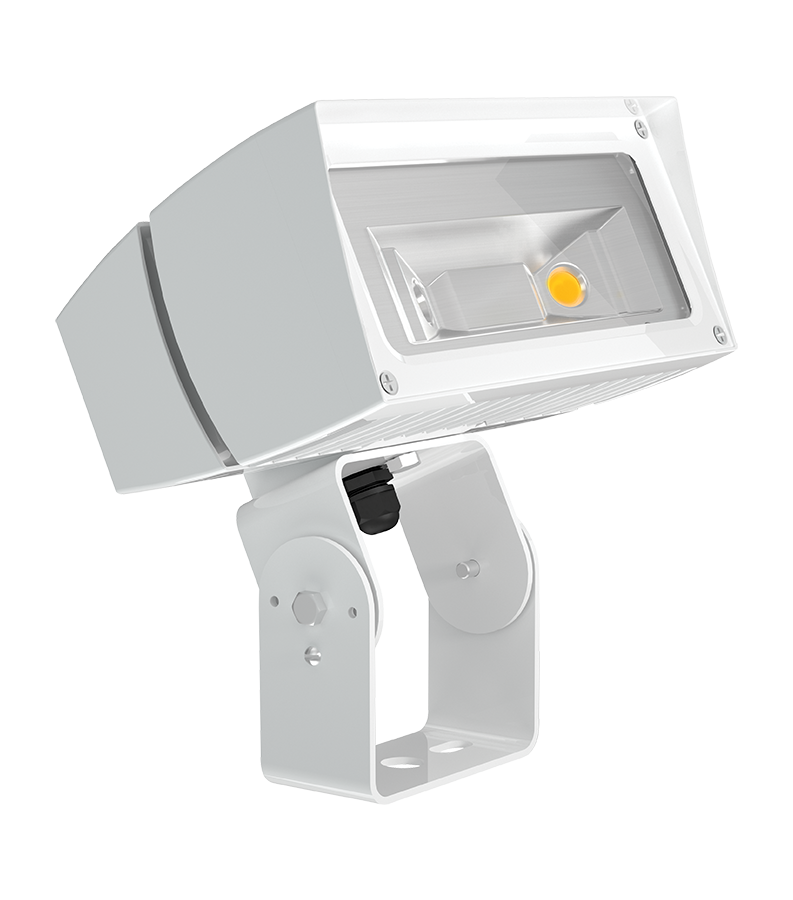

FFLED26TW/PCU
FFLED26TW/PCU
- Ultra-efficient LED and optical design
- Replaces 100W MH floodlights
- 100,000-hour life based on LM-80 results and TM-21 calculations
- "Air-Flow" technology heatsink
- 5-Year, No-Compromise Warranty
Performance
| Watts | 26W |
| Color Temp | 5000K (Cool) |
| Lumens | 4,087 lm |
| Efficacy | 142.9 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.11A |
| Input Watts | 28.6W |
Dimensions
Weight: 14.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IP Rating
Ingress protection rating of IP66 for dust and water
Title 24 Compliant
An FFLED flood light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,c)
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 100W Metal Halide
Construction
Lens
Soda lime silica clear glass
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Heavy-duty Trunnion mount with stainless steel hardware
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Optical
NEMA Type
7H x 6V Beam Spread
Electrical
Driver
Constant Current, Class 2, 120-277V, 50-60Hz, 120V: 0.24A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.54% at 120V, 16.25% at 277V
Power Factor
99.1% at 120V, 90.6% at 277V
Photocell
120-277V Button photocell included. Photocell is compatible with 120V-277V.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
