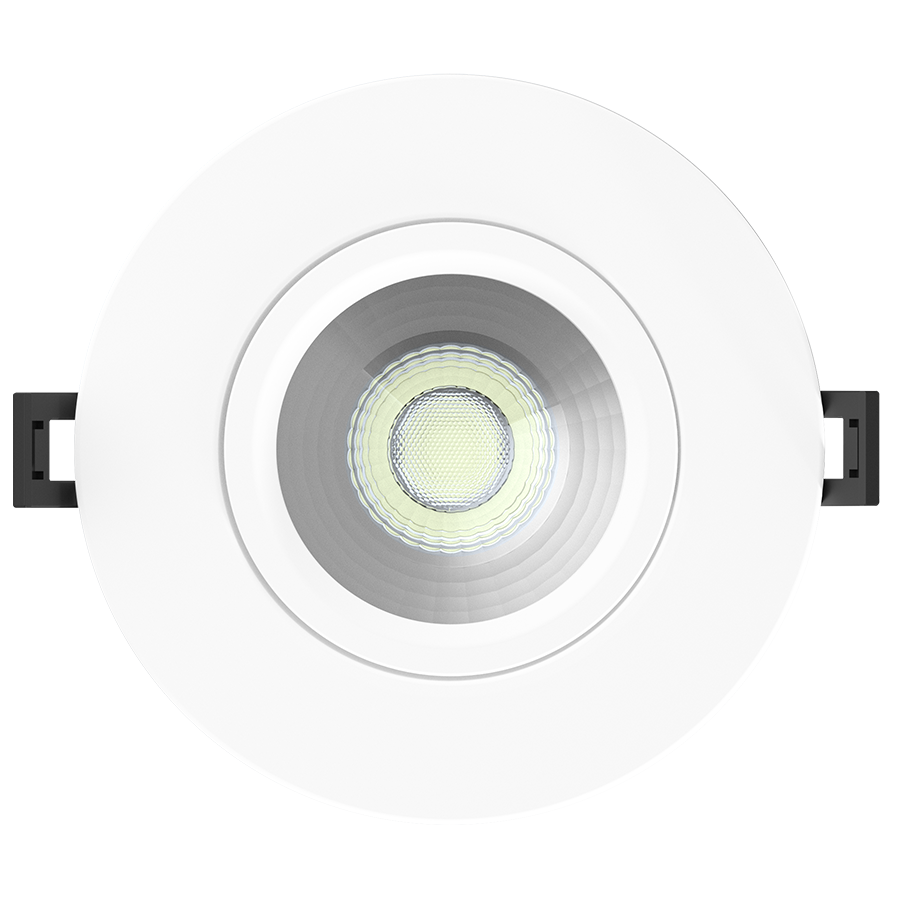

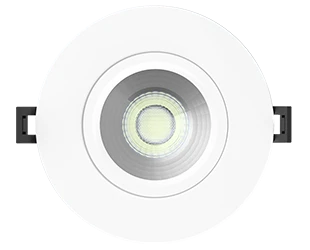

GF4

L5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)

Deep regress remote driver downlight

No recessed housing or J-box required

New construction or retrofit applications

Spring loaded retention clips

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp	CCT Adjustable 2700/3000/3500/4000/5000K
Lumens	850 lm
Efficacy	70.83
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.10A
208V
240V
277V
Input Watts	12W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.9 lbs

Technical Specifications

Performance

Product Type

Recessed Floating Gimbal Downlight

Description

Remote driver downlights are great for new construction and retrofit applications. Downlights provide small-aperture aesthetic, available in recessed, deep recessed and gimbal models in 2", 3", and 4" sizes.

Wattage Equivalency

120W Incandescent

Input Wattage

12W

Lumens

2700K @ 889lm; 3000K @ 961lm; 3500K @ 1,022lm; 4000K @ 1,049lm; 5000K @ 1,049lm

Efficacy

2700K @ 76lm/W; 3000K @ 84lm/W: 3500K @ 92lm/W; 4000K @ 94lm/W; 5000K @ 90lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2, 60 Hz, 120V 0.10A

THD

≤25%

Power Factor

≥0.9

Dimmable

Yes, dims down to 10% on compatible TRIAC/ELV systems. See Dimmer Compatibility List on rablighting.com.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

97mA

Operating Temperature

-13°C to 104°F (-25°C to 40°C)

MBCP

1,905

Flicker

≤30%

Tilt

90°

LED Characteristics

Beam Angle

38°±5°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than or equal to 50

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed, no housing required

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Cut Out Template Size

4 5/16"

Air Tight

Housing certified Air Tight as per ASTM E283

Compliance

Listings

ETL Listed

Environment

Suitable for use in dry, damp, and wet environments.

IC Rated

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified.

Certification Model Number

DLG0018(GF4)

T20 Compliant

No, this product does not meet California Title 20 requirements.

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
