GN2STW
25W 2700K/3000K/3500K/4000K/5000K
- IP65 Rated
- 100,000-Hour LED lifespan
- 0-10V dimming, standard on all models
- 5-Year, limited warranty
Performance
| Watts | 25/20/15W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 2364-3826 lm |
| Efficacy | 141.8-160.1 lm/W |
| Color Accuracy | 82-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.20A/0.17A/0.13A |
| 208V | 0.13A/0.11A/0.09A |
| 240V | 0.11A/0.10A/0.08A |
| 277V | 0.10A/0.08A/0.07A |
| Input Watts | 15.7-25.1W |

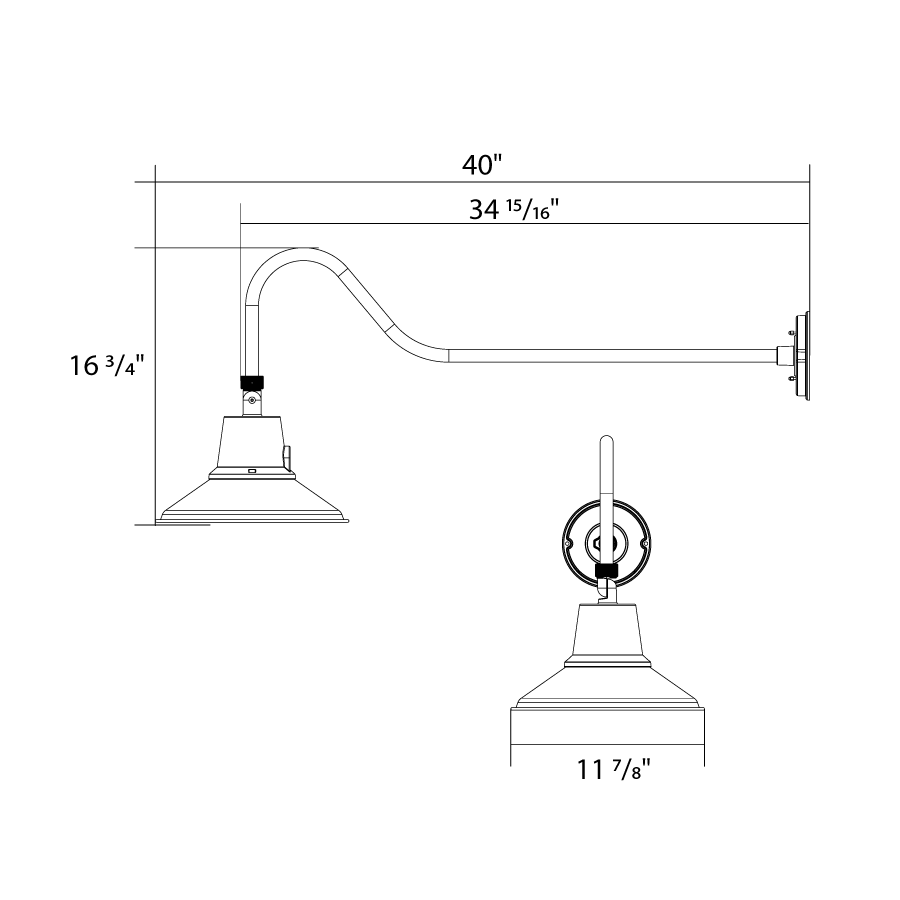

Dimensions
Weight: 5.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
25W/20W/15W (factory default 25W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
On/Off Photocell (factory default "On")
25W/20W/15W (factory default 25W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
On/Off Photocell (factory default "On")
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.11A, 277V: 0.10A
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
15W: 120V: 0.13A, 208V: 0.18A, 240V: 0.07A, 277V: 0.06A
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.11A, 277V: 0.10A
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
15W: 120V: 0.13A, 208V: 0.18A, 240V: 0.07A, 277V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
4 kV L-N; 2kV L/N-G
Aux Power Supply
No
Dim to Off
Yes
Photocell
Integrated photocell included with on/off switch
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Die-cast aluminum
Shades
12" Straight Shade
Gooseneck Arm Style
Style 2, GSARM2W
Lens
Clear polycarbonate lens
Gaskets
O-ring silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
