GR3TL

Spec Sheet IES File Dimmer Compatibility List Downlight Accessory Compatibility List LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

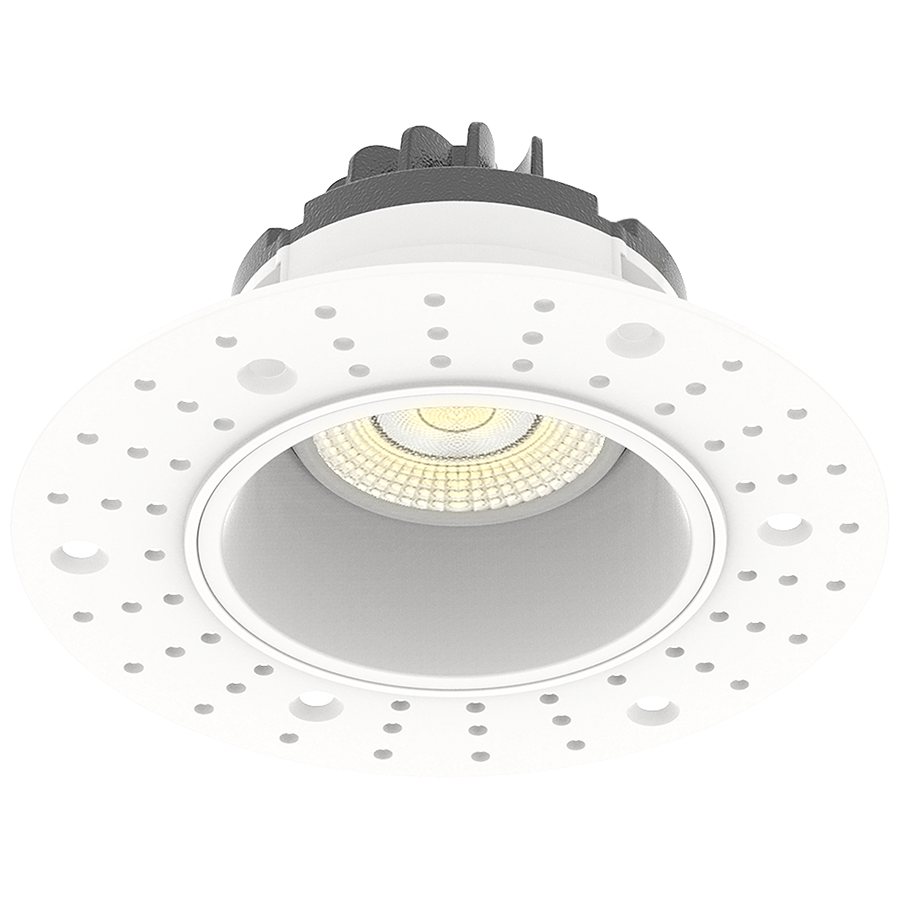

GR3TL

High-end trimless design

5 Field-adjustable CCTs

Deep regress, remote driver downlight

No recessed housing or J-box required

120V Triac dimmable driver included

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	2700/3000/3500/4000/5000K
Lumens	750 lm
Efficacy	67
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class 2
120V	0.08A
208V
240V
277V
Input Watts	9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.8 lbs

Technical Specifications

Performance

Product Type

Trimless Recessed

Description

Trimless downlights make any space feel high-end. Great for new construction and retrofit applications. Available in 2", 3" & 4" small apertures while still providing great lumen output.

Wattage Equivalency

60W Incandescent

Input Wattage

Lumens

2700K @ 701lm
3000K @ 734lm
3500K @ 796lm
4000K @ 817lm
5000K @ 833lm

Efficacy

2700K @ 81lm/W
3000K @ 86lm/W
3500K @ 95lm/W
4000K @ 97lm/W
5000K @ 97lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2, 60 Hz

THD

≤25%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

80mA

Operating Temperature

-13°C to 104°F (-25°C to 40°C)

Flicker

≤30%

Beam Angle

38°±5°

LED Characteristics

Color Temperature

Field adjustable via dip switch 2700K/3000K/3500K/4000K/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Remote Driver/Junction Box

Die-formed metal driver & junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through-branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

Recessed mounting, not for use inside downlight housings

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Clear

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Air Tight

Housing certified Air Tight as per ASTM E283

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Energy Star Approved

This product is ENERGY STAR® Version 1.0 Certified.

Energy Star ID

3417555

Certification Model Number

DLG0023(GR3TL)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

DRI-21-EMGR-DC-D10
Emergency driver T20

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
