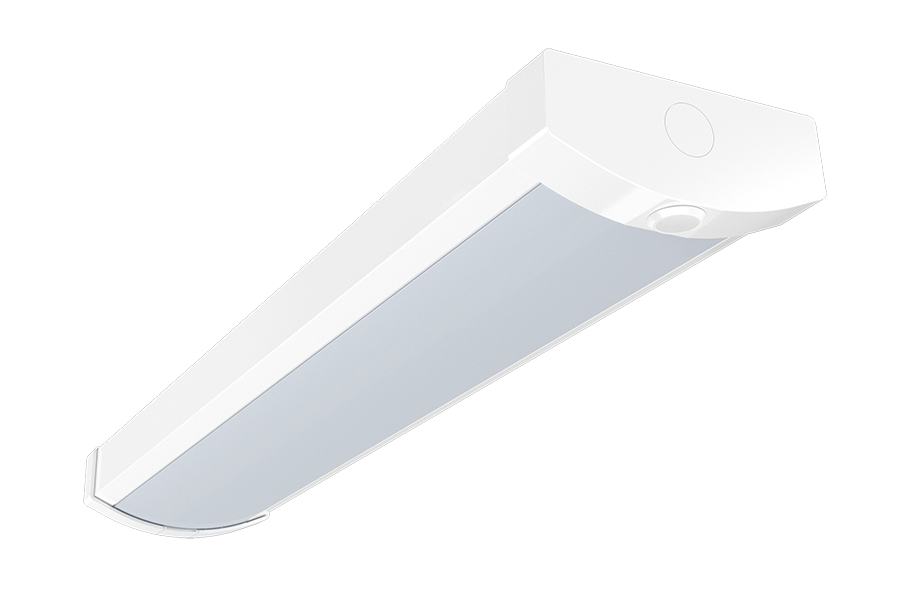

GUS17-2/MVS
25W 3500/4000/5000K
- 50,000-Hour LED lifespan
- 0-10V dimming standard
- DLC Listed
- 5-Year, limited warranty
Performance
| Watts | 25/20/15W |
| Color Temp | 3500/4000/5000K |
| Lumens | 1,798-2,974 lm |
| Efficacy | 117.4-123.6 lm/W |
| Color Accuracy | 82-86 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.21A/0.17A/0.13A |
| 208V | 0.12A/0.10A/0.08A |
| 240V | 0.11A/0.09A/0.07A |
| 277V | 0.10A/0.08A/0.06A |
| Input Watts | 25/20/15W |
Dimensions
Weight: 2.4 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
25W/20W/15W (factory default 25W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
25W/20W/15W (factory default 25W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-TXS13W (Direct Linear Ambient Luminaires)
DLC Product Code: S-TXS13W (Direct Linear Ambient Luminaires)
Electrical
Driver
Constant Current, Class 2, Class P, 120-277V, 50/60 Hz
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.11A, 277V: 0.1A
20W: 120V: 0.17A, 208V: 0.1A, 240V: 0.09A, 277V: 0.08A
15W: 120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.11A, 277V: 0.1A
20W: 120V: 0.17A, 208V: 0.1A, 240V: 0.09A, 277V: 0.08A
15W: 120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.6% at 120V, 14.51% at 277V
Power Factor
99.44% at 120V, 94.47% at 277V
Surge Protection
L-N: 1 kV
L/N-PG: 2 kV
L/N-PG: 2 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
25W: Replaces up to (1) F32T8 or (3) F17T8
20W: Replaces up to (1) F32T8 or (2) F17T8
15W: Replaces up to (1) F32T8 or (2) F17T8
20W: Replaces up to (1) F32T8 or (2) F17T8
15W: Replaces up to (1) F32T8 or (2) F17T8
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Max Power Temp Rating: 113°F (45°C)
Middle Power Temp Rating: 48°C (119°F)
Low Power Temp Rating: 51°C (124°F)
Middle Power Temp Rating: 48°C (119°F)
Low Power Temp Rating: 51°C (124°F)
Housing
Color coated steel sheets
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount. Can be mounted with v-hooks (ordered separately).
Sensor Settings
Operating Voltage
12V DC
Operating Current
≤25mA
Output
Dim/0-10V
Microwave Frequency
5.8GHz±75MHz
Microwave Power
<0.3mW
Stand-by Power
≤0.5W
Detection Area
25%/50%/75%/100%
Hold Time
5s/30s/1min/3min/5min/10min/20min/30min
Daylight Threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by Period
0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by Dimming Level
10%/20%/30%/50%
Operating Temperature
-20°C~+60°C
Mounting Height
Max 12m/39.37ft. Ceiling Mounted
Detection Range
Max 14m/45.92 ft Ceiling Mounted
Motion Detection
0.5~1.5m/s
Lux On-Off
Adopted dual PD technology. GUS17-MVS is able to differenciate artificial light brightness from natural light after installed inside.
Remote Control Accessory
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
