GUS2

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

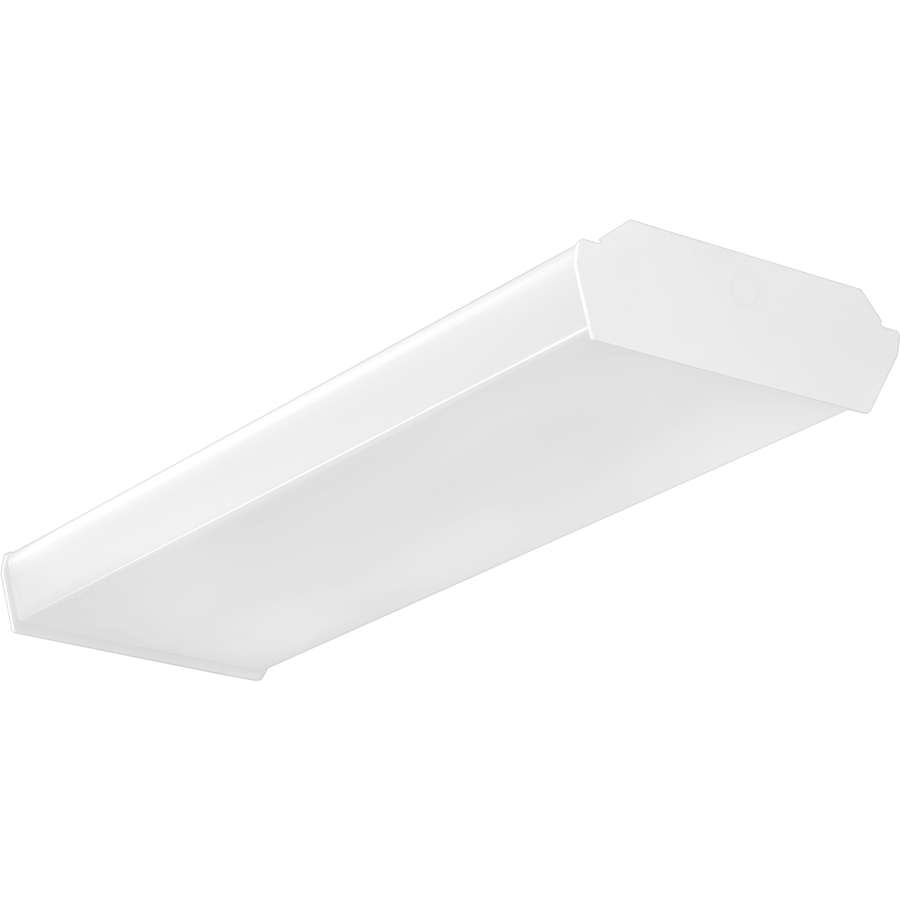

GUS2

25W 3000/3500/4000/5000/6500K

Affordable, easy to use LED wrap fixture

0-10V dimming, standard

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	25/20/15W
Color Temp	3000/3500/4000/5000/6500K
Lumens	2232-3651 lm
Efficacy	139.5-148.2 lm/W
Color Accuracy	82-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.20A/0.16A/0.12A
208V	0.13A/0.11A/0.09A
240V	0.11A/0.09A/0.07A
277V	0.10A/0.08A/0.06A
Input Watts	15.6-25.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
25/20/15W (factory default 25W)
Color Temperature Adjustable:
3000K, 3500K, 4000K, 5000K and 6500K(factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Dim to Off

Yes

Surge Protection

2 kV + 4 kV

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Light Distribution

115°

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Iron

Reflector Material

Iron

Lens

Bio-based Polymethy Methacrylate (PMMA) lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Surface mount. Can be mounted with v-hooks (ordered separately).

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
