PAR20-7-927-25D-DIM has been discontinued. You have been redirected to its new replacement, PAR20FA-5.5-9CCT-25D-DIM
Return to PAR20-7-927-25D-DIM
HALV10L927-CW-CU
Performance
| Watts | 14W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 340 lm |
| Efficacy | 24.3 lm/W |
| Color Accuracy | 95 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.06A |
| Input Watts | 14W |
Dimensions
Weight: 4.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
ADA Compliant
Meets ADA Requirements for wall-mounted luminaires.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 60W Incandescent
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120-277VAC, 50/60Hz, 350mA or 640mA
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only)
THD
19.8% at 120V, 21.7% at 277V
Power Factor
96.4% at 120V, 85.7% at 277V
Construction
Housing
Die-cast and extruded aluminum
Lens

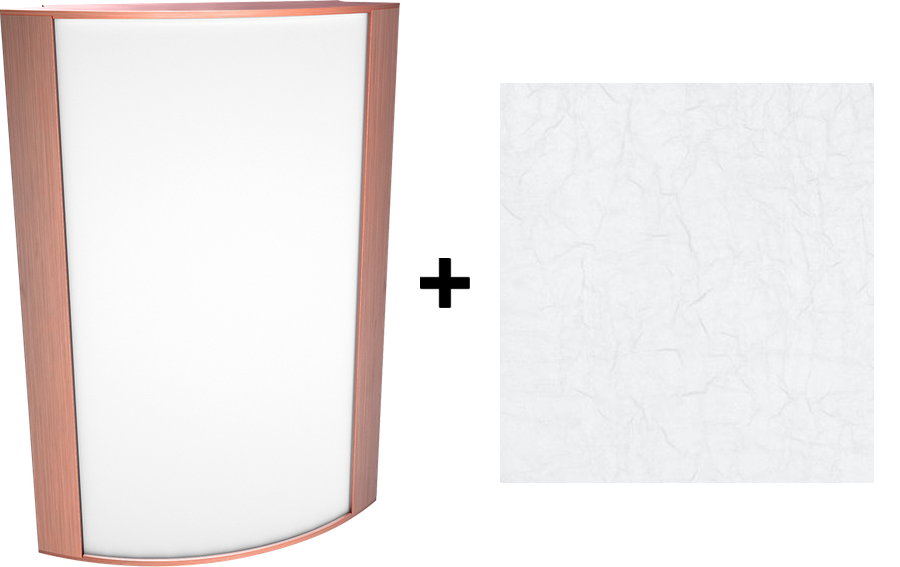

Acrylic lens with crush polar white print. See installation sheet for cleaning instructions.
Operating Temperature
-4°F(-20°C) to 104°F (40°C )
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Luxuriously Electroplated Copper
Installation
Mounting
Wall mount with junction box included
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
