HAZEXITX
- UL 1598 and 844
- IP66 Rating protects against dust & water ingress<
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty

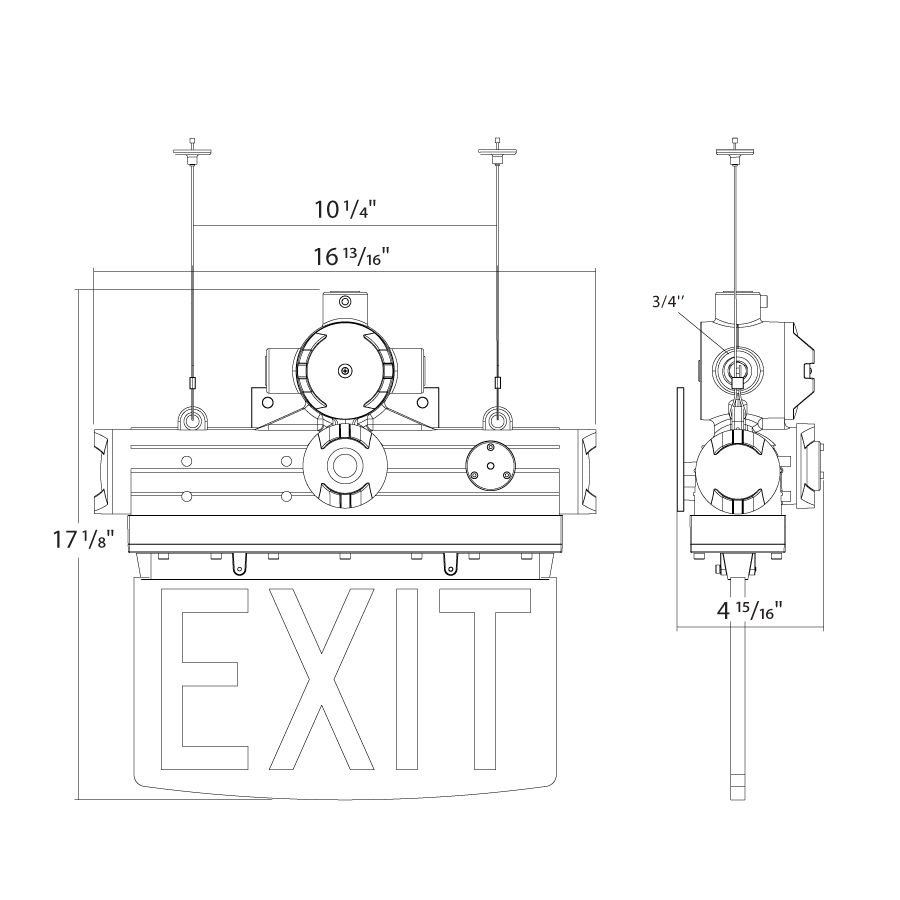

Dimensions
Weight: 7.1 lbs
Technical Specifications
Hazardous Location Classifications
UL 844
Electric lighting fixtures for use in hazardous (classified) locations
Class 1, Division 1 (Groups B, C, D)
Class 1 (Hazardous Material in Surrounding Atmosphere):
Flammable vapors or gases may be present
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups B, C, D (Hazardous Material in Surrounding Atmosphere):
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Flammable vapors or gases may be present
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups B, C, D (Hazardous Material in Surrounding Atmosphere):
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Class 1, Division 2 (Groups A, B, C, D)
Class 1 (Hazardous Material in Surrounding Atmosphere):
Flammable vapors or gases may be present
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups A, B, C, D (Hazardous Material in Surrounding Atmosphere):
A = Acetylene
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Flammable vapors or gases may be present
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups A, B, C, D (Hazardous Material in Surrounding Atmosphere):
A = Acetylene
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Class 2, Division 1 (Groups E, F, G)
Class 2 (Hazardous Material in Surrounding Atmosphere):
Combustible dust
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups E, F, G (Hazardous Material in Surrounding Atmosphere):
E = Combustible metal dust: aluminum, commercial alloys, magnesium
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Combustible dust
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups E, F, G (Hazardous Material in Surrounding Atmosphere):
E = Combustible metal dust: aluminum, commercial alloys, magnesium
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Class 2, Division 2 (Groups F, G)
Class 2 (Hazardous Material in Surrounding Atmosphere):
Combustible dust
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups F, G (Hazardous Material in Surrounding Atmosphere):
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Combustible dust
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups F, G (Hazardous Material in Surrounding Atmosphere):
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Class 3
Class 3 (Hazardous Material in Surrounding Atmosphere):
Easily ignitable flyings or fibers may be present
Easily ignitable flyings or fibers may be present
Compliance
UL 121201
UL standard that specifies requirements for nonincendive electrical equipment intended for use in hazardous locations
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Construction
Cold Weather Starting
The minimum starting temperature is 32°F/0°C
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Lens
Glass
Gaskets
High-temperature silicone
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.04A
Surge Protection
L-N:1 kV
L/N-FG:2 kV
L/N-FG:2 kV
Aux Power Supply
No
Dim to Off
No
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
