• Field-adjustable color temperature — 2700/3000/3500/4000/5000K at 90 CRI, set at install

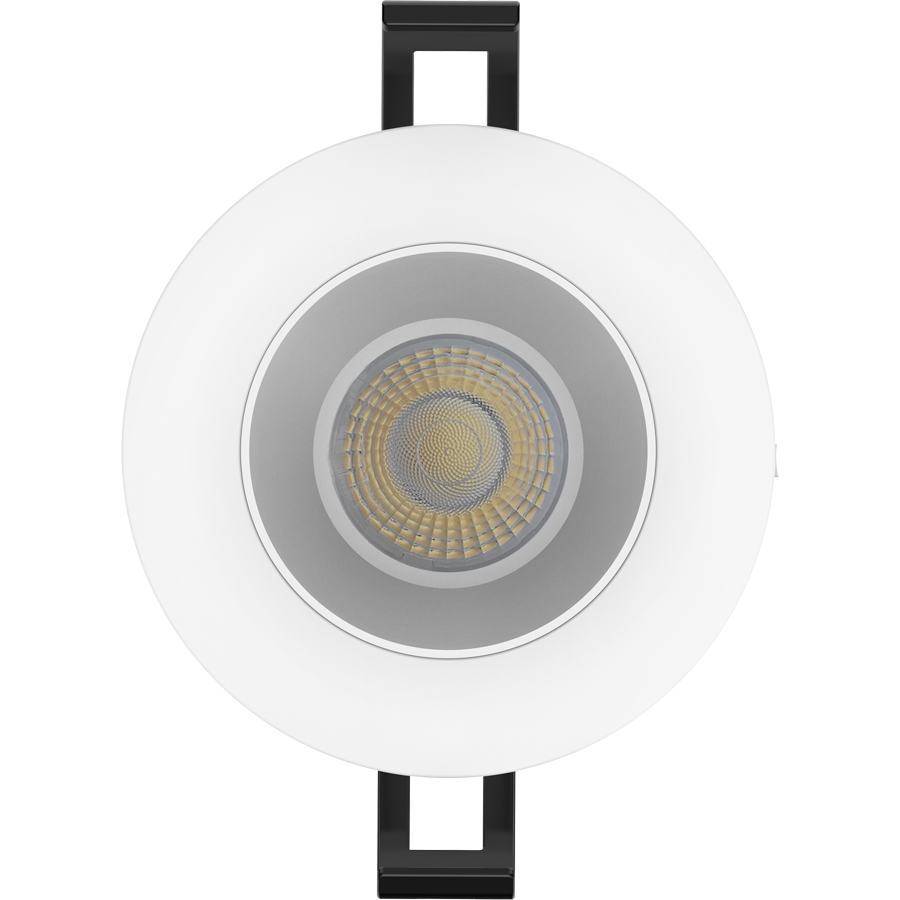

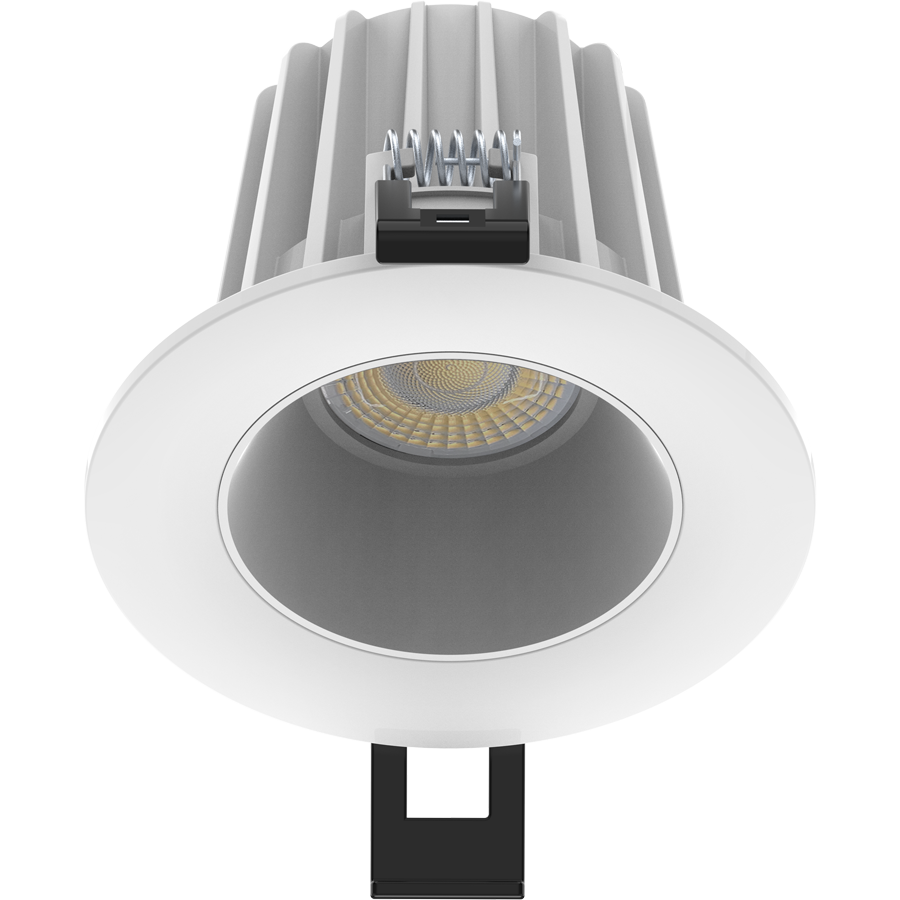

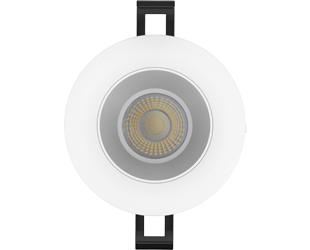

  • Deep regress aperture for low-glare visual comfort

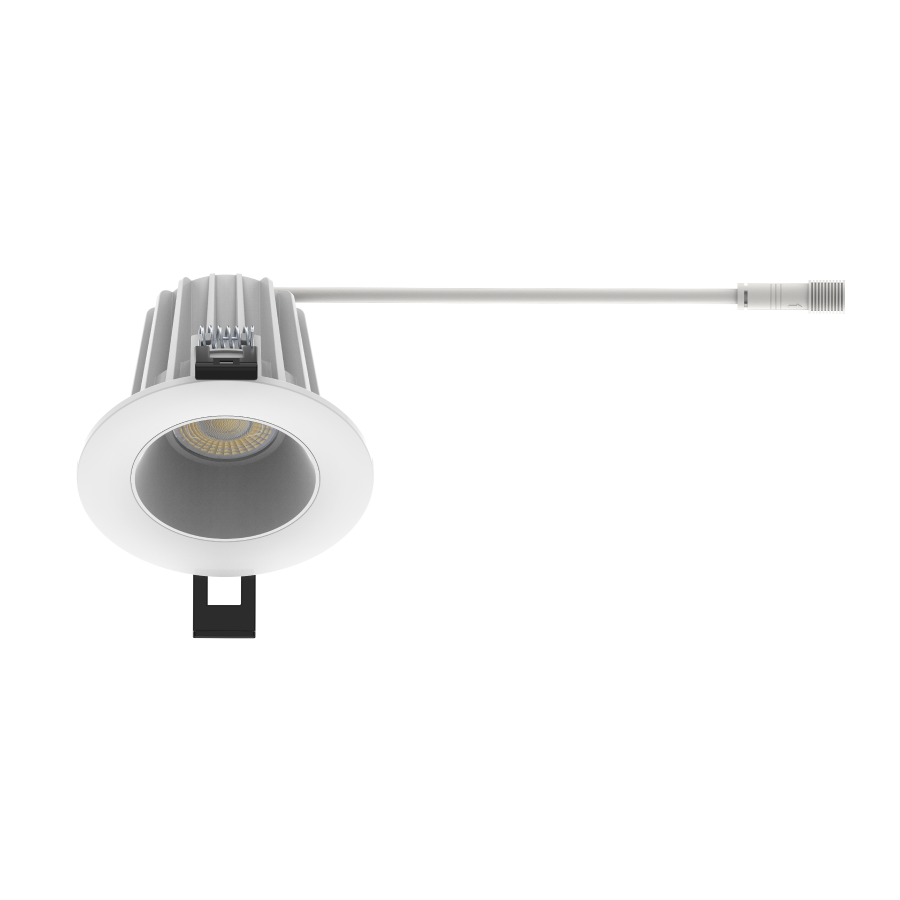

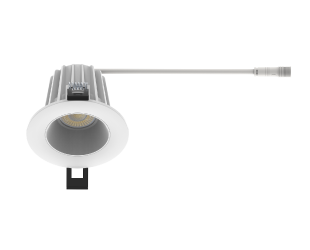

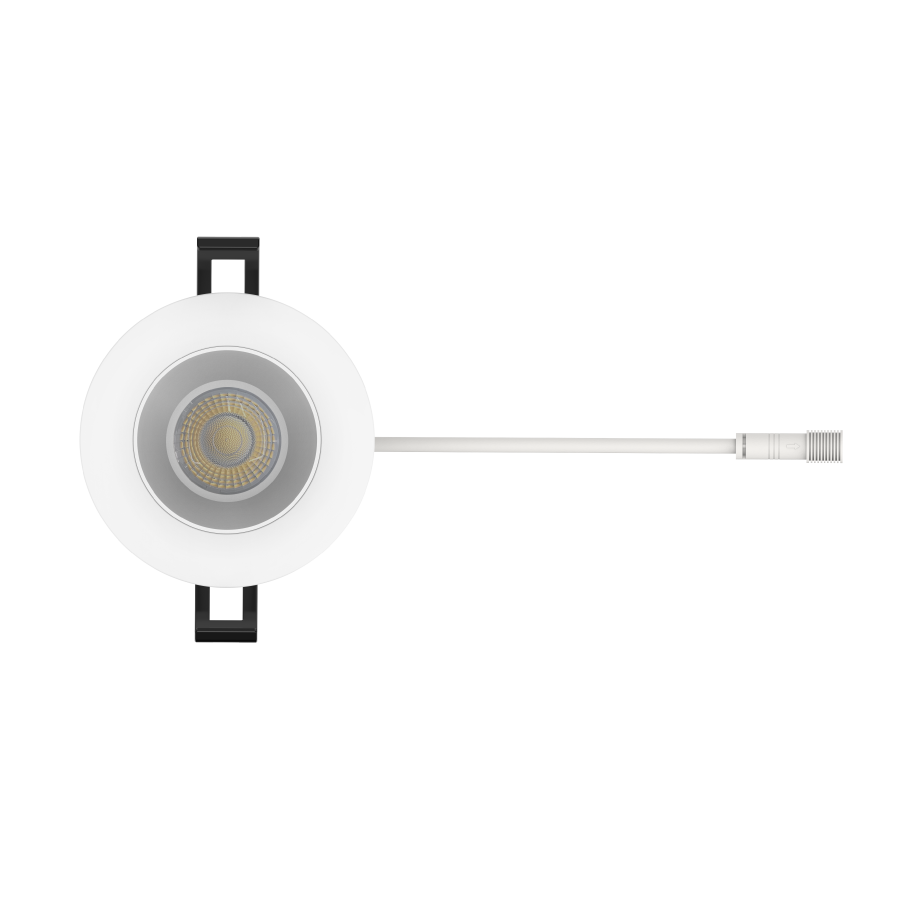

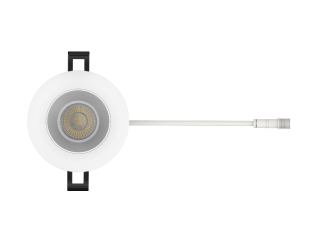

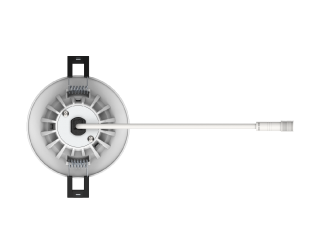

  • Remote driver — no housing, no can, no J-box; fixture depth from 2 3/8"
  • New construction or retrofit applications
  • Cut-out template in every box and a quick-connect driver lead — no wiring at the fixture
View Technical Specs
Performance
Watts 15W
Color Temp
Lumens 1,000 lm
Efficacy 67
Color Accuracy
L70 Lifespan
Type Constant Current
120V
208V
240V
277V
Input Watts 15W
Dimensions
Link to Dimension Drawing

Weight: 1.0 lbs

Technical Specifications
Performance
Product Type
Deep Regress Downlight
Description
Remote driver downlights are great for new construction and retrofit applications. Downlights provide small-aperture aesthetic, available in recessed, deep recessed and gimbal models in 2", 3", and 4" sizes.
Lumens (Nominal)
2700K @ 987lm; 3000K @ 1,070lm; 3500K @ 1,146lm; 4000K @ 1,181lm; 5000K @ 1,176lm
Efficacy
2700K @ 69lm/W; 3000K @ 77lm/W: 3500K @ 85lm/W; 4000K @ 86lm/W; 5000K @ 83lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2 120V 60 Hz; 120V: 125mA
THD
≤25%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
125mA
Operating Temperature
-13°F to 104°F (-25°C to 40°C)
Maximum Beam Candela Power (MBCP)
2,270
Flicker
≤30%
Emergency Operation
Not for emergency use.
LED Characteristics
Beam Angle
38°±5°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Suitable for 900°C permitted in box. (3) quick snap-in connectors for quick and reliable line voltage connections. (4) conduit pry-outs; Listed for Maximum of (6) 12AWG through branch circuit conductor, Easy to wire in 3in/3out (plus ground) applications.
Mounting

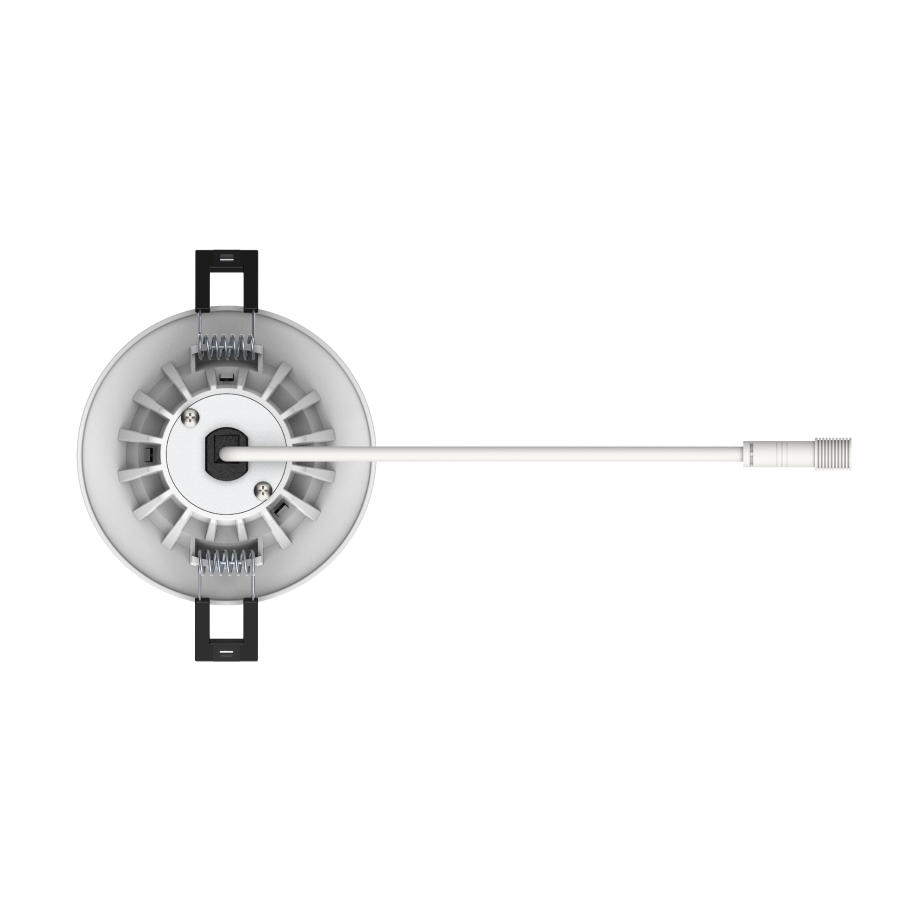

No housing required. Two tension steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 15/16". New construction frames are available.
Cable
CM/FT4 Plenum rated cable (per UL 1581)
Construction
Size
3"
Shape
Round
Finish
White
Enclosure Material
Corrosion-resistant metal housing for reliable performance
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Energy Star ID
2571992
Certification Model Number
DLR0138(R3-15)
California Title 20 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
DLPLATE-3/NB
3" Mounting plate w/nailer bar

DLPLATE/AS/23456
2", 3", 4", 5", 6" Asymmetrical short mounting plate

DLPLATE/ASL/23456
2", 3", 4", 5", 6" Asymmetrical long mounting plate

EXTCBL-[6][10][20]-3P
Extension cable

R3-DRI-15-UNV
15W Driver 120-277V
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
