HAZX40CF
- UL 1598 and 844
- IP66 Rating protects against dust & water ingress<
- DLC Listed
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 40W |
| Color Temp | 5000K |
| Lumens | 5,394 lm |
| Efficacy | 138.3 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.42A |
| 208V | 0.24A |
| 240V | 0.20A |
| 277V | 0.18A |
| Input Watts | 39W |

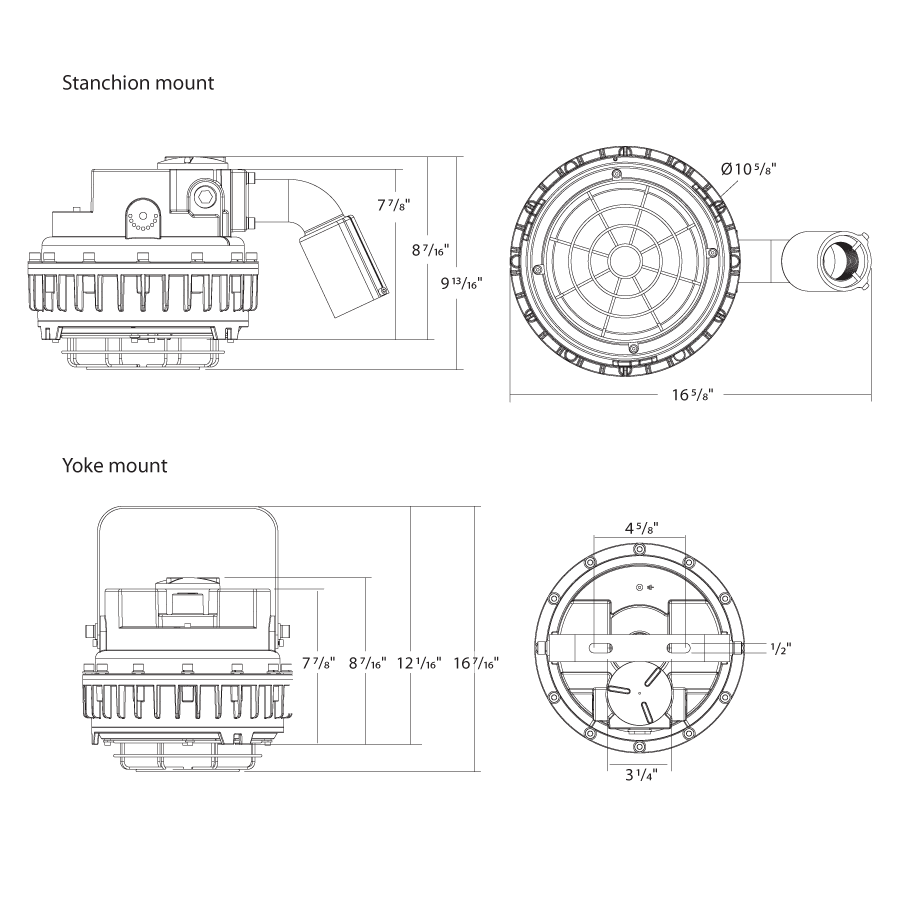

Dimensions
Weight: 26.2 lbs
Technical Specifications
Hazardous Location Classifications
UL 844
Electric lighting fixtures for use in hazardous (classified) locations
Class 1, Division 1 (Groups B, C, D)
Class 1 (Hazardous Material in Surrounding Atmosphere):
Flammable vapors or gases may be present
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups B, C, D (Hazardous Material in Surrounding Atmosphere):
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Flammable vapors or gases may be present
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups B, C, D (Hazardous Material in Surrounding Atmosphere):
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Class 1, Division 2 (Groups A, B, C, D)
Class 1 (Hazardous Material in Surrounding Atmosphere):
Flammable vapors or gases may be present
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups A, B, C, D (Hazardous Material in Surrounding Atmosphere):
A = Acetylene
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Flammable vapors or gases may be present
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups A, B, C, D (Hazardous Material in Surrounding Atmosphere):
A = Acetylene
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene
Class 2, Division 1 (Groups E, F, G)
Class 2 (Hazardous Material in Surrounding Atmosphere):
Combustible dust
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups E, F, G (Hazardous Material in Surrounding Atmosphere):
E = Combustible metal dust: aluminum, commercial alloys, magnesium
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Combustible dust
Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions
Groups E, F, G (Hazardous Material in Surrounding Atmosphere):
E = Combustible metal dust: aluminum, commercial alloys, magnesium
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Class 2, Division 2 (Groups F, G)
Class 2 (Hazardous Material in Surrounding Atmosphere):
Combustible dust
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups F, G (Hazardous Material in Surrounding Atmosphere):
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Combustible dust
Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions
Groups F, G (Hazardous Material in Surrounding Atmosphere):
F = Combustible carbonaceous dust: carbon black charcoal, coal, coke dusts
G = Other combustibles dusts: chemicals, flour, grain, plastic, and wood
Class 3
Class 3 (Hazardous Material in Surrounding Atmosphere):
Easily ignitable flyings or fibers may be present
Easily ignitable flyings or fibers may be present
UL 1598
Electric lighting fixtures for use in non-hazardous locations
UL 1598A
UL 1598A includes requirements for materials that can withstand exposure to saltwater, humidity, and other corrosive elements.
Construction
IK Rating
IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 131°F (55°C)
Housing
Aluminum
Lens
Glass
Gaskets
High-temperature silicone
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-QKSMP0
DLC Product Code: S-QKSMP0
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.42A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
Dimming Driver
Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims down to 10%.
THD
3.46% at 120V, 11.69% at 277V
Power Factor
99.6% at 120V, 92.0% at 277V
Surge Protection
L-N:6 kV
L/N-FG:10 kV
L/N-FG:10 kV
Aux Power Supply
No
Dim to Off
No
Installation
Mounting
Surface and pendant mount. Remove yoke for pendant mount.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
