HAZXL34-80

Class 1, Division 1, Groups C, D

IP66,UL 844, UL1598, UL 1598A and UL8750 ratings

DLC Listed

100,000-Hour LED lifespan

5-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	80W
Color Temp	5000K
Lumens	11,466 lm
Efficacy	143.7
Color Accuracy	82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.80A
208V	0.46A
240V	0.40A
277V	0.35A
Input Watts	79.8W

EZ-Layout

Create Custom Lighting Layout

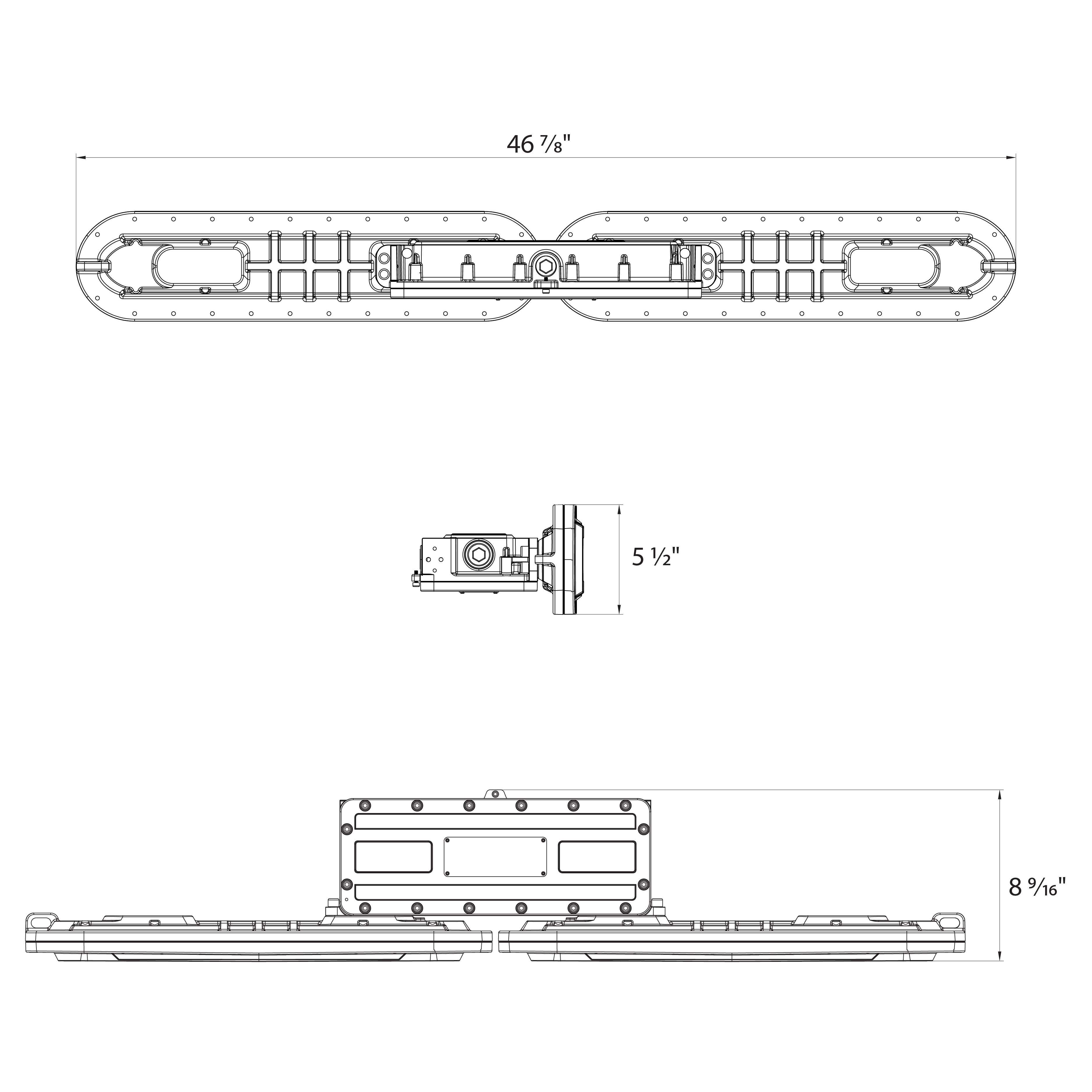

Dimensions

Weight: 48.3 lbs

Technical Specifications

Hazardous Location Classifications

Class 1, Division 1 (Groups C, D)

Class 1 (Hazardous Material in Surrounding Atmosphere):
Flammable vapors or gases may be present

Division 1 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under normal operating conditions

Groups C, D (Hazardous Material in Surrounding Atmosphere):
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene

NEC/CE T-Code (Class 1, Div 1, Group C,D)

UL 844

Electric lighting fixtures for use in hazardous (classified) locations

UL 1598

Electric lighting fixtures for use in non-hazardous locations

UL 1598A

UL 1598A includes requirements for materials that can withstand exposure to saltwater, humidity, and other corrosive elements.

UL 8750

Light Emitting Diode (LED) Light Sources for Use in Lighting Products

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP66 for dust and water

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-HS398T

Electrical

Driver

Constant Current, Class1, Class P, 50/60 Hz, 120-277V, 120V: 0.80A, 208V: 0.46A, 240V: 0.40A, 277V: 0.35A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.78% at 120V, 7.29% at 277V

Power Factor

99.8% at 120V, 93.5% at 277V

Aux Power Supply

Dim to Off

Yes

Surge Protection

L-N: 6 kV
L/N-PE: 10 kV

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Rated Ambient Temperature Range

-40°F (-40°C) to 140°F (60°C), T4A

Housing

Die-cast aluminum

Tilt Increment

25.7 degree increments (yoke bracket)

Gaskets

High-temperature silicone

Green Technology

Mercury and UV free. RoHS-compliant components.

IK Rating

IK09 Protected against 10 joules impact. Equivalent to impact of 5kg mass dropped from 200mm above impacted surface.

Lens

Tempered glass

Reflector

White polycarbonate

Effective Projected Area

3.02 ft²

Finish

Formulated for high durability and long-lasting color

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Installation

Mounting

All models come standard with three mounting options: pendant mount (pendant by others), chain mount, and a yoke bracket for surface mount. A separate kit is available for ceiling mount.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
