HB2B - RAB Lighting

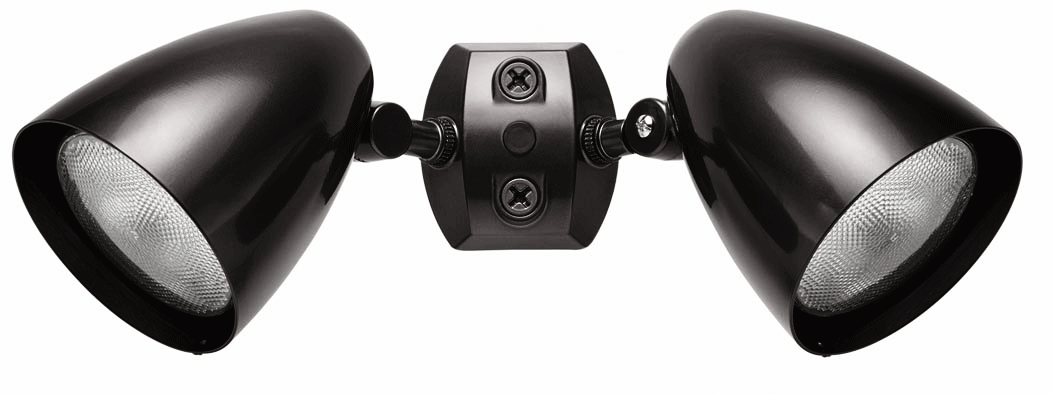

HB2B

Spec Sheet Spec Sheet

HB2B

Lamp recessed 1" from lip for side glare reduction

Set screw for hood, grill or visor attachment

Heavy duty mounting arm with internal O-ring, locking teeth, and stainless steel screw

Large Silicone rubber gasket provides weatherproof protection around the lamp and socket

HV1 Visor with integral guard and glass lens for maximum glare reduction and lamp protection

HG1 Guard: Protects lamp from damage and vandalism

HH1 Hood with glass lens reduces glare and protects lamp from water and impact damage

View Technical Specs

View Price & Availability

Performance

Watts	300W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts

Dimensions

Weight: 3.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground. Can be aimed above horizontal with accessory hood or visor.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Electrical

Sockets

Porcelain with all copper current carrying components

Other

Compatibility with old H100

H101 floods and accessories replace the discontinued RAB H100 and accessories. Parts are not interchangeable. Contact factory for price and availability of the old H100 Series.

Construction

Swivels

Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts.

Housings

Die-cast aluminum with powder coat finish

Gaskets

High-temperature silicone rubber extends around both socket and lamp

Optical

Lamps

Medium base Par-38 lamps up to 150W. Halogen lamps give brighter light and choice of beam spreads.
