• Lamp recessed 1" from lip for side glare reduction
  • Set screw for hood, grill or visor attachment
  • Heavy duty mounting arm with internal O-ring, locking teeth, and stainless steel screw
  • Large Silicone rubber gasket provides weatherproof protection around the lamp and socket
  • HV1 Visor with integral guard and glass lens for maximum glare reduction and lamp protection
  • HG1 Guard: Protects lamp from damage and vandalism
  • HH1 Hood with glass lens reduces glare and protects lamp from water and impact damage
View Technical Specs
Performance
Watts 300W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan
Type
120V
208V
240V
277V
Input Watts

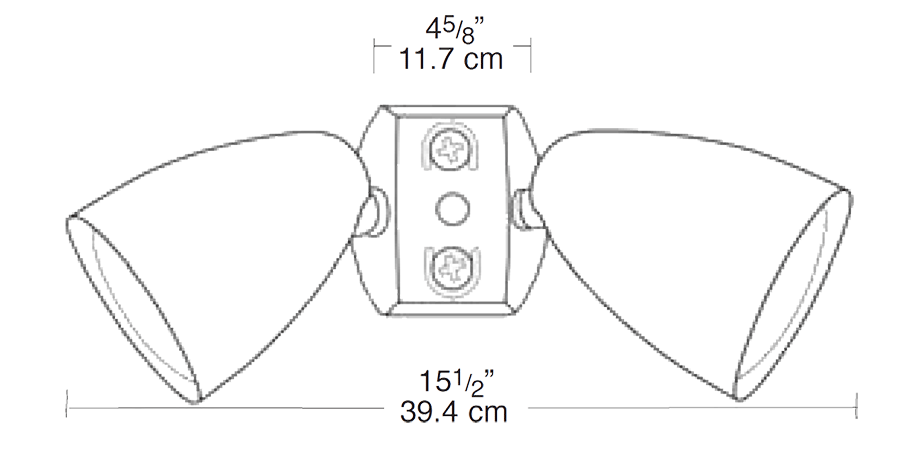

Dimensions
Link to Dimension Drawing

Weight: 3.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4ft (1.2m) of the ground. Can be aimed above horizontal with accessory hood or visor.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Sockets
Porcelain with all copper current carrying components
Other
Compatibility with old H100
H101 floods and accessories replace the discontinued RAB H100 and accessories. Parts are not interchangeable. Contact factory for price and availability of the old H100 Series.
Construction
Swivels
Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts.
Housings
Die-cast aluminum with powder coat finish
Gaskets
High-temperature silicone rubber extends around both socket and lamp
Optical
Lamps
Medium base Par-38 lamps up to 150W. Halogen lamps give brighter light and choice of beam spreads.

Recently Viewed Products

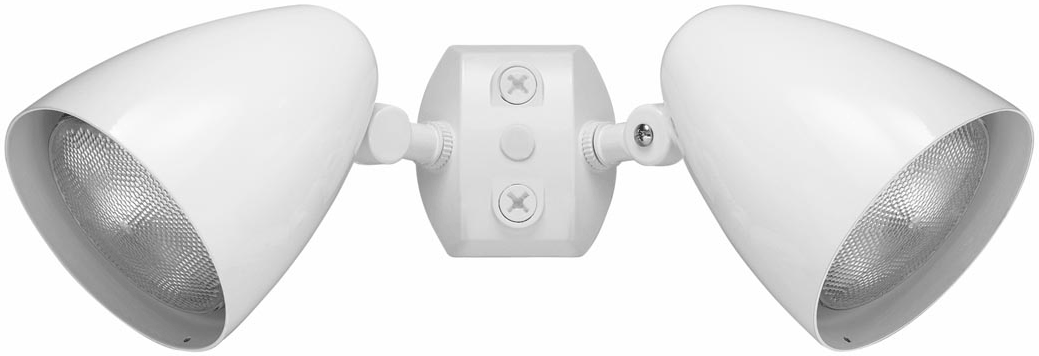

 This is a link to the product HB2W HB2W
