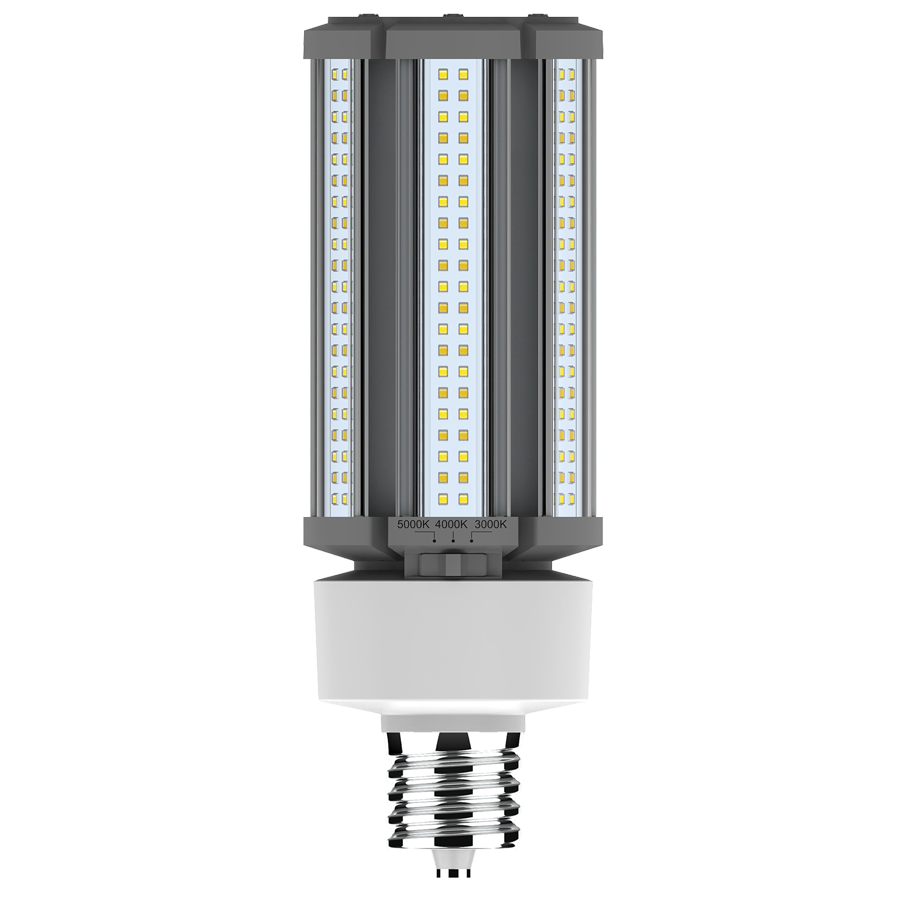

HID-45-EX39-8CCT-BYP/5SP/480V
HID-45-EX39-8CCT-BYP/5SP/480V
- Replacement for traditional high voltage Metal Halide or High Pressure Sodium HID Lamps
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Adjustable CCT allows for in-field customization
- Rated for use in enclosed fixtures in dry or damp locations
- AUX port for integrating individual, lamp-level control
Performance
| Watts | 45W |
| Color Temp | 3000/4000/5000K |
| Lumens | 5,850/ 6,075/ 6,300 lm |
| Efficacy | 130/135/140 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan |
| Input Voltage | N/A |
| Power Factor | Power Factor-39199 |
| Flicker | N/A |
| THDi | THD-2109 |
Dimensions
Weight: 2.0 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Description
Adjustable color temperature lamps replace traditional HID lamps for high voltage applications.
Wattage Equivalency
175W Metal Halide
Input Wattage
45W
Lumens
3000K @ 5,850lm; 4000K @ 6,075lm; 5000K @ 6,300lm
Efficacy
3000K @ 130lm/W; 4000K @ 135lm/W; 5000K @ 140lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes
Input Voltage
277-480V
Operating Frequency
50/60Hz
Input Current @ 240V (mA)
206mA
Input Current @ 277V (mA)
181mA
Input Current @ 480V (mA)
104mA
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Flicker
<30%
Surge Protection
4kV
LED Characteristics
Color Temperature
Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Vertical/Horizontal
Base Type
EX39 Exclusionary Mogul
Construction
Bulb Shape
Post top (sensor)
Endcap Material
Metal
Enclosure Material
Polycarbonate
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
IP Rating
IP64
Energy Star Approved
No.
There is no product category on Energy Star for this lamp to qualify under.
There is no product category on Energy Star for this lamp to qualify under.
Certification Model Number
H20027(HID-45-EX39-8CCT-BYP/5SP 480V)
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Not Compliant
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Compatible Products
3-Pin & 5-Pin Smart Sensors
Add the Lightcloud Blue 5-Pin Plug-in Controller with optional sensor to connect to the Lightcloud Blue Bluetooth Mesh Wireless Network Lighting Control System. Learn more at Ww.Lightcloud.com.
Add the Lightcloud Blue 5-Pin Plug-in Controller with optional sensor to connect to the Lightcloud Blue Bluetooth Mesh Wireless Network Lighting Control System. Learn more at Ww.Lightcloud.com.
Accessories
CONTROL/W/AUX/5SP/LCB
Lightcloud Blue 5-Pin Plug-in Controller
CONTROL/W/AUX/5SP/LCBS
Lightcloud Blue 5-Pin Plug-in Controller with PIR Sensor
CONTROL/W/AUX/5SP/LCBS/MVS
Lightcloud Blue 5-Pin Plug-in Controller with MVS Senso
DAYLIGHT-S
3-Pin Daylight photocell sensor
MW-S
3-Pin Microwave sensor w/photocell
PIR-S
3-Pin Passive Infrared sensor w/photocell
SMW-S
3-Pin Microwave sensor
SPIR-S
3-Pin Passive Infrared sensor
XFMR200-480-277
Transformer 200W 480V
Lightcloud Blue 5-Pin Plug-in Controller
CONTROL/W/AUX/5SP/LCBS
Lightcloud Blue 5-Pin Plug-in Controller with PIR Sensor
CONTROL/W/AUX/5SP/LCBS/MVS
Lightcloud Blue 5-Pin Plug-in Controller with MVS Senso
DAYLIGHT-S
3-Pin Daylight photocell sensor
MW-S
3-Pin Microwave sensor w/photocell
PIR-S
3-Pin Passive Infrared sensor w/photocell
SMW-S
3-Pin Microwave sensor
SPIR-S
3-Pin Passive Infrared sensor
XFMR200-480-277
Transformer 200W 480V
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
