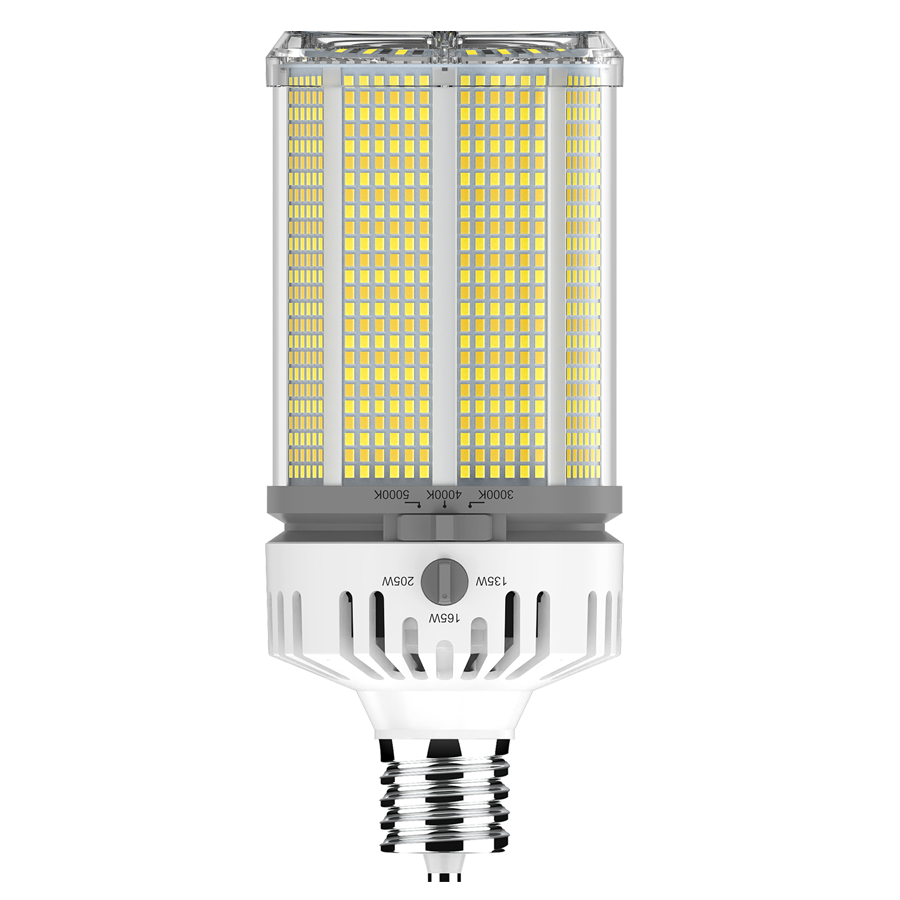

HIDFA-205S-EX39-8CCT-BYP
HIDFA-205S-EX39-8CCT-BYP
- Replaces traditional metal halide or high pressure sodium HID lamp
- Adjustable wattage and CCT allows for in-field customization
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed fixtures in dry or damp locations
Performance
| Watts | 135/165/205W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 30,750/24,750/20,250 lm |
| Efficacy | 150 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Description
Field adjustable lumen output and CCT provide installation flexibility when replacing traditional HID.
Wattage Equivalency
750W Metal Halide
Input Wattage
205W/165W/135W
Lumens
30,750/24,750/20,250lm
Efficacy
150lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes
Input Voltage
100-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
1,761mA
Input Current @ 208V (mA)
1,048mA
Input Current @ 240V (mA)
939mA
Input Current @ 277V (mA)
822mA
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Flicker
<30%
Surge Protection
4kV
LED Characteristics
Color Temperature
Field adjustable via dip switch 3000K/4000K/5000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Vertical/Horizontal
Construction
Base Type
EX39 Exclusionary Mogul
Finish
Clear
Bulb Shape
Post Top
Endcap Material
Metal
Enclosure Material
Polycarbonate
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
IP Rating
IP64
Energy Star Approved
No.
There is no product category on Energy Star for this lamp to qualify under.
There is no product category on Energy Star for this lamp to qualify under.
Certification Model Number
H20031(HIDFA-205S-EX39-8CCT-BYP)
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Not Compliant
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Accessories
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
