IVAT3-45LWM740KU/7PR
IVAT3-45LWM740KU/7PR large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 38W
Color Temp 4000K (Neutral)
Lumens 4,342 lm
Efficacy 108.8 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.33A
208V 0.19A
240V 0.17A
277V 0.14A
Input Watts 39.9W
Dimensions
Link to Dimension Drawing

Weight: 19.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-703G9M
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.36% at 120V, 17.01% at 277V
Power Factor
99% at 120V, 92% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs

Recently Viewed Products

This is a link to the product IVAT3-45LWM740KU/7PR IVAT3-45LWM740KU/7PR
Area Lights 4342 Lumens Ivat3 Type Iii 38W Wall Mount 70Cri 4000K Black 120V-277V 0-10V Dimming 7-Pin Receptacle
This is a link to the product IVAT4-75LWM730WH/WS2 IVAT4-75LWM730WH/WS2
Area Lights 6949 Lumens Ivat4 Type Iv 67W Wall Mount 70Cri 3000K White 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor

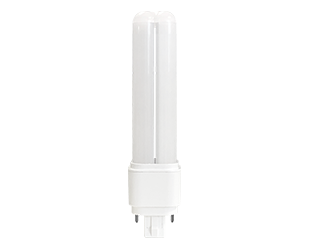

This is a link to the product PLC-7-O-835-DIR PLC-7-O-835-DIR
