IVAT4-100LSF740ZU/WS4
IVAT4-100LSF740ZU/WS4 large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 94W
Color Temp 4000K (Neutral)
Lumens 10,832 lm
Efficacy 114.5 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.83A
208V 0.48A
240V 0.42A
277V 0.36A
Input Watts 94.6W
Dimensions
Link to Dimension Drawing

Weight: 13.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-KLZDCG
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.3% at 120V, 8.4% at 277V
Power Factor
99.8% at 120V, 96.7% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product IVAT4-100LSF740ZU/WS4 IVAT4-100LSF740ZU/WS4
Area Lights 10832 Lumens Ivat4 Type Iv 94W Slipfitter Mount 70Cri 4000K Bronze 120V-277V 0-10V Dimming 40 Feet Lens Wattstopper Sensor
This is a link to the product ALED3T125SFRG/480/D10/LC ALED3T125SFRG/480/D10/LC
Arealights 14996 Lumens Aled Type Iii Slipfitter 5000K 125W 480V 0-10V Dimming Roadway Gray Lightcloud Controller
This is a link to the product HALV10L927-FG3-K/BL HALV10L927-FG3-K/BL
Architectural 707 Lumens Halv Forward Light 14W 90Cri 2700K Frosted Lens With Grill Style 3 Black Finish Bi-Level Control

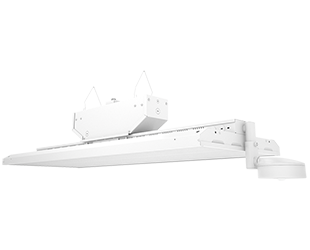

This is a link to the product ARBAY4-260/LCS/E2 ARBAY4-260/LCS/E2
