IVAT5S-100LPA730KH/7PR
Performance
| Watts | 94W |
| Color Temp | 3000K (Warm) |
| Lumens | 10,089 lm |
| Efficacy | 107.6 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 93.8W |
Dimensions
Weight: 15.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-FOWEQ7
DLC Product Code: S-FOWEQ7
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
14.4% at 480V
Power Factor
94.9% at 480V
7-Pin Receptacle
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum
IES Classification
Type VS distributes light in a square symmetrical pattern and is meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary
Mounting
Universal pole adapter
Lens
Diffused Polymethyl Methacrylate (PMMA)
Effective Projected Area
EPA = 0.61
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Recently Viewed Products
IVAT5S-100LPA730KH/7PR
Area Lights 10089 Lumens Ivat5S Type V Square 94W Universal Pole Mount 70Cri 3000K Black 347-480V 0-10V Dimming 7-Pin Receptacle
FXLEDMT/7PR
Floodlights 30156-45135 Lumens Flexflood-M Field Adjustable 213-346W Trunnion 5000K/4000K 120V-277V 7 Pin Receptacle Bronze
GN5LED26YSTR
Decorative 1348 Lumens Gooseneck 26W 3000K Pole 20 Inches High & 19 Inches From Pole Straight Shade Flood 15 Inches Red
IVAT5S-100LPA730KH/7PR
Area Lights 10089 Lumens Ivat5S Type V Square 94W Universal Pole Mount 70Cri 3000K Black 347-480V 0-10V Dimming 7-Pin Receptacle
FXLEDMT/7PR
Floodlights 30156-45135 Lumens Flexflood-M Field Adjustable 213-346W Trunnion 5000K/4000K 120V-277V 7 Pin Receptacle Bronze

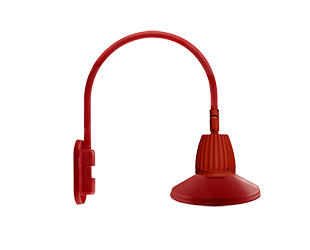

GN5LED26YSTR
