IVGT5-50L750ZU

Spec Sheet IES File Instructions Spec Sheet EZ Layout

IVGT5-50L750ZU

View Technical Specs

Performance

Watts	45W
Color Temp	5000K (Cool)
Lumens	6,045 lm
Efficacy	131.4 lm/W
Color Accuracy	73 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.39A
208V	0.22A
240V	0.19A
277V	0.17A
Input Watts	46W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 7.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP66 for dust and water

Title 24 Compliant

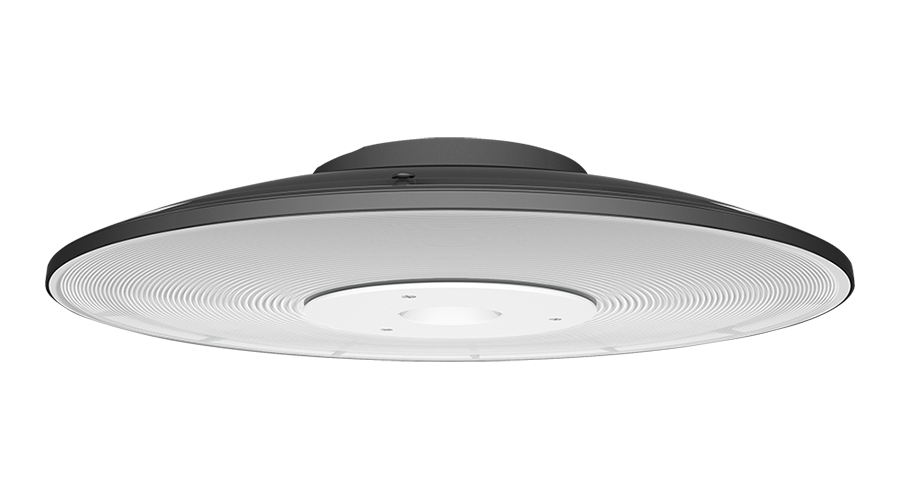

An IVEPARK edgelit garage fixture with a WS2 control option can be used to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,c)

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

Up to 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 150W Metal Halide

Construction

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Diffused Polymethyl Methacrylate (PMMA)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Surface mount standard (accessories available for wall, pole and trunnion mount)

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Electrical

Driver

Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional, 120V: 0.38A, 208V: 0.22A, 240V: 0.19A, 277V: 0.17A

THD

13.18% at 120V, 13.27% at 277V

Power Factor

98.8% at 120V, 95.33% at 277V
