KAI-2T70/7PRS

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

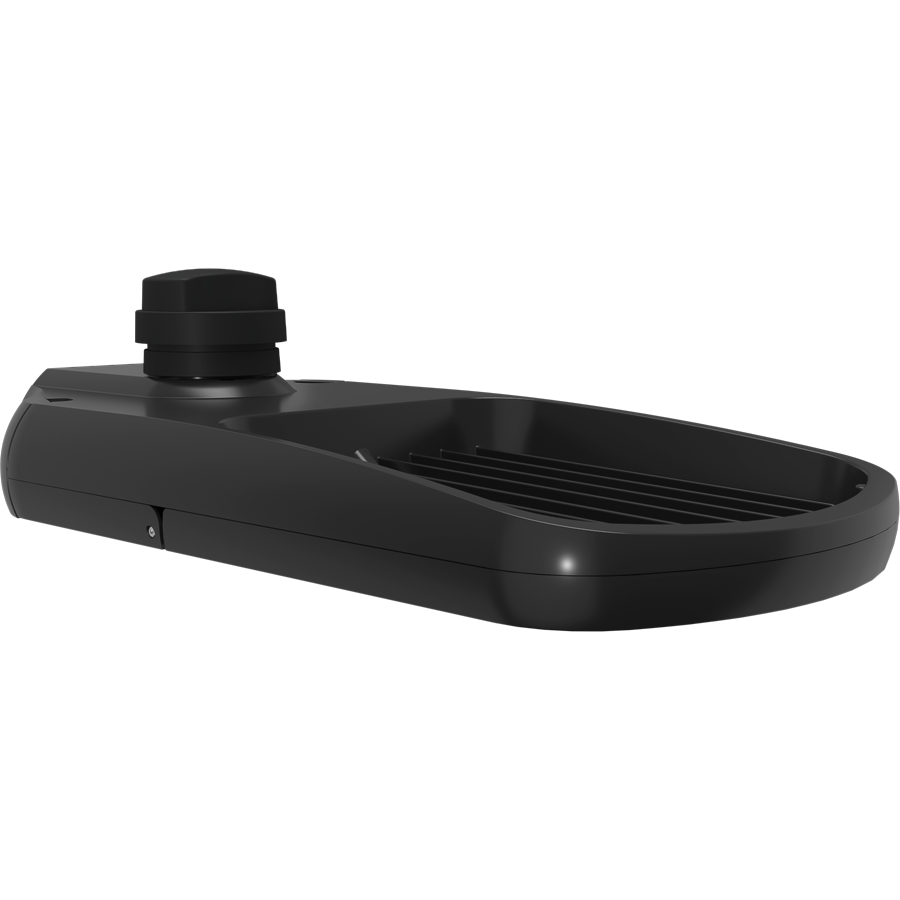

KAI-2T70/7PRS

70W 3000K/4000K/5000K

View Technical Specs

View Price & Availability

Performance

Watts	70/60/50W
Color Temp	3000K/4000K/5000K
Lumens	7043-10990 lm
Efficacy	142.2-166.4 lm/W
Color Accuracy	82-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.57A/0.46A/0.38A
208V	0.33A/0.26A/0.24A
240V	0.28A/0.23A/0.21A
277V	0.25A/0.21A/0.18A
Input Watts	46-71W

EZ-Layout

Create Custom Lighting Layout

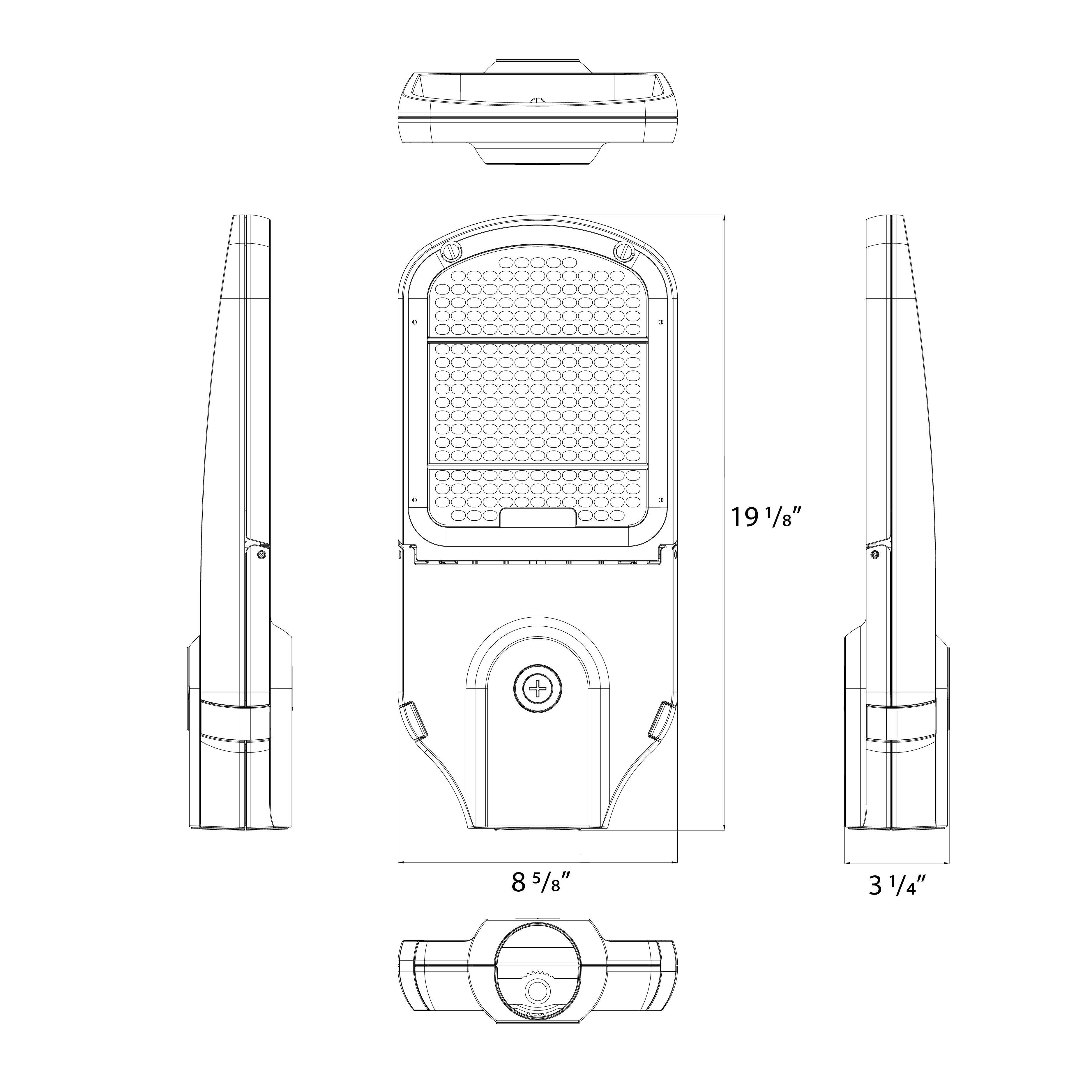

Dimensions

Weight: 6.4 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
70/60/50W (factory default 70W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

IP Rating

Ingress protection rating of IP66 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-J45HB3

Electrical

Driver

Constant Current, Class1, 120-277V, 50/60 Hz:
70W: 120V: 0.57A, 208V: 0.33A, 240V: 0.28A, 277V: 0.25A
60W: 120V: 0.46A , 208V: 0.26A, 240V: 0.23A, 277V: 0.21A
50W: 120V: 0.38A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

10 kV

Aux Power Supply

Yes

Dim to Off

Yes

Photocell

Integrated photocell included with on/off switch

7-Pin Receptacle with Shorting Cap

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

Construction

IES Classification

The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.

IK Rating

IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Die-cast aluminum

Tilt Increment

Rotates in 2.5 degree increments

Effective Projected Area

EPA = 0.37

Lens

Clear polycarbonate lens

Vibration Rating

3G vibration rating per ANSI C136.31

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Installation

Mounting

Adjustable universal pole mount

Optical

BUG Rating

70W: B2-U0-G2
60W: B2-U0-G2
50W: B2-U0-G1

Other

10-Year Limited Warranty

The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
