Performance
| Watts | 200/180/160W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 23443-30569 lm |
| Efficacy | 141-164.9 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.58A/1.43A/1.28A |
| 208V | 0.91A/0.82A/0.74A |
| 240V | 0.79A/0.71A/0.64A |
| 277V | 0.70A/0.63A/0.57A |
| Input Watts | 153.6-198.7W |

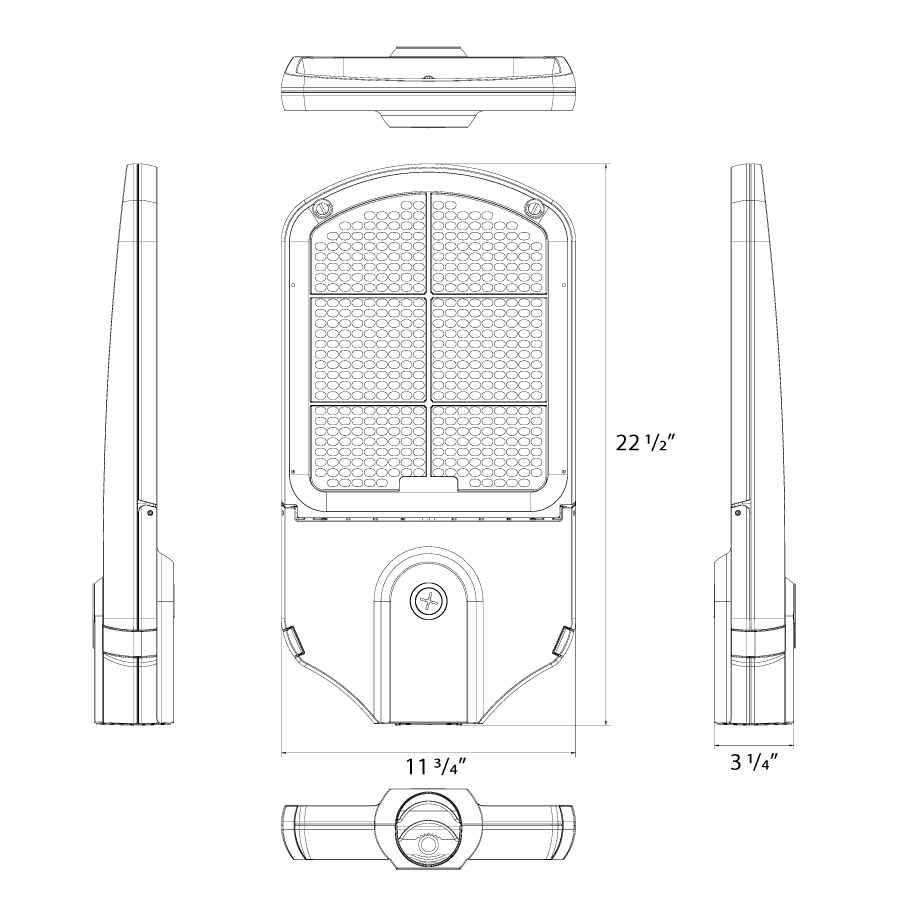

Dimensions
Weight: 9.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
200/180/160W (factory default 200W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
200/180/160W (factory default 200W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-842RRP
DLC Product Code: S-842RRP
Electrical
Driver
Constant Current, Class1, 120-277V, 50/60 Hz:
200W: 120V: 1.58A, 208V: 0.91A, 240V: 0.79A, 277V: 0.70A
180W: 120V: 1.43A , 208V: 0.82A, 240V: 0.71A, 277V: 0.63A
160W: 120V: 1.28A, 208V: 0.74A, 240V: 0.64A, 277V: 0.57A
200W: 120V: 1.58A, 208V: 0.91A, 240V: 0.79A, 277V: 0.70A
180W: 120V: 1.43A , 208V: 0.82A, 240V: 0.71A, 277V: 0.63A
160W: 120V: 1.28A, 208V: 0.74A, 240V: 0.64A, 277V: 0.57A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
10 kV
Aux Power Supply
Yes
Dim to Off
Yes
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Construction
IES Classification
The Type III distribution is ideal for roadway, general parking, and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
IK Rating
IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)

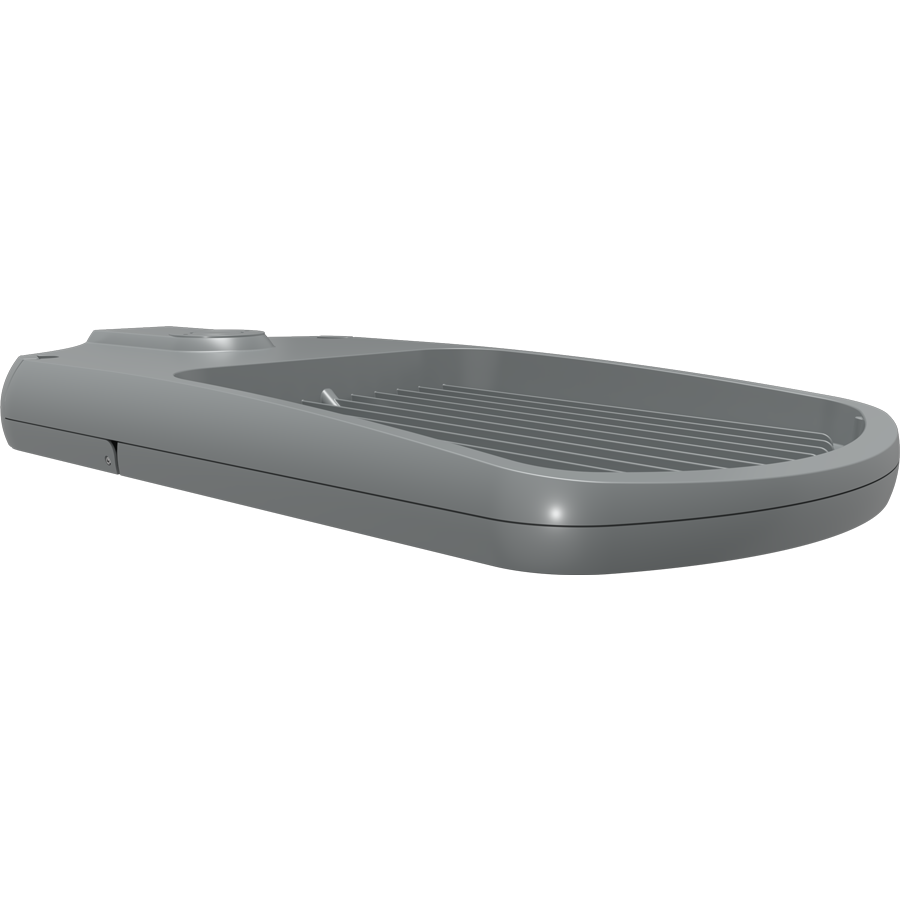

Housing
Die-cast aluminum
Tilt Increment
Rotates in 2.5 degree increments
Effective Projected Area
EPA = 0.45
Lens
Clear polycarbonate lens
Vibration Rating
3G vibration rating per ANSI C136.31
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
Adjustable universal pole mount
Optical
BUG Rating
200W: B4-U0-G3
180W: B3-U0-G3
160W: B3-U0-G3
180W: B3-U0-G3
160W: B3-U0-G3
Other
10-Year Limited Warranty
The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
