KEYPAD/LCB
- Compatible with other Lightcloud Blue lights and devices
- In-wall device with 4-button scene selector for on/off and dimming
- Customizable scenes for on/off, dimming, and color tuning
- Control up to 3 Areas with each button
- Neutral wire connection required
Dimensions
Weight: 0.3 lbs
Technical Specifications
Lightcloud
Lightcloud Blue Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.rablighting.com/feature/new-lightcloud-blue.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.
Status Indicator Light
Flashing red (1s on/1s off): Device is not provisioned
Solid green: Device is provisioned
Solid green: Device is provisioned
Performance
Product Type
4-button Scene Selector
Description
This 4-button scene selector connects to 120-277V circuit, no load required. Each button can be configured to control hundreds of lights.
Electrical
Dimming Control Type
Wireless
Load Switching Capactiy
No load. This device can only be used to control other Lightcloud Blue lights and devices.
Power Cut Off Switch
Push in to connect to line voltage.
Pull out to disconnect to line voltage.
Note: After dip switch adjustment, power device off and then power on again.
Pull out to disconnect to line voltage.
Note: After dip switch adjustment, power device off and then power on again.
Input Voltage
120-277V
Operating Frequency
60 Hz
Operating Temperature
32°F to 104°F (0°C to 40°C)
Installation
Mounting
Requires a U.S. wallbox with 2 inch depth (recommended) and a minimum depth of 1.46 inches
Application Type
Single-pole or Multi-point control
Neutral Wire Required
Yes
Construction
Shape
Rectangle
Finish
Matte White
Enclosure Material
Plastic

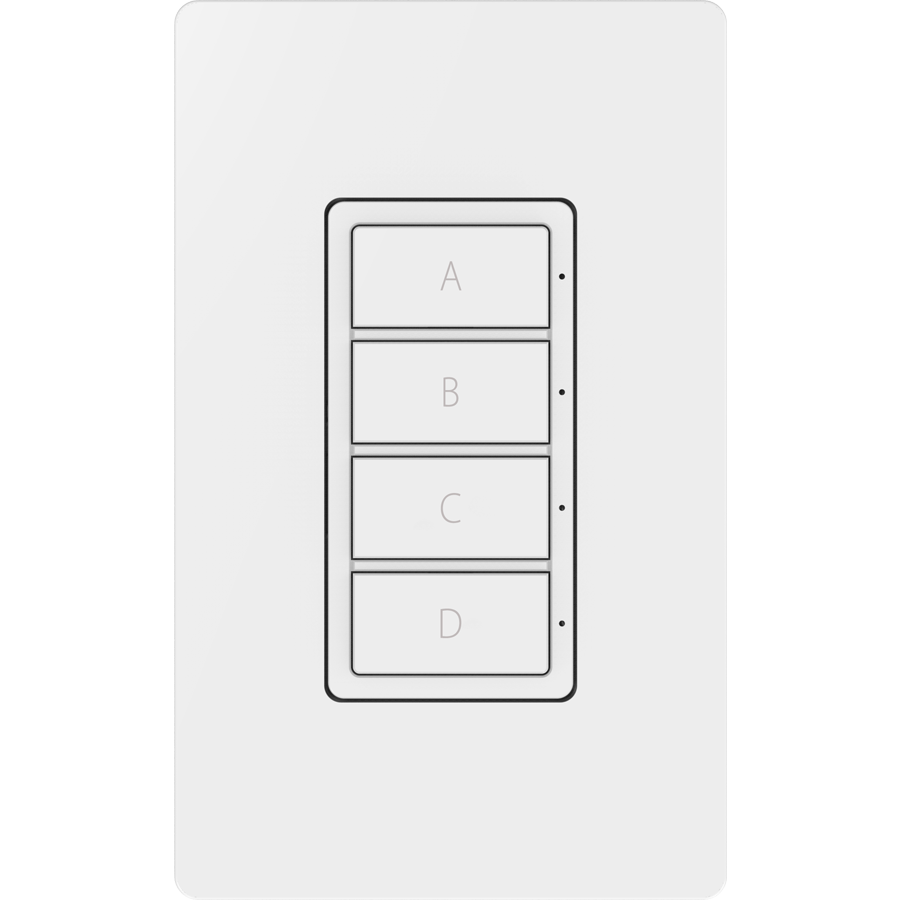

Key Type
4-button, interchangable

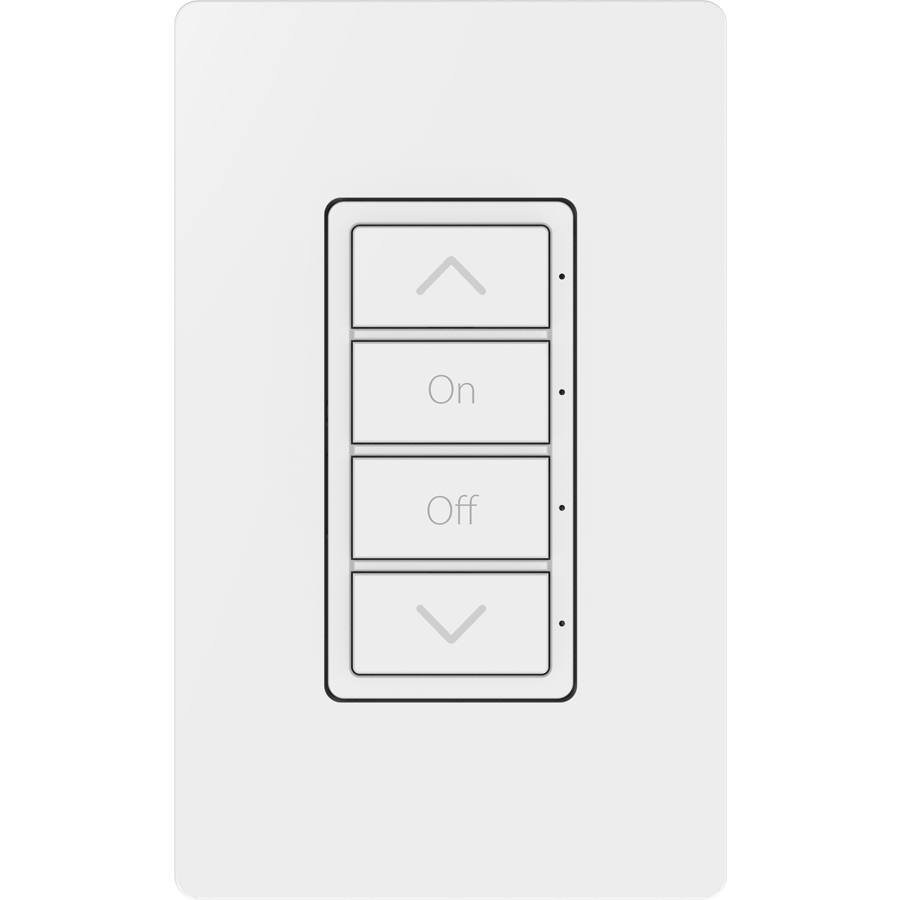

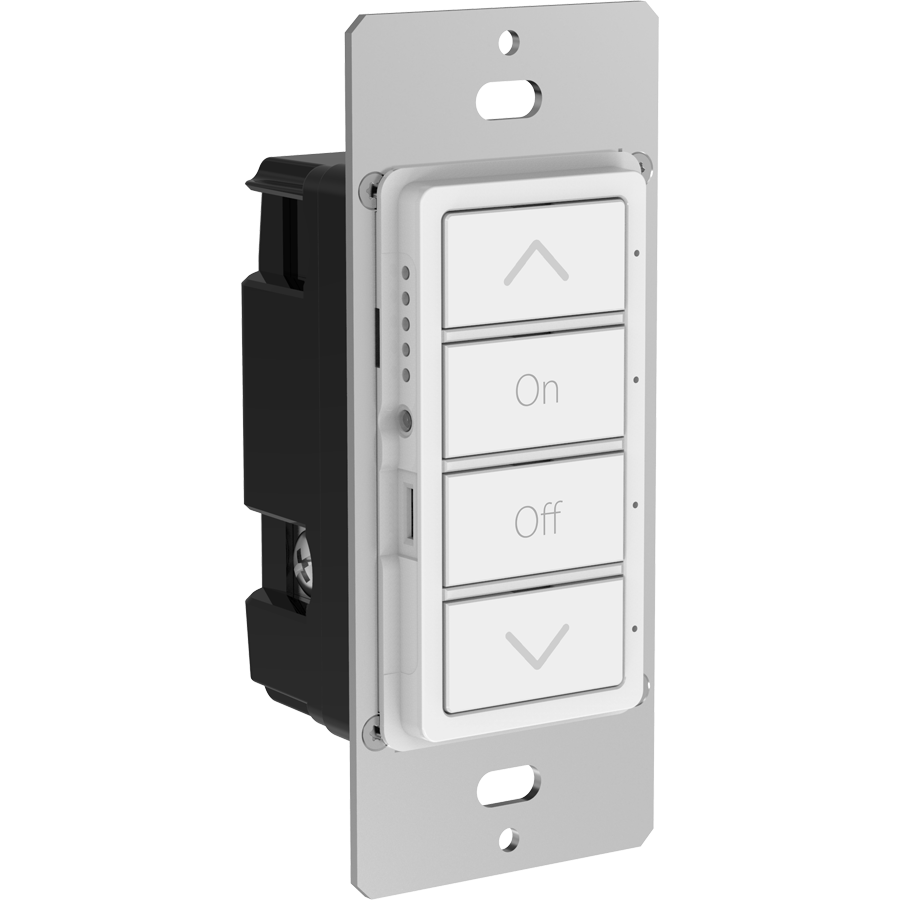

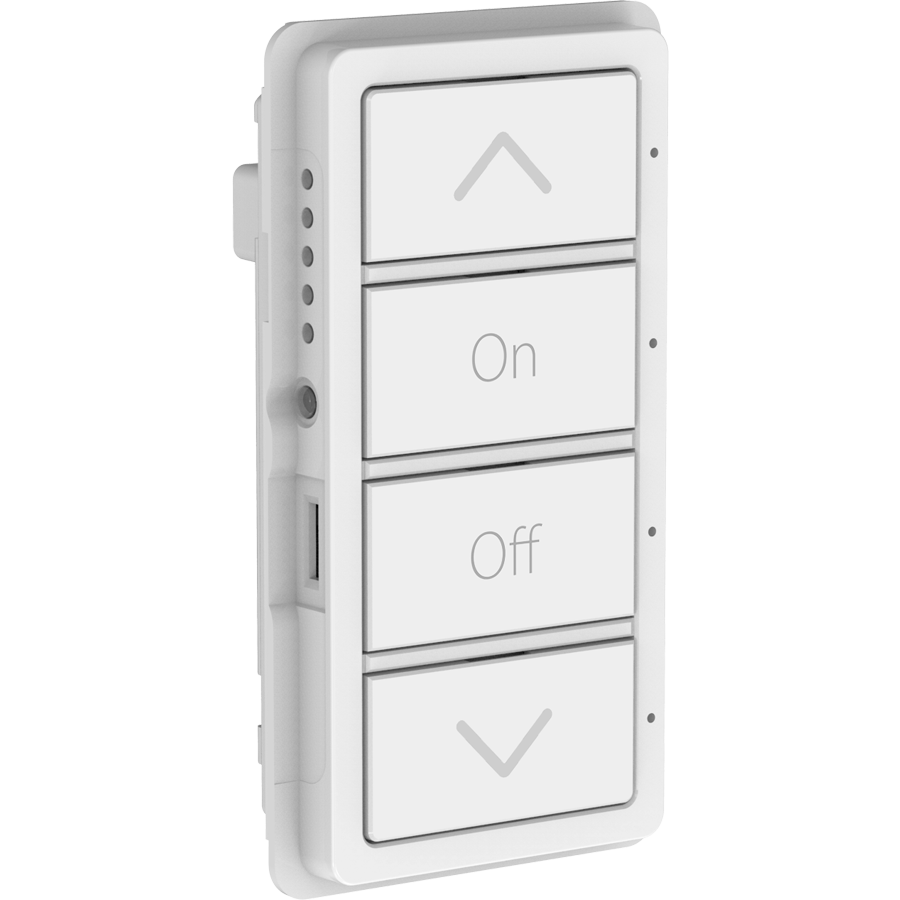

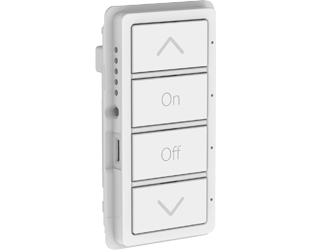

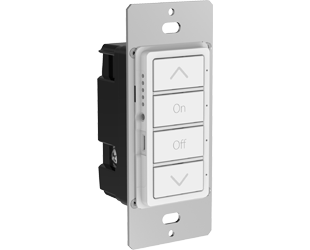

Button Functions
Default:
UP: Gradually increase brightness
ON: Turn on associated Area(s)
OFF: Turn off associated Area(s)
DOWN: Gradually decrease brightness
Button functions can be customized using the Lightcloud Blue mobile app.
UP: Gradually increase brightness
ON: Turn on associated Area(s)
OFF: Turn off associated Area(s)
DOWN: Gradually decrease brightness
Button functions can be customized using the Lightcloud Blue mobile app.
Package Includes
(1) Keypad
(1) Face plate bracket
(1) Back plate
(2) Mounting screws
(2) Set of interchangble buttons (4 buttons per set)
(1) Face plate bracket
(1) Back plate
(2) Mounting screws
(2) Set of interchangble buttons (4 buttons per set)
Compliance
Listings
UL 60730
Environment
Suitable for use indoors in dry and damp environments.
DLC NLC Listed
This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Certification Model Number
KEYPAD/LCB
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
