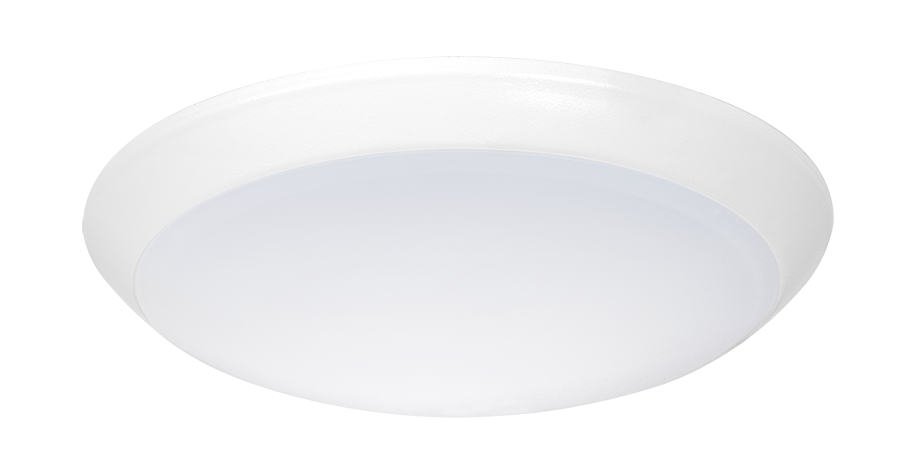

KLED6R12YYHC

Spec Sheet IES File Spec Sheet EZ Layout

KLED6R12YYHC

Quick installation, no housing required

Reduces energy costs by up to 80%

TRIAC and ELV dimmable driver

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp	2700K (Residential Warm)
Lumens	943 lm
Efficacy	77.9 lm/W
Color Accuracy	91 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.11A
208V
240V
277V
Input Watts	12.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.8 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations. For indoor use only.

Energy Star Approved

ENERGY STAR® Version 2.0 Certified

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 60W Incandescent

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 50/60 Hz, 120V: 0.11A

Dimming Driver

Compatible with ELV and TRIAC dimming at 120V.
See dimmer compatibility guide here.

THD

21.1% at 120V

Power Factor

97.1% at 120V

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Post-painted, die formed aluminum

Lens

Toolless, twist-and-lock polycarbonate diffusion lens

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Chip and fade-resistant polyester powder coat finish

Installation

Mounting

Mounts to the following junction boxes with mounting screws 3 1/2" on center: 4" octagonal, 2 1/8" deep; 4" round, 2 1/8" deep; 3 1/2" round new construction, 2 3/4" deep; 3 1/2" round remodeler, 2 5/8" deep
