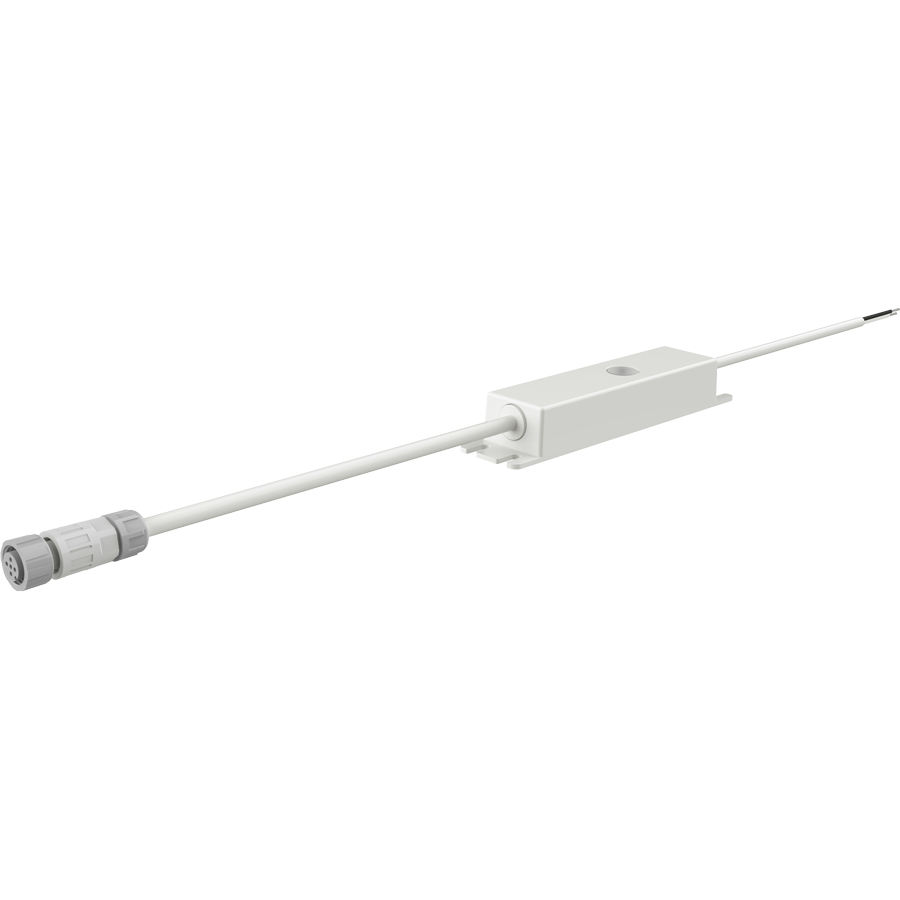

LCBLVD/RGB
LCBLVD/RGB
- Compatible with RGB models of FLEXTAPE and NEOFLEX
- Enable wireless control with Lightcloud Blue
- Easily configure Shows for dynamic, color-changing sequences
- Requires TND-96 driver
Dimensions
Weight: 0.8 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Gateway Required
No
Communication Protocol
Bluetooth Mesh
SmartShift
SmartShift-ready to easily configure lighting profiles that automatically adjust brightness and color temperature for circadian and aesthetic needs
Light Shows
Dynamic RGB light shows with customizable effects and color sequences using the Lightcloud Blue mobile app.
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners
Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Max # of Devices to Control
Max 3 reels (45 ft) of tape light (ARCTAPE, FLEXTAPE, NEOFLEX) per 1 Controller
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 3x and return to full brightness.
Method 2: Manual
Locate the reset button at the top of the Controller, illuminated with the indicator light. Press and hold this button for 10s or until the indicator light begins flashing red. If the Controller is attached to a fixture, the fixture will also flash on/off 3x.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 3x and return to full brightness.
Method 2: Manual
Locate the reset button at the top of the Controller, illuminated with the indicator light. Press and hold this button for 10s or until the indicator light begins flashing red. If the Controller is attached to a fixture, the fixture will also flash on/off 3x.
Electrical
Input Voltage
24VDC
Output Voltage
24VDC
Input Current
5A
Output Current
4A Load, 96W Max
Output Type
Constant Voltage
Operating Temperature
-22°F to 131°F (-30°C to + 55°C)
LED Characteristics
Color Temperature
Adjustable when combined with compatible Lightcloud Blue product
Color Tuning
16+ million colors when combined with compatible Lightcloud Blue product
Installation
Mounting
Included: (4) Mounting screws and (1) 3M double-sided adhesive pad
Construction
Shape
Rectangle
Finish
White
Compliance
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP66
DLC NLC Listed
This system is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
TOS/RGB
Outdoor SMD RGBW Tape Light
TNF/RGB
Outdoor Neon Flex RGBW
TND-96
96W Driver IP67 Indoor/Outdoor 120-277V
Outdoor SMD RGBW Tape Light
TNF/RGB
Outdoor Neon Flex RGBW
TND-96
96W Driver IP67 Indoor/Outdoor 120-277V
Compatible Accessories
ZDIM/LCB[S]
Wireless dimmer 120-277V
KEYPAD/LCB
4-Button Keypad scene selector
LCBLUEREMOTE/W
Wireless battery powered remote
NANO/LCB
Timekeeper, voice control, remote access
Wireless dimmer 120-277V
KEYPAD/LCB
4-Button Keypad scene selector
LCBLUEREMOTE/W
Wireless battery powered remote
NANO/LCB
Timekeeper, voice control, remote access
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
