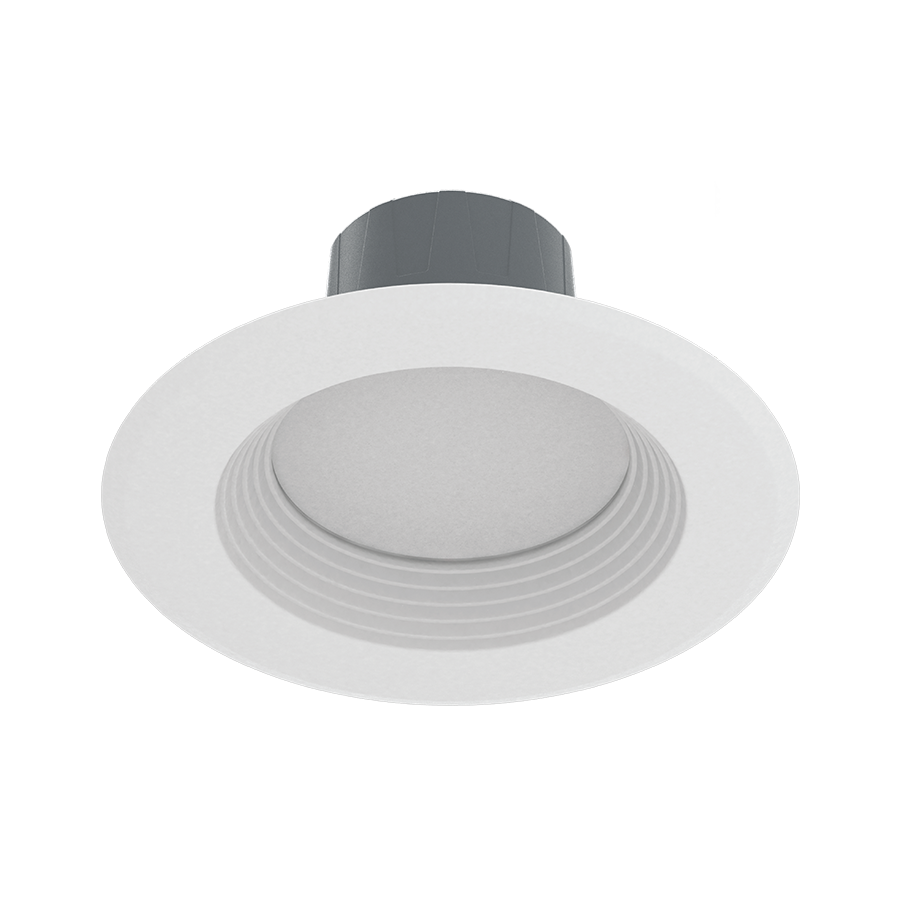

LCBR6R119TW120WB-SS-NS
LCBR6R119TW120WB-SS-NS
- Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
- Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more
- Natural Spectrum Technology mimics natural sunlight to see colors more accurately
- Tunable White 2700-6500K with smooth transition between color temperatures
- Circadian SmartShift Capable to sync with local sunrise/sunset
Performance
| Watts | 11W |
| Color Temp | 2700K-6500K |
| Lumens | 880 lm |
| Efficacy | 80 |
| Color Accuracy | 95 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 11W |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Product Type
Recessed Retrofit
Description
No Gateway or Hub required. These Bluetooth-enabled contractor grade retrofit downlights offers tunable white color tuning and Natural Spectrum Technology. Wirelessly control using a mobile phone via a Bluetooth connection.
Wattage Equivalency
75W Halogen
Input Wattage
11W
Lumens
880lm
Efficacy
80lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patent-pending Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Gateway Required
No
Communication Protocol
Bluetooth Mesh
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Range
Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction.
Up to 200 feet clear line of sight.
Up to 200 feet clear line of sight.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the downlight is online and select 'Delete'.
Method 2: Manual
Power the downlight off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The downlight will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Open the app and access the device settings for the paired device. Be sure that the downlight is online and select 'Delete'.
Method 2: Manual
Power the downlight off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The downlight will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V, 120V: 0.12A
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
120mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤5%
LED Characteristics
Color Temperature
Tunable White 2700K - 6500K
Color Accuracy (CRI)
>95 CRI
Natural Spectrum
Low blue LEDs deliver a spectrum of light similar to that of natural Sunlight. They beautifully render colors with greater than 95+ CRI and an R9 value greater than 90. In addition, these LEDs don't suppress melatonin creation which aids in promoting better sleep/wake cycles.
R9 Value
High color performance with R9 greater than 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed Housing
Base Adapter
E26 adapter included
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Baffle
Lens
Acrylic light guide distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Recognized, UL Classified
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
Suitable for direct contact with insulation
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Energy Star ID
2390211
Certification Model Number
LCBR6R119TW120WB-SS-NS
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Accessories
RFLED-RETROBAND
Retrofit Band
RFLED-GOOF-6R-8R-W
Retrofit Downlight 6" Goof Ring
DLTRIM/R6RS-BN
6" Smooth Brushed Nickel Color Trim
DLTRIM/R6RS-BRS
6" Smooth Bronze Color Trim
DLTRIM/R6RS-B
6" Smooth Black Color Trim
DLTRIM/R6RB-BN
6" Baffle Brushed Nickel Color Trim
DLTRIM/R6RB-BRZ
6" Baffle Bronze Color Trim
DLTRIM/R6RB-B
6" Baffle Black Color Trim
DRI-25-EMGR-DC
Emergency Back up Driver
Retrofit Band
RFLED-GOOF-6R-8R-W
Retrofit Downlight 6" Goof Ring
DLTRIM/R6RS-BN
6" Smooth Brushed Nickel Color Trim
DLTRIM/R6RS-BRS
6" Smooth Bronze Color Trim
DLTRIM/R6RS-B
6" Smooth Black Color Trim
DLTRIM/R6RB-BN
6" Baffle Brushed Nickel Color Trim
DLTRIM/R6RB-BRZ
6" Baffle Bronze Color Trim
DLTRIM/R6RB-B
6" Baffle Black Color Trim
DRI-25-EMGR-DC
Emergency Back up Driver
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
