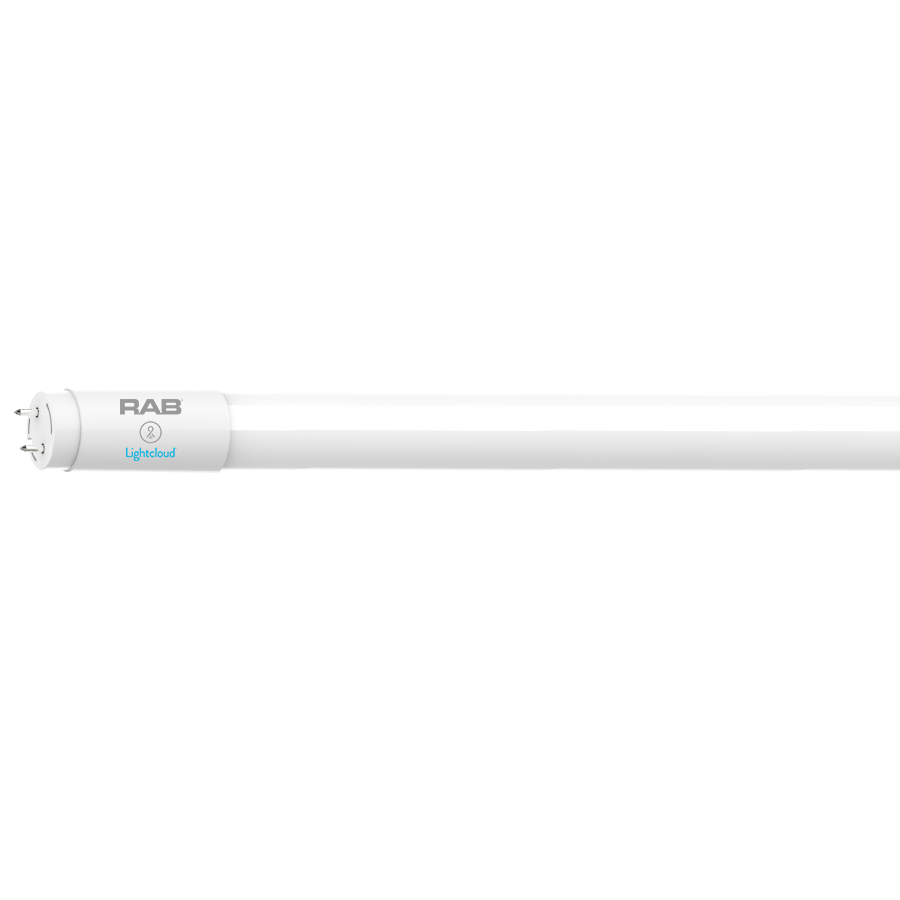

LCBT8-14-48P-8TW-DIR-SS

Spec Sheet IES File Photometrics Report Instructions Spec Sheet EZ Layout

Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required

Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more.

Easy to install plug and play linear lamp that requires no rewiring, no tools, no instructions

Tunable White 2700-6500K with smooth transition between color temperatures

Circadian SmartShift Capable to sync with local sunrise/sunset

View Technical Specs

View Price & Availability

Performance

Watts	14W
Color Temp	2700K-6500K
Lumens	2,200 lm
Efficacy	155
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	14W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

Bluetooth-Enabled T8 Type A

Input Wattage

14W

Lumens

2,200lm

Efficacy

155lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<20%

Power Factor

>0.9

Dimming

Dimmable via Lightcloud Blue mobile app

Operating Temperature

-20 to 45°C (-4°F to 113°F)

Input Voltage

120-277V

Operating Frequency

50/60Hz

Construction

Material

Plastic

Bulb Shape

Nominal Length

4 ft

Installation

Base Type

G13, Medium Bipin

LED Characteristics

Beam Angle

150°

Color Temperature

2700K-6500K

Color Accuracy (CRI)

82 CRI

Compliance

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

Certification Model Number

LCBT8-14-48P-8TW-DIR-SS

UL Listed

Suitable for damp locations

Fixture Rating

Enclosed

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
