• Connects with up to 200 Lightcloud devices
  • Communicates with Lightcloud devices via 2.4 GHz wireless mesh network
  • Cloud-based management - no software to install or maintain
  • Requires ethernet access to internet
  • Easy setup - simply power on, confirm a cellular signal and call 844-LIGHTCLOUD
View Technical Specs
Dimensions

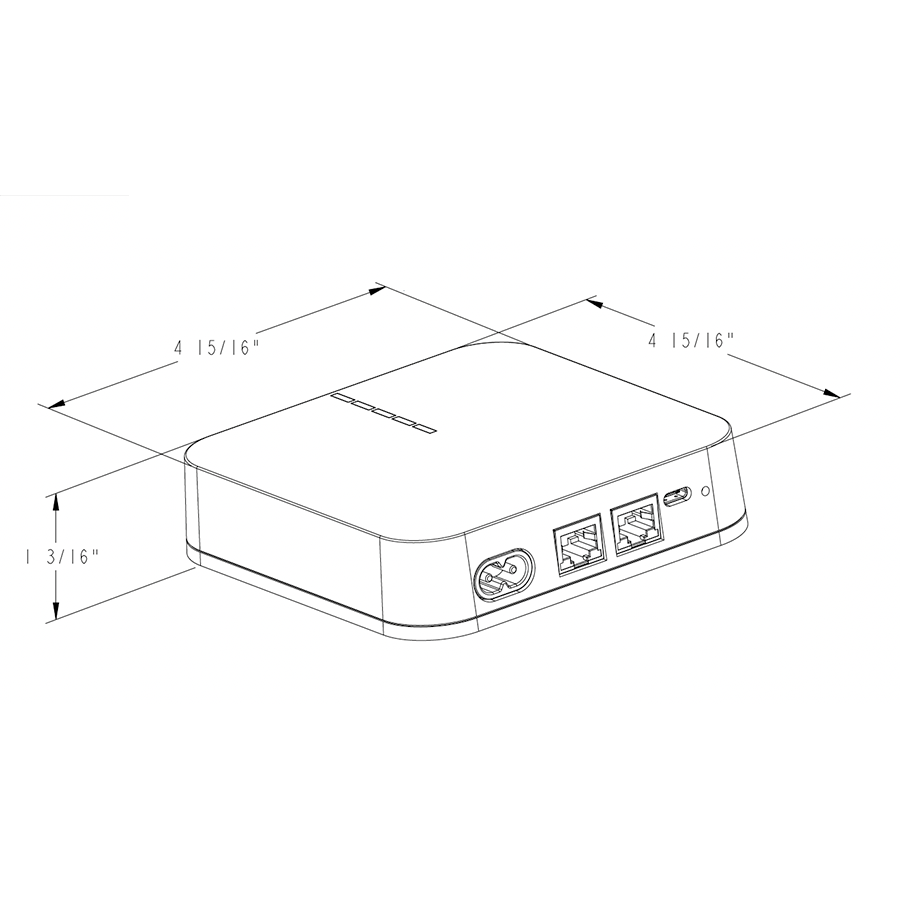

Link to Dimension Drawing

Weight: 0.3 lbs

Technical Specifications
Compliance
UL Listed
Indoor use only
Electrical
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
Only use with provided power supply.
120 VAC
Frequencies
50/60 Hz
Electrical Ratings
60 mA @ 120V
Operating Temperature Range
32°F to 104°F (0°C to 40°C)
Construction
Dimensions
4.97" X 4.97" X 1.5"
Maximum Relative Humidity
95%
Storage and Transportation Temperature
-4°F to 104°F (-20°C to 40°C)
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
