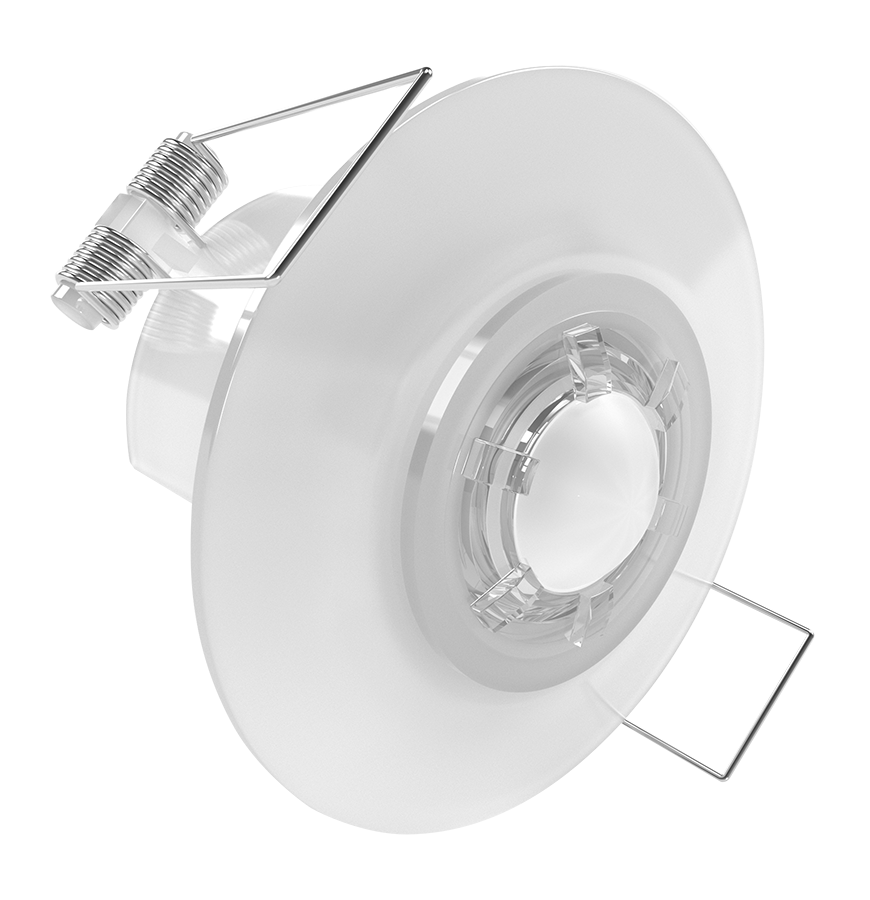

Passive infrared (PIR) motion detector

Control individual or groups of Lightcloud or Lightcloud Blue devices

Occupancy and vacancy sensing with adjustable sensitivity and timeouts

Communicates over secure wireless mesh network - no internet required

Requires compatible Lightcloud or Lightcloud Blue Controller

Dual-technology motion detector and daylight sensor that can switch and dim both local and remote circuits.

View Technical Specs

View Price & Availability

Dimensions

Technical Specifications

Performance

Product Type

Wired Sensor

Description

Passive infrared-technology standalone motion detector and daylight sensor that can switch and dim both local and remote circuites. The sensor requires a compatible Lightcloud or Lightcloud Blue Controller.

Lightcloud

Lightcloud and Lightcloud Blue are two separate wireless network lighting control platforms. Devices can be quickly and easily commissioned for residential and large commercial applications using a mobile or web app. Each device in a system can communicate with any other device for simple, wireless control.
DLC system - N1XMLOEATBA
Learn more at Ww.lightcloud.com

Gateway Required

Lightcloud: Yes
Lightcloud Blue: No

Communication Protocol

Lightcloud: Zigbee
Lightcloud Blue: Bluetooth Mesh

Range

Lightcloud: Lightcloud: Up to 100 feet between standard building materials; Up to 1,000 feet clear line of sight.
Lightcloud Blue: Lightcloud Blue: Up to 60 feet between standard building materials; Up to 200 feet clear line of sight.

Spacing Criteria

Devices should be placed within the specified range to communicate within the Bluetooh Mesh network

Electrical

Connection Type

RJ09

Input Voltage

Operating Frequency

Low Voltage

Only connect to compatible Lightcloud or Lightcloud Blue Controllers.

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Max Mounting Height

8 ft to 12 ft

Detection Range

30 ft diameter at 9 ft mounting height

Cord Length

6 ft

Sensor Settings

Default Setting

Uncommissioned State:
Sensor Status: Enabled
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off

Commissioned State:
Sensor Status: Disabled, once enabled the following default are set.
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off

Sensing Type

Occupancy or Vacancy

Occupied Actions

On or On at a Dim Level

Vacant Options

Off or On at a Dim Level

Occupancy Timeout

1 minute to 240 minutes

Daylight Sensing

The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.

Daylight Threshold

150 lux to 1500 lux

Construction

Finish

White

Lens Finish

White

Shape

Round

Enclosure Material

Plastic

Compliance

Listings

UL Listed

Environment

Ingress protection rating of IP66 for dust and water. Suitable for dry, damp, or wet environments for indoor and outdoor applications.
*IP66 only applies to sensor, not the controller it is connected to.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: N1XMLOEATBA
Learn more about Lightcloud.com.

DLC ID

N1XMLOEATBA

T20 Compliant

Not applicable

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Other

Compatible Products

LCBLUECONTROL/W
LC Blue Luminaire Controller
LCLC/K
LC 3A Controller Black
LCLC/W
LC 3A Controller White
LCCONTROL20/D10
LC 20A Controller Black
LCCONTROL20/D10/W
LC 20A Controller White
LCCONTROL/480/B
LC 480V Controller Black
LCCONTROL/480/W
LC 480V Controller White
LCCONTROL/MINI/K
LC Mini Controller Black
LCCONTROL/MINI/W
LC Mini Controller White

Warranty

10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.

Note

All values are typical (tolerance +/- 10%)

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
